Genmitsu PROVerXL 6060 Extension
Hybrid Spoilboard Installation Guide
Package List
| 7 x Aluminum & MDF Hybrid Slat | 28 x M5*16 Hex Screw |
| 28 x M5*20 T-Nut | 1 x 4mm Wrench |
| 28 x M5*8 Hex Screw | 1 x Manual |
If the frame of your PROVerXL cnc machine has the screw holes, arrange the aluminum & MDF hybrid slats and align the screw holes of the slats with the screw holes on frame, tighten them with M5*16 Hex Screws.

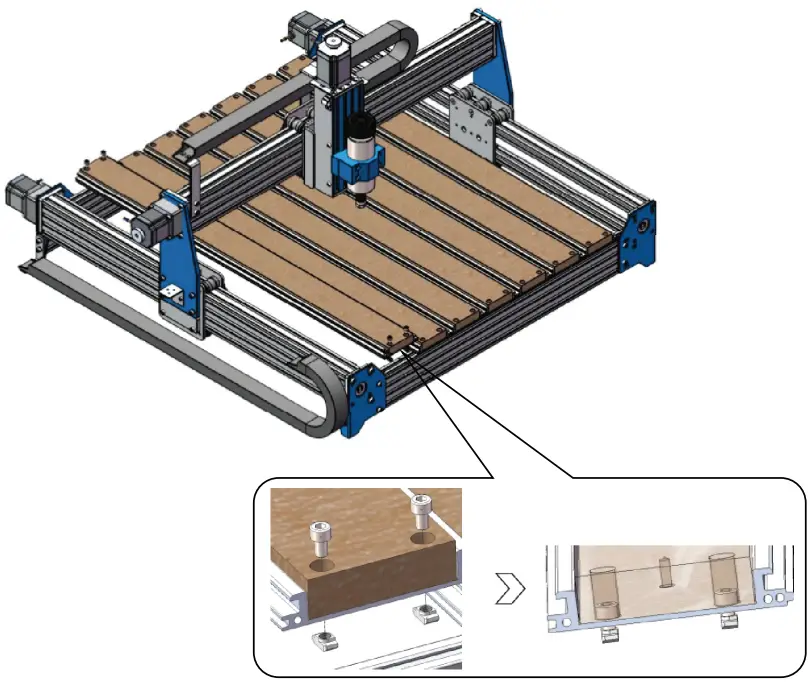

If the frame of your ROVerXL cnc machine doesn’t have the screw holes, install the M5*8 Hex Screws and M5*20 T-Nuts on each screw hole of the salts at first (don’t lock them tightly, just need to screw 2-3 turns). Then, arrange the aluminum & MDF hybrid slats on the frame of your cnc machine and make sure that the T-Nuts are inserted in the frame, then lock them tightly.
If you need any assistance, please contact us via:
Email: [email protected]
Facebook messenger: https://m.me/SainSmart
Help and support is also available from our Facebook Group
