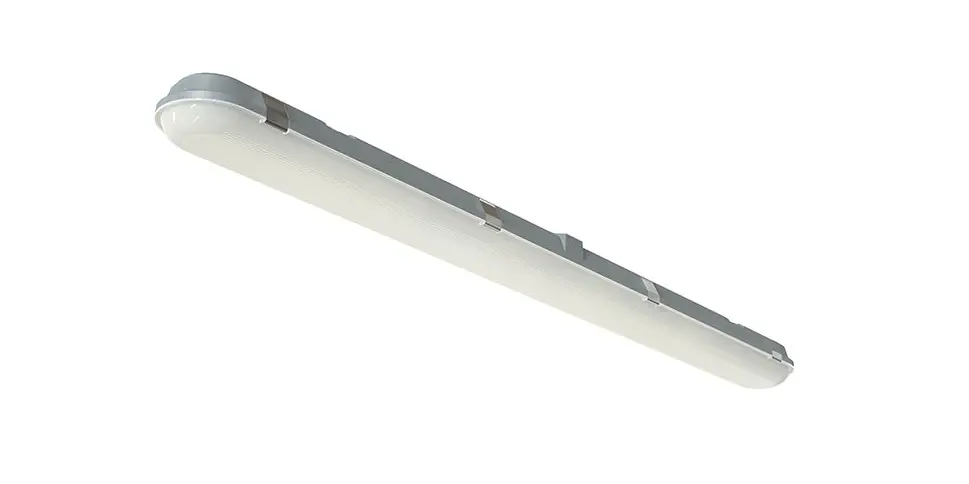

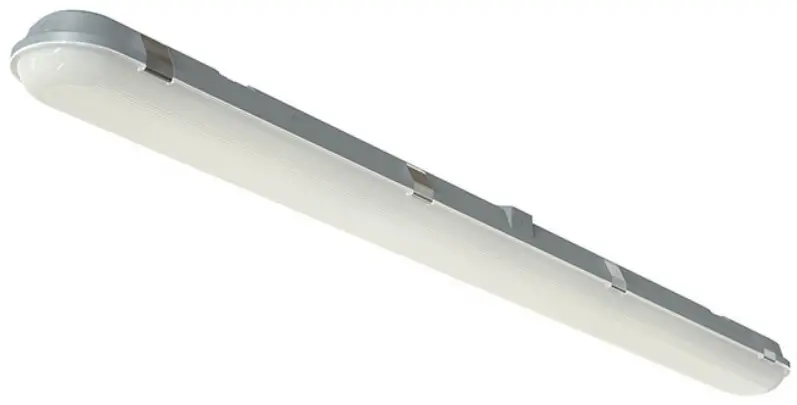

Ansell ATORPLED2X5 Tornado IP65 115W 18220lm 4000K 1565mm Non-Corrosive LED Batten Instructions
Features
Exceeds performance of standard T5 fluorescent. Ultra slim IP65 LED NCF linear. Unique base design caters for multiple installation methods. Installer friendly imbedded features aid accurate and fast installation for any application. Quick release LED array/gear tray assembly provides the installer the means to faster installation/maintenance. Fast latching/permanently located stainless steel side clips ensure a quick and secure connection. Tridonic LED driver as standard. LED lifespan L80 B10 54,000 hours.
General Information
| Lamp Type | LED |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Class Protection | 1 |
| Internal / External | Internal/External |
| Surface / Recessed / Suspended | Surface/Suspended |
| Warranty (Years) | 7 |
| CE Mark | Yes |
| Length (mm) | 1565 |
| Width (mm) | 115 |
| Height (mm) | 70 |
Technical Information
| Wattage | 61W |
| Lumens Delivered | 6314lm |
| Lm/W | 104lm |
| CRI | Ra 80 |
| CCT | 4000K |
| Input | 230V |
| Hertz | 50Hz |
| Operating Temp | -10°C to 40°C |
Technical Data – ETIM – Ceiling-/wall luminaire (EC002892)
| Suitable for wall mounting | No |
| Suitable for suspended mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for built-in mounting | No |
| Suitable for surface mounting | Yes |
| With light source | Yes |
| Material housing | Plastic |
| Colour housing | Grey |
| Material cover | Plastic, opal |
| Nominal voltage | 230-230 V |
| Control gear included | Yes |
| No dim function | Yes |
| Degree of protection (IP) | IP65 |
| Impact strength | IK07 |
| Protection class | I |
| Suitable for emergency lighting | No |
| With movement sensor | No |
| With light sensor | No |
| Max. system power | 61 W |
| Rated luminous flux acc. IEC 62722-2-1 | 6314 lm |
| Colour of light | White |
| Colour temperature | 4000-4000 K |
| Colour rendering index CRI | 80-89 |
| Luminaire efficacy | 104 lm/W |
| Width | 115 mm |
| Height/depth | 70 mm |
| Length | 1565 mm |
Datasheet generated from https://onetimepim.com last updated Monday, September 6, 2021 1:57:54 PM.
