ATORPLED2X4-M3 Ultra Slim IP65 LED NCF Linear
Owner’s Manual
Features
Exceeds performance of standard T5 fluorescent.
Ultra slim IP65 LED NCF linear.
Unique base design caters for multiple installation methods.
Installer friendly imbedded features aid accurate and fast installation for any application.
Quick release LED array/gear tray assembly provides the installer the means to faster installation/maintenance.
Fast latching/permanently located stainless steel side clips ensure a quick and secure connection.
Tridonic LED driver as standard.
LED lifespan L80 B10 54,000 hours
Self-test emergency as standard with Li-ion battery technology, reducing charge time and running costs.
General Information
| Lamp Type | LED |
| Emergency | Yes |
| Self Test | Yes |
| IP Rating | IP65 |
| IK Rating | IK07 |
| Class Protection | 1 |
| Internal / External | Internal/External |
| Surface / Recessed / Suspended | Surface/Suspended |
| Warranty (Years) | 7 |
| CE Mark | Yes |

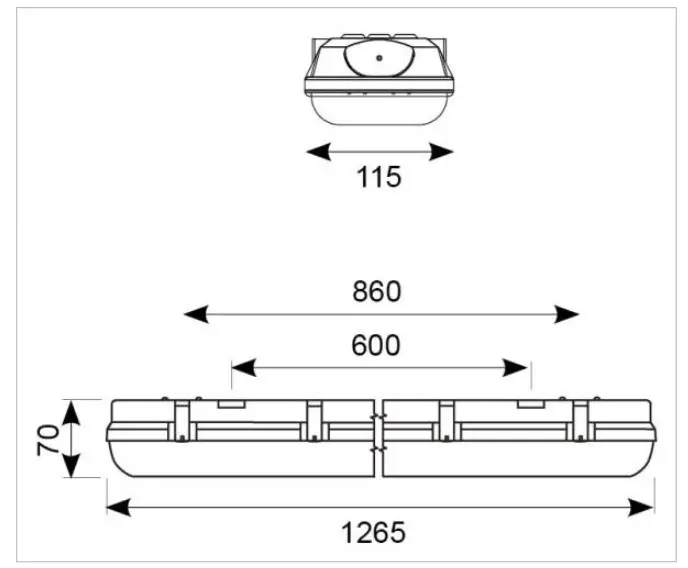

| Length (mm) | 1265 |
| Width (mm) | 115 |
| Height (mm) | 70 |
Technical Information
| Wattage | 41W |
| Lumens Delivered | 4457lm |
| Lm/W | 109lm |
| CRI | Ra 80 |
| CCT | 4000K |
| Input | 230V |
| Hertz | 50Hz |
| Operating Temp | -10°C to 40°C |
Technical Data – ETIM – Ceiling-/wall luminaire (EC002892)
| Suitable for wall mounting | No |
| Suitable for suspended mounting | Yes |
| Suitable for ceiling mounting | Yes |
| Suitable for built-in mounting | No |
| Suitable for surface mounting | Yes |
| With light source | Yes |
| Material housing | Plastic |
| Colour housing | Grey |
| Material cover | Plastic, opal |
| Nominal voltage | 230-230 V |
| Control gear included | Yes |
| No dim function | Yes |
| Degree of protection (IP) | IP65 |
| Impact strength | IK07 |
| Protection class | I |
| Suitable for emergency lighting | Yes |
| With movement sensor | No |
| With light sensor | No |
| Max. system power | 41 W |
| Rated luminous flux acc. IEC 62722-2-1 | 4457 lm |
| Colour of light | White |
| Colour temperature | 4000-4000 K |
| Colour rendering index CRI | 80-89 |
| Luminaire efficacy | 109 lm/W |
| Width | 115 mm |
| Height/depth | 70 mm |
| Length | 1265 mm |
