Installation Guide
GEH6064 | 99003695

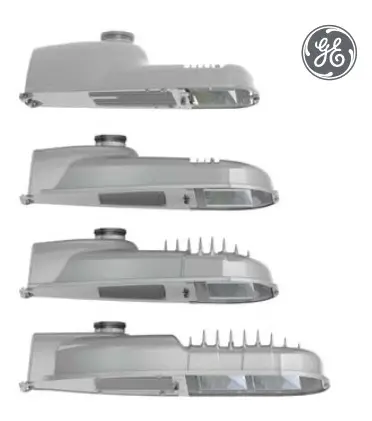

Evolve™ LED Roadway Light
(ERLC-ERL1-ERLH-ERL2)
BEFORE YOU BEGIN AVANT DE COMMENCER ANTES DE COMENZAR
RISK OF ELECTRIC SHOCK
Risk of electrical shock. Disconnect power before service installation, or maintenance of the product.
RISK OF INJURY OR DAMAGE
Unit will fall if not installed properly. Follow installation instructions.
RISK OF INJURY
Risk of electrical shock. Disconnect power before service installation, or maintenance ofthe product.
RISK OF INJURY
The luminaire should be mounted so that prolonged staring into the luminaire at a distance closer than 0.50m is not expected.

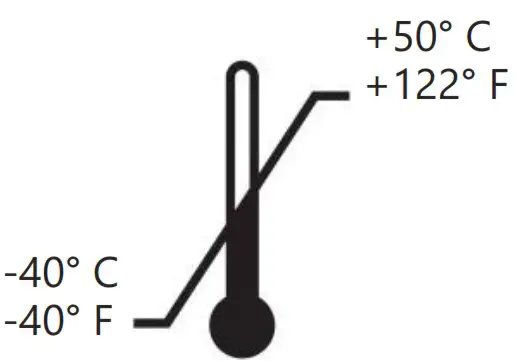

Storage & Handling
 |  |

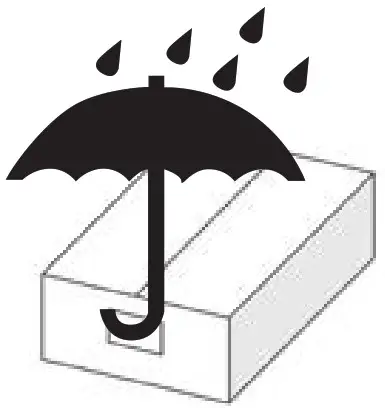

| Store packaged units in a covered dry area | |
 |  |  |

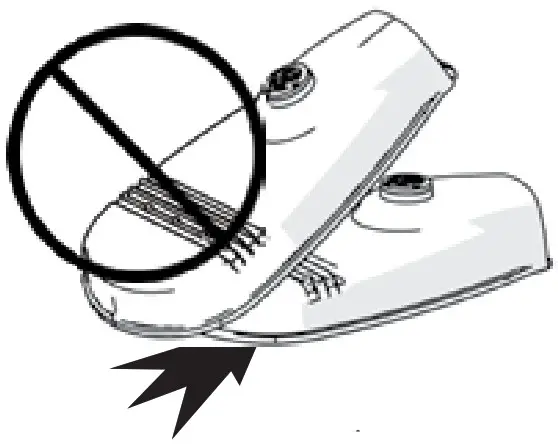

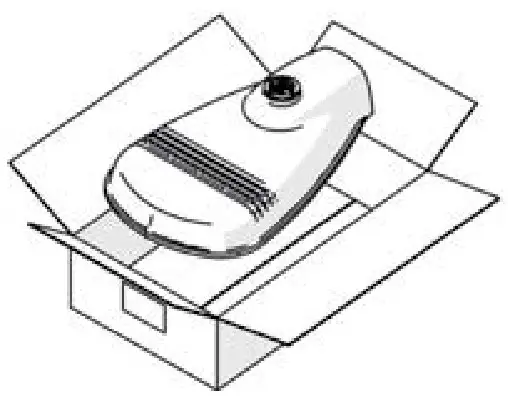

| Check for damage | Do not impact | Do not stack |
Mounting
 |  |  |

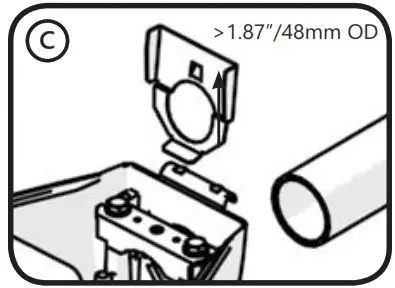

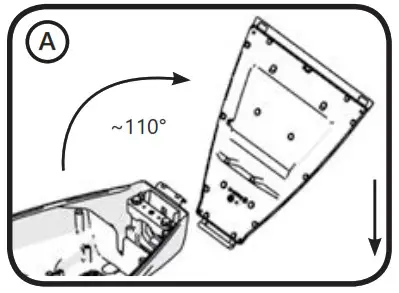

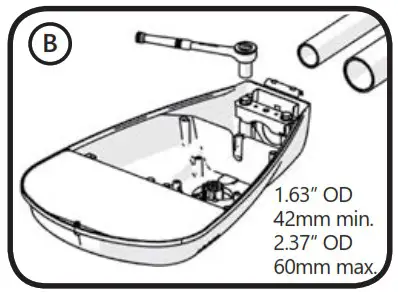

| Unless captive, unhinge and remove door. | Open clamp to pipe OD. | Remove bird shield for large pipe. |
 |  |  |

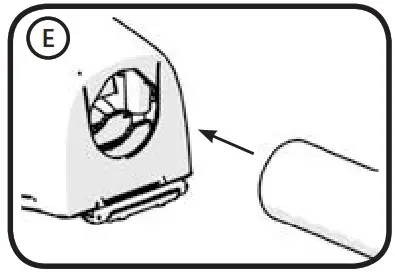

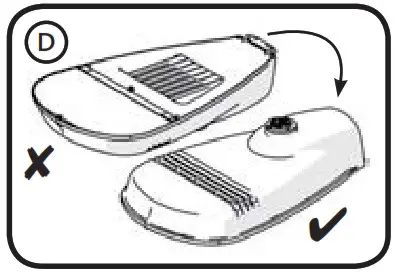

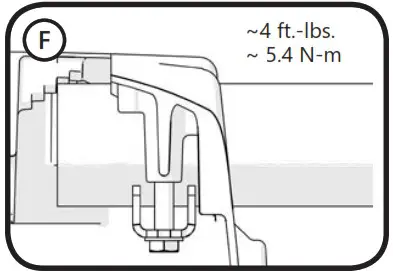

| Install with LEDs facing down. | Insert pipe thru housing. | Start pipe on middle step. |
 |  |

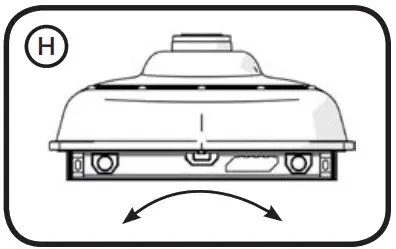

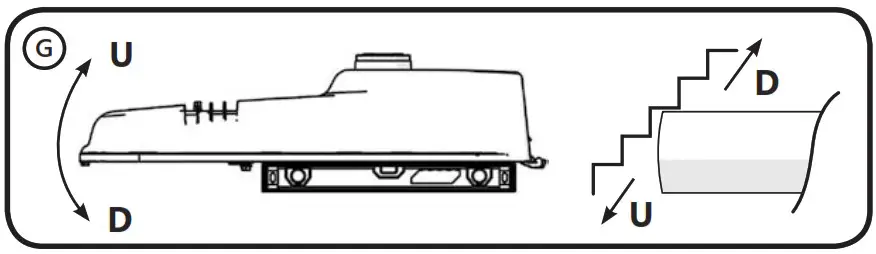

| Shift steps to level fixture front-to-back. | Rotate to level side-to-side. |

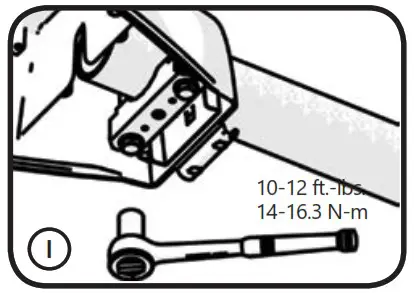

Once level, tighten bolts evenly.
RISK OF DAMAGE
Do not torque bolts greater than 12 ft-lbs. Damage may occur.
Wiring
 |  |  |

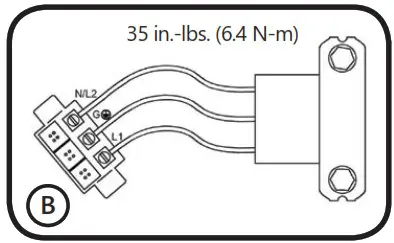

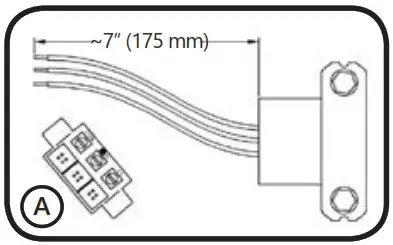

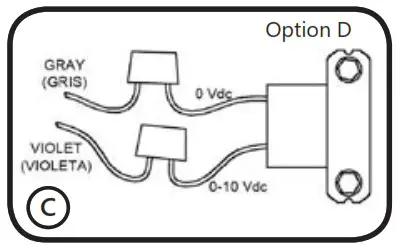

| Extend wires past pipe | Secure wires in terminal block. | Connections for wired external dimming. |
RISK OF SHOCK OR DAMAGE
Follow applicable national and local electrical codes.
RISK OF DAMAGE
Verify supply voltage and wire insulation temperature rating match nameplate requirements.
Photoelectric Control
 |  |  |

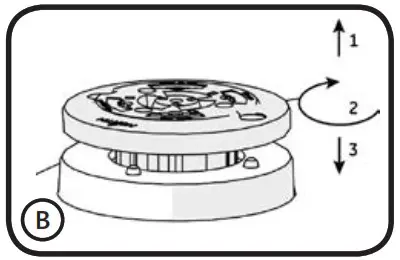

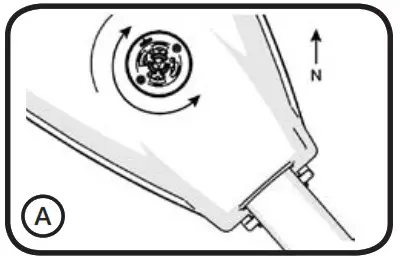

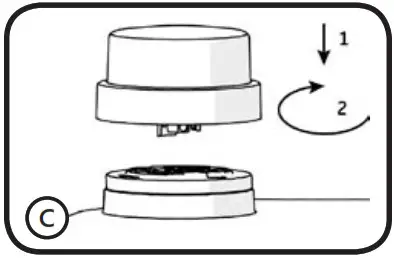

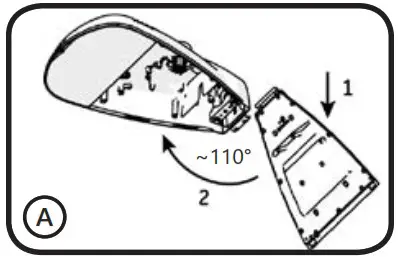

| Rotate receptacle to aim “N” to North. | Lift, rotate, release, press to seat. | Insert, twist to lock. |
Door Closing
 |  |

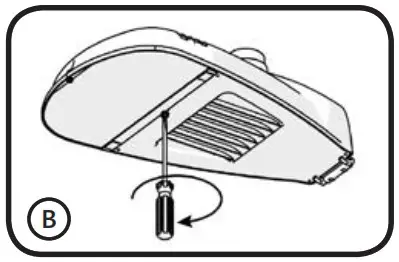

| Hang door on hinge, rotate closed. | Close and fasten door. |

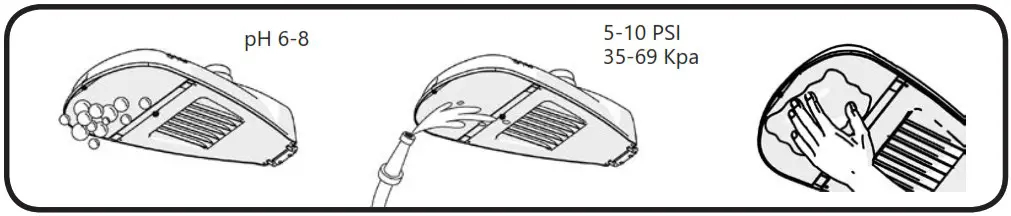

Cleaning
Use mild soap/detergent. Rinse with cool low pressure water. Wipe dry with clean soft cloth.
RISK OF DAMAGE. Do not use soap/detergent containing aromatic hydrocarbons.
Specifications
| Approx. Net Wt. | Dimensions | IP Rating | Mounting Height | Effective Projected Area | Operating Temp. | |
| ERLC | 8 lbs (3.6 kg) | 19.3 x 7.4 x 5.1 in (490x198x130 mm) | Optical: Std – IP65 Option IP66 Electrical Enclosure: Std – UL Wet Location | 27-40 ft. (8.2-12.2 m) | 0.4 ft² (0.038 m²) | -40° to/à 50°C |
| ERL1 | 15.5 lbs (7.0 kg) | 22.1 x 13.5 x 6.4 in (561x344x162 mm) | 0.5 ft² (0.033 m²) | |||
| ERLH | 15.8 lbs (7.2 kg) | |||||
| ERL2 | 24 lbs (10.9 kg) | 26.3 x 12.8 x 6.4 in (667x324x162 mm) | 0.57 ft² (0.046 m²) | -40° to/à 40°C* |
*Selected SKU’s 50°C. See Datasheet
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class [A] RFLD complies with the Canadian standard ICES-005. Ce DEFR de la classe [A] est conforme à la NMB-005 du Canada. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation, or
maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to Current?
