LED Flood Light

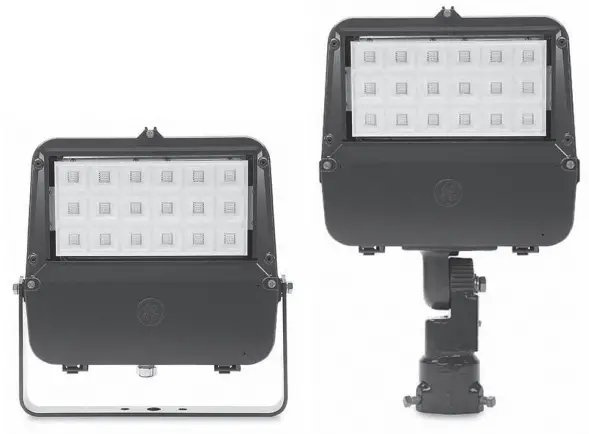

Evolve™ EFM1, EFH1
Installation Guide

Contents hide

6 Documents / Resources

6.1 References

7 Related Posts

BEFORE YOU BEGIN

Read these instructions and save for future use.

WARNING
RISK OF ELECTRIC SHOCK OR FIRE
To reduce risk of electric shock or ignition
of hazardous atmospheres, disconnect the luminaire from supply circuit before opening.Keep tightly closed when in operation.
RISK OF INJURY OR DAMAGE
Unit will fall if not installed properly. Followinstallation instructions.

CAUTION
RISK OF INJURY
Wear safety glasses and gloves during installation and servicing.
RISK OF INJURY
The luminaire should be mounted so that prolonged staring into the luminaire at a distance closer than 0.5 m is not expected.

Storage & Handling

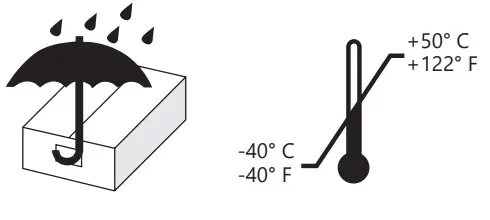

Store packaged units in a covered dry area	Check for damage	Do not impact	Do not stack

Trunnion Mount

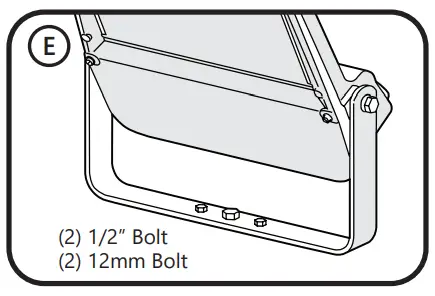

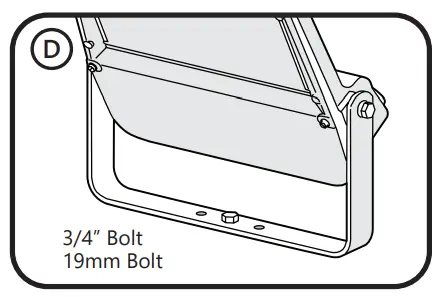

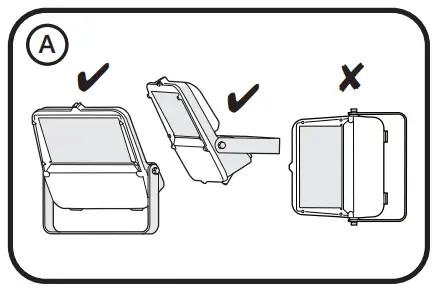

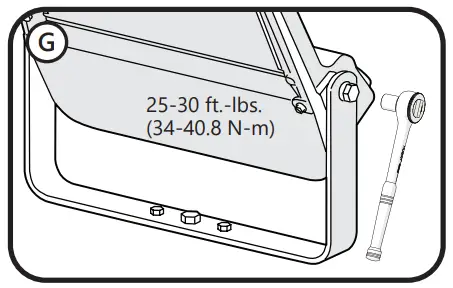

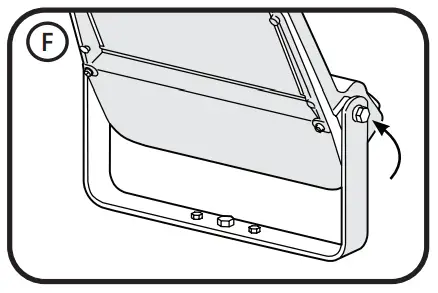

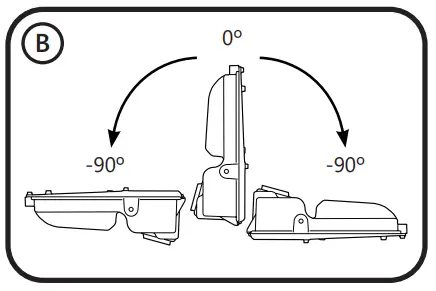

No vertical trunnion mounting on wall allowed.Allowed aiming (no photoelectric cell).Allowed aiming (with photoelectric cell).Mount to flat surface. Bolts not included.For 3G applications and mounting surface less than 16 inches, 3 bolts required. Bolts not included.Orient luminaire and secure side bolts.Once desired angle, tighten bolts evenly.

WARNING
RISK OF DAMAGE
Do not torque trunnion bolts greater than 30 ft-lbs. Damage may occur.

Knuckle Mounting

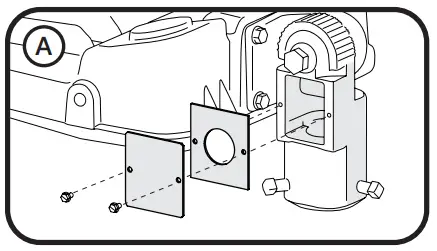

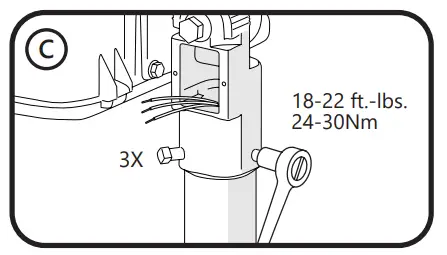

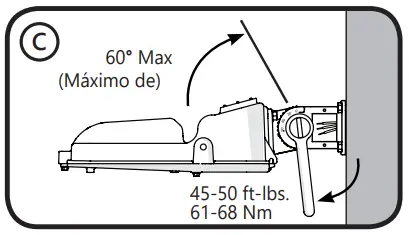

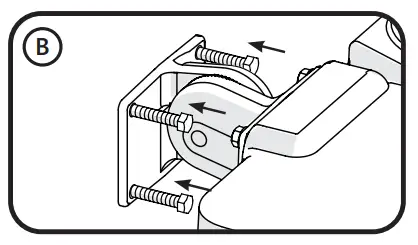

Remove wiring coverplate and gasket.	Thread wire and insert into knuckle base.	Tighen three (3) mounting bolts.	Adjust aim and tighen knuckle bolt.

WARNING
RISK OF DAMAGE

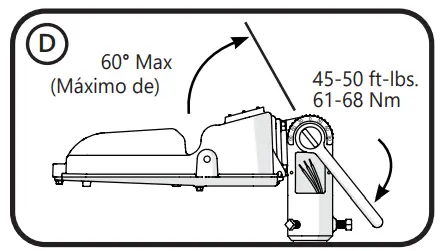

Do not torque mounting bolt greater than 22 ft-lbs and knuckle bolt greater than 50 ft-lbs. Damage may occur.

Knuckle Wall Mounting

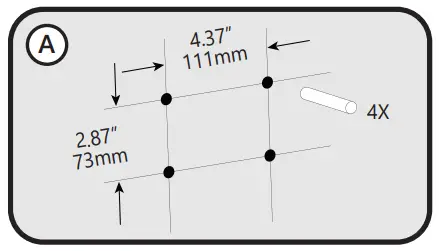

Drill mounting surface and insert 4 user- supplied anchors.	Mount with user-supplied anchor bolts.	Adjust aim and tighten knuckle bolt.

WARNING
RISK OF DAMAGE
Select user-supplied wall anchors and anchor fasteners suitable for the wall construction and the fixture’s mounting hole diameters. Ensure a minimum peranchor pull-out-strength of 10 times (10X) the fixture weight and install per themanufacturer’s instructions.

Wiring

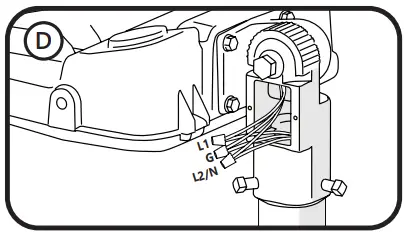

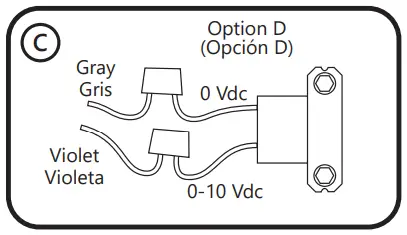

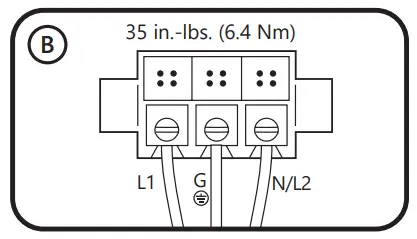

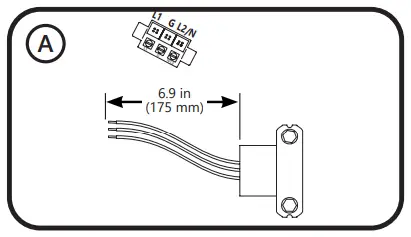

Extend wires past pipe.	Secure wires in terminal block.	Connections for wired external dimming.

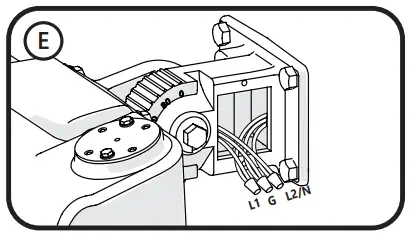

Make supply wire connections.	Make supply wire connections.	Insert wires and reinstall coverplate/gasket

CAUTION
RISK OF DAMAGE
Follow applicable national and local electrical codes.
Verify supply voltage and wire insulation temperature rating match nameplate requirements.

Door Closing

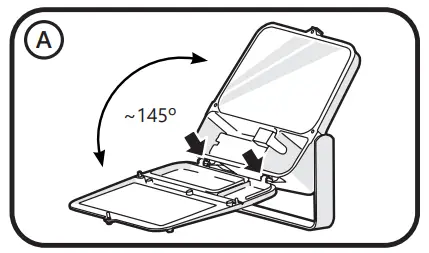

	Hang door on hinge, rotate closed.

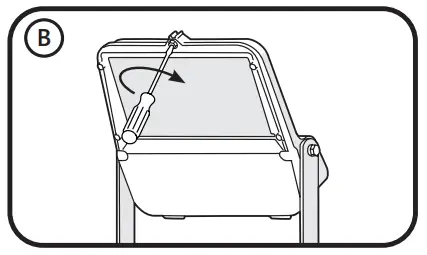

	Close and fasten door.

Cleaning

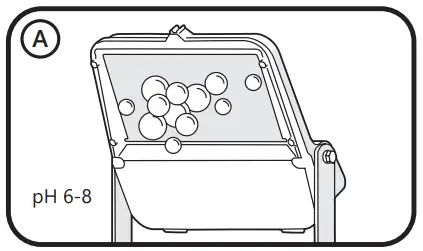

	Use mild soap/detergent.

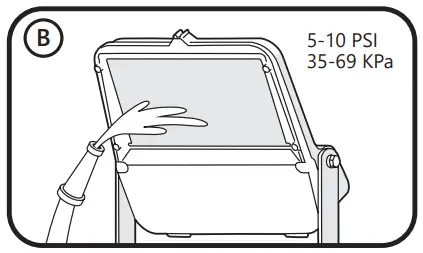

	Rinse with cool low pressure water.

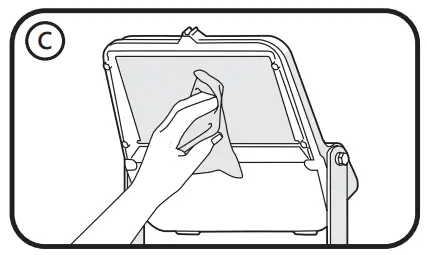

	Wipe dry with clean soft cloth.

CAUTION
RISK OF DAMAGE.
Do not use soap/detergent containing aromatic hydrocarbons.

Specification

Luminaire	Approx. Net Wt. Poids	Dimensions	IP Rating Classe IP	Effective Projected Area	Ambient Temperature
EFM1	25 lbs (11.34 kg)	17.1 x 18.57 x 5.15 in (434 x 471 x 130 mm)	IP66	1.96 ft2 (0.18 m²)	-40°C (-40°F) to 50°C (140°F)
EFH1	35 lbs (15.9 kg)	20 x 26.39 x 4.85 in (508 x 670 x 123 mm)	IP66	3.51 ft2 (0.33 m²)	-40°C (-40°F) to 50°C (140°F)

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class [A] RFLD complies with the Canadian standard ICES-005. Ce DEFR de la classe [A] est conforme àla NMB-005 du Canada. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

These instructions do not purport to cover all details or variations in equipment nor to provide for every possible contingency to be met in connection with installation, operation or maintenance. Should further information be desired or should particular problems arise which are not covered sufficiently for the purchaser’s purposes, the matter should be referred to Current.
