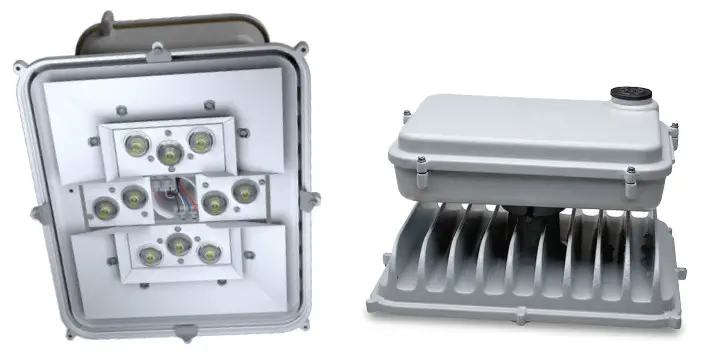

GEH6057 volve™ LED Roadway Light
Instruction Manual
BEFORE YOU BEGIN
Read these instructions and save them for future use.
WARNING
WARNING / RISK OF ELECTRIC SHOCK
Disconnect power before service installation, or maintenance of the product.
RISK OF INJURY OR DAMAGE
The unit will fall if not installed properly. Follow installation instructions.
CAUTION
RISK OF INJURY
Wear safety glasses and gloves during installation and servicing.

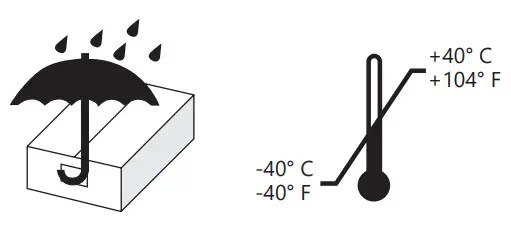

Storage & Handling
Store packaged units in a covered dry area
Check for damage
Do not impact
Do not stack
Mounting

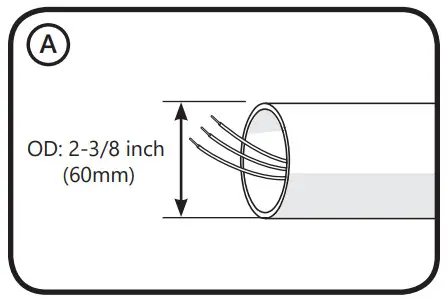

Mount on round tenon.

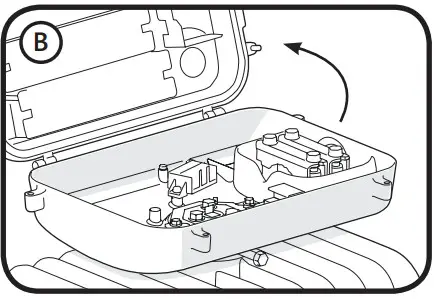

Open cover.
Open clamp to pipe OD.

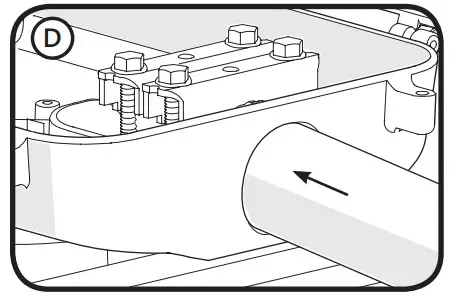

Insert pipe thru housing.

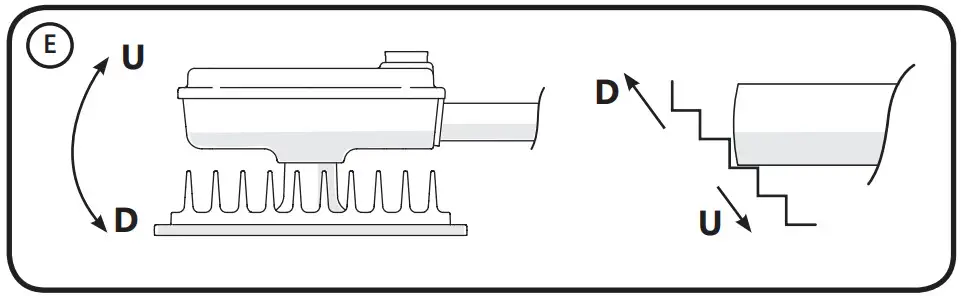

The luminaire may be tilted with respect to the pipe. Shift steps to level fixture front-to-back.

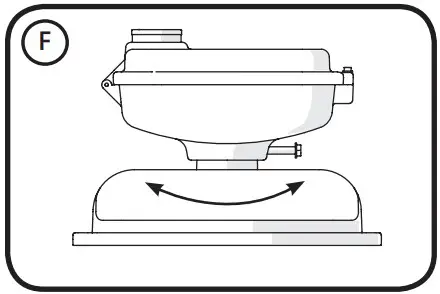

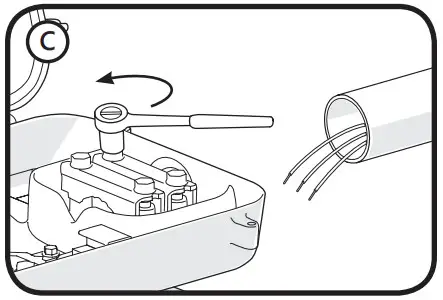

Once level, tighten bolts evenly.
WARNING
RISK OF DAMAGE
Do not torque bolts greater than 12 ft-lbs.
(16.3 Nm). Damage may occur.
Wiring
CAUTION
RISK OF SHOCK OR DAMAGE
Follow applicable national and local electrical codes.
RISK OF DAMAGE
Verify supply voltage and wire insulation temperature rating match nameplate requirements.

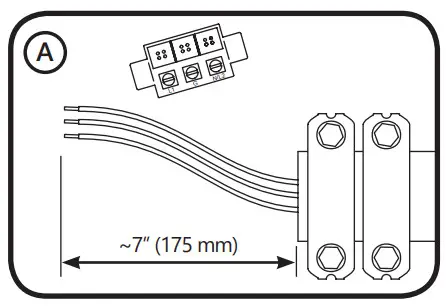

Extend wires past pipe.

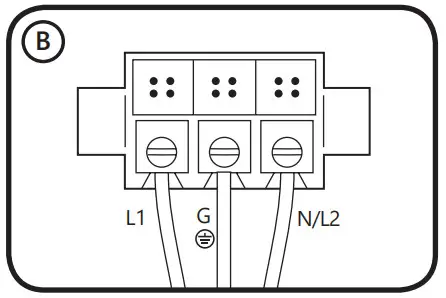

Connect leads. Torque screws per Table 1.

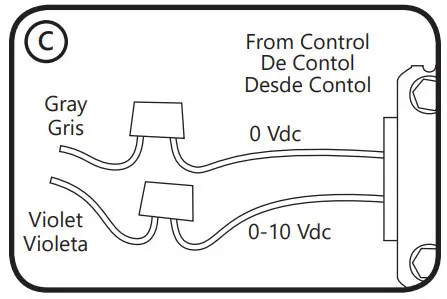

Gray Lead = 0VDC (-)
Violet Lead = Up To 10VDC (+)
| Table 1 | ||
| Cu | Al | Torque |
| 10 – 16 AWG | – | 30 |
| 8 – 6 AWG | 6 AWG | 45 |
| Dimming | ||
| Voltage | Watts | Lumens |
| <1V | ~10% of Rated | |
| >9V | 100% Rated | |
¹Linear Transition between Low and High.
² Tolerances may affect levels and linearity.
Photoelectric Control

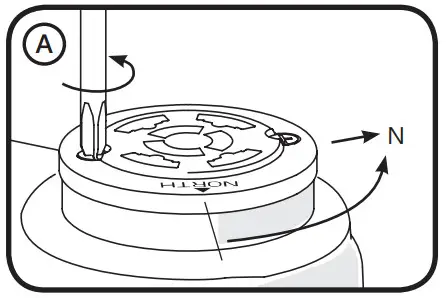

Loosen screws and aim North.

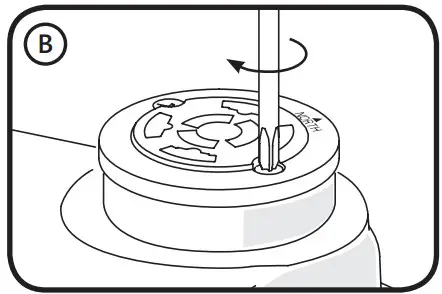

Retighten screws.

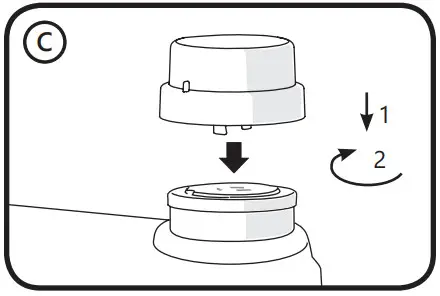

Insert PE control and twist to lock.
Final Assembly
Close cover without pinching wires.
Rotating Optics for Asymmetric Distributions

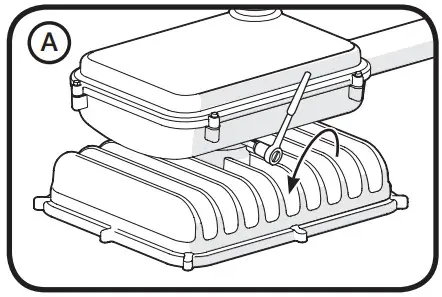

Loosen set screw.

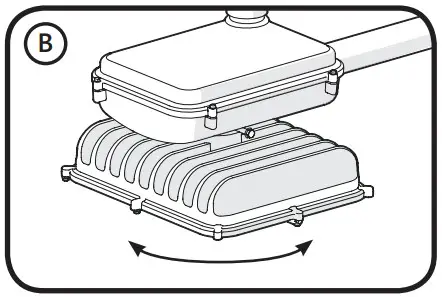

Rotate to the desired orientation.

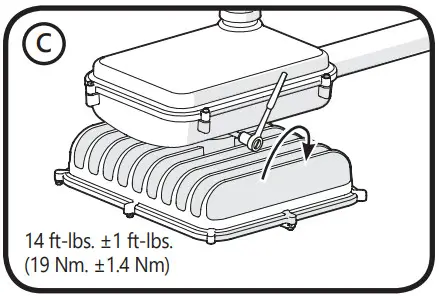

Re-tighten the set screw.
NOTE: If rotation stop is reached, reverse direction to orient in the desired direction.
Maintenance
WARNING
RISK OF ELECTRICAL SHOCK.
Make certain the power is off before attempting any maintenance.

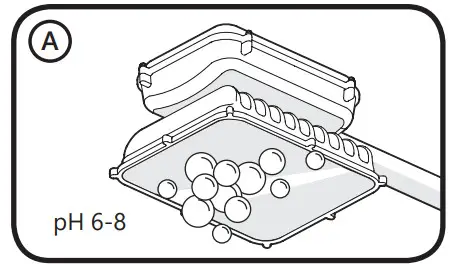

Use mild soap/detergent.

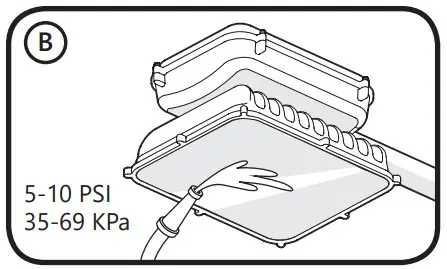

Rinse with cool low-pressure water.

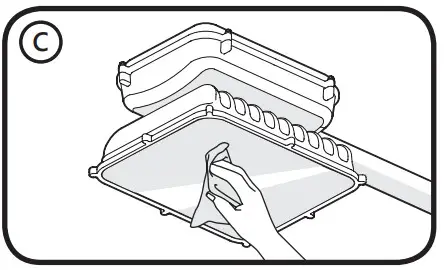

Wipe dry with a clean soft cloth.
Specifications
| Luminaire | Approx. Net Wt. | Dimensions | IP Rating | Effective Projected Area | Operating Temp. |
| ERHM | 52 lbs (23.6 kg) | 18.8 in. (479 mm) x 15.8 in. (402mm) x 12.3 in. (313 mm) | IP66 | 2 ft² (max.) | -40°C to +40°C |
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class [A] RFLD complies with the Canadian standard ICES-005. Ce DEFR de la classe [A] est conforme à la NMB-005 du Canada. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
GE current
a Daintree company
© 2021 Current Lighting Solutions, LLC. All rights reserved. GE and the GE monogram are trademarks of the General Electric Company and are used under license. Information provided is subject to change without notice. All values are design or typical values when measured under laboratory conditions.
