tsticks GRS Push and Pull Spinner V2
What is included

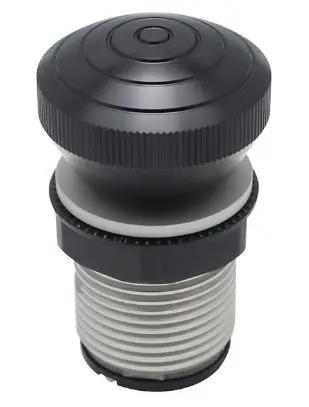

GRS Push & Pull Spinner V2 (TS-DOT-02)

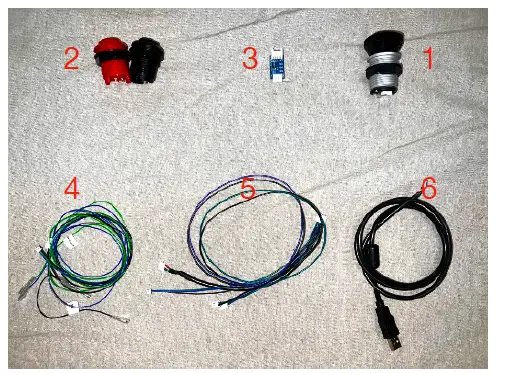

- GRS Push & Pull Spinner (Model Name: TS-DOT-02) X 1
- Gold leaf arcade buttons X 2
- Push button IO conversion board X 1
- Wiring harness for scroll up and scroll down buttons X 1
- Wiring harness for push button IO functionality X 1
- USB cable

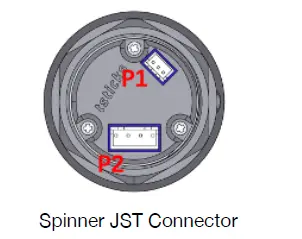

Spinner JST Connector
- Use the wiring harness for scroll up and scroll down buttons
- Make sure the button output mode is “Disable”

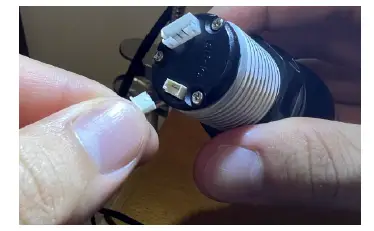

- Connect the wiring harness for scroll buttons JST side to the spinner P1

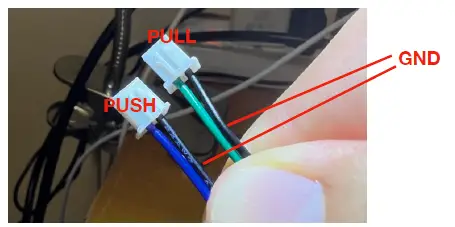

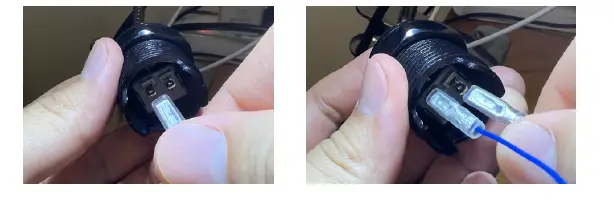

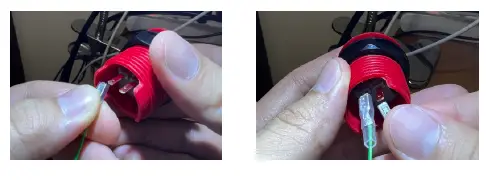

- Hook up the green (Signal) wire and black (GND) wire for scroll down button
- Hook up the blue (Signal) wire and black (GND) wire for scroll up button

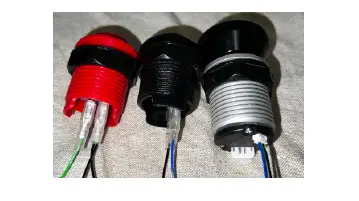

- You should see something like this if everything has been connected correctly

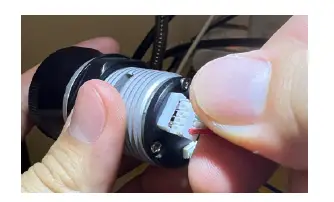

- Now hook up the USB cable JST side to the spinner P2
- Finally connect the USB cable to your device, GAME ON!
Spinner JST Connector
- Make sure the button output mode is “Enabled”

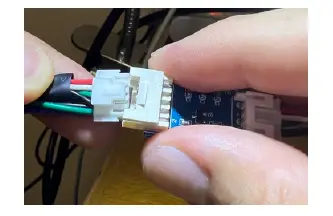

- Connect the USB wiring harness JST side with the conversion board
- Connect Wiring harness for push button larger JST side with the other side of the conversion board
- Now hook up the wiring harness for push button IO larger JST connector with P2 on the spinner
- Hook up the smaller connector from wiring harness for push button with P1 on the spinner
- Setup is completed you can now connect these two JST 2.54 connector for push and pull button with your external encoder board
- Finally connect the USB cable to your device, GAME ON!
GRS Spinner Configuration Tool
(For TS-DOT-02 and TS-BSP-02 and above version only)

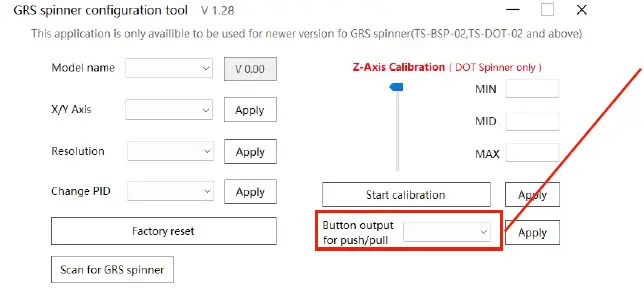

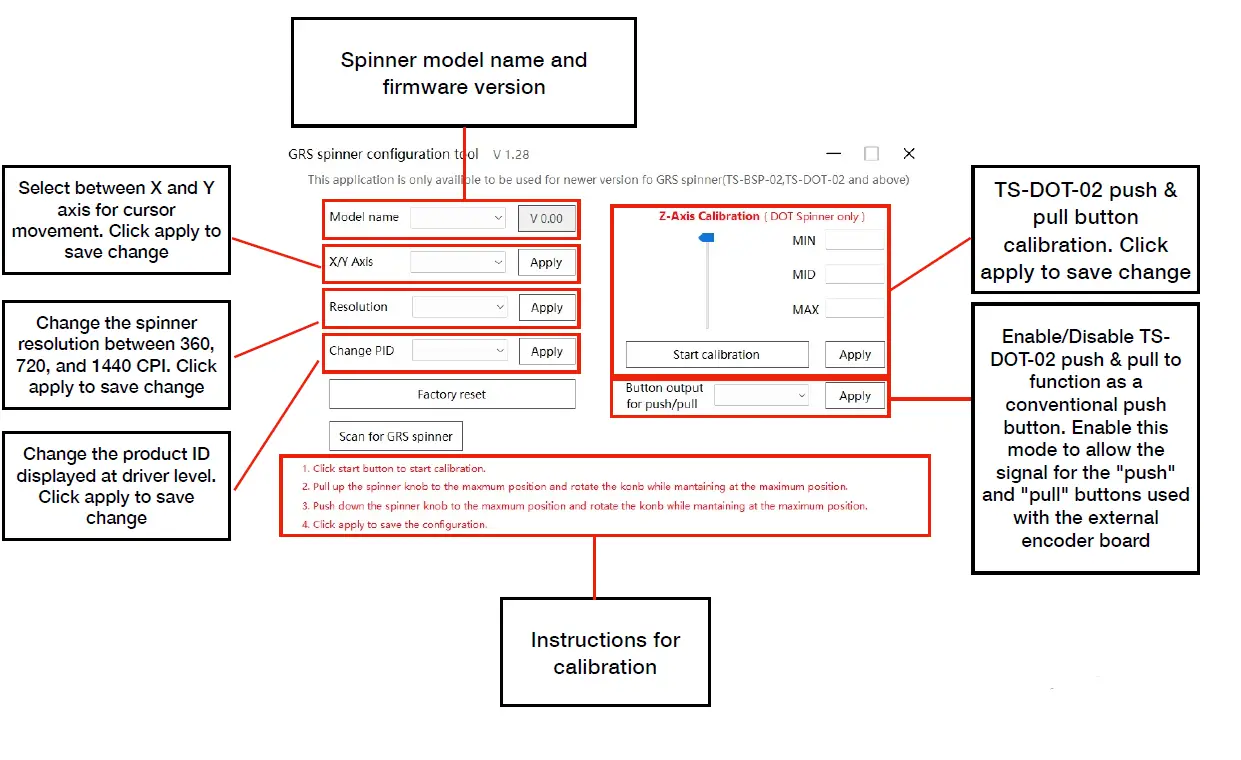

Features of GRS Spinner Configuration Tool
- Configurability for spinner cursor movement between X and Y Axis
- Configurable resolution between 3 different preset CPIs: 360, 720, and 1440
- Ability to append an ID to the spinner driver’s name

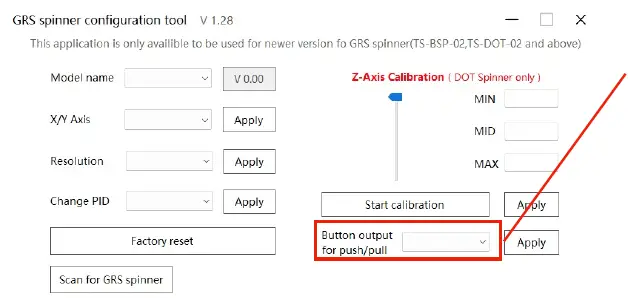

- Ability to enable push and pull function as a standard button IO signal
- TS-DOT-02 or above “Push” and “Pull” button calibration
- Download here
(For TS-DOT-02 and TS-BSP-02 and above version only)
