NOTIFIER NBG-10 Series Manual Pull Station Instructions

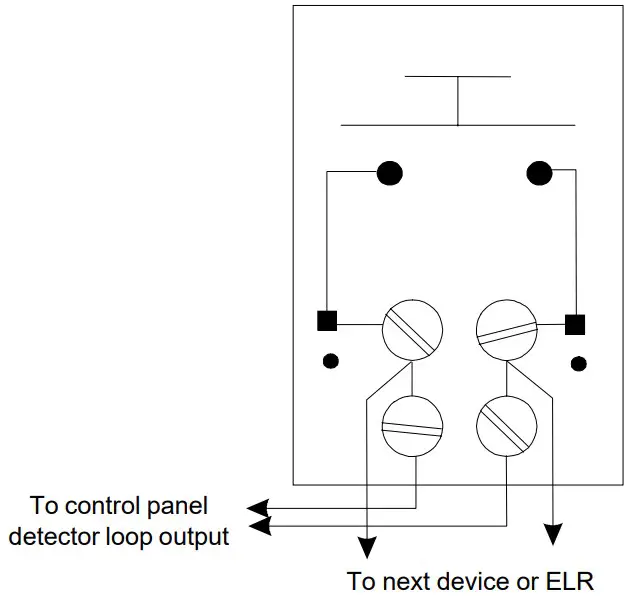

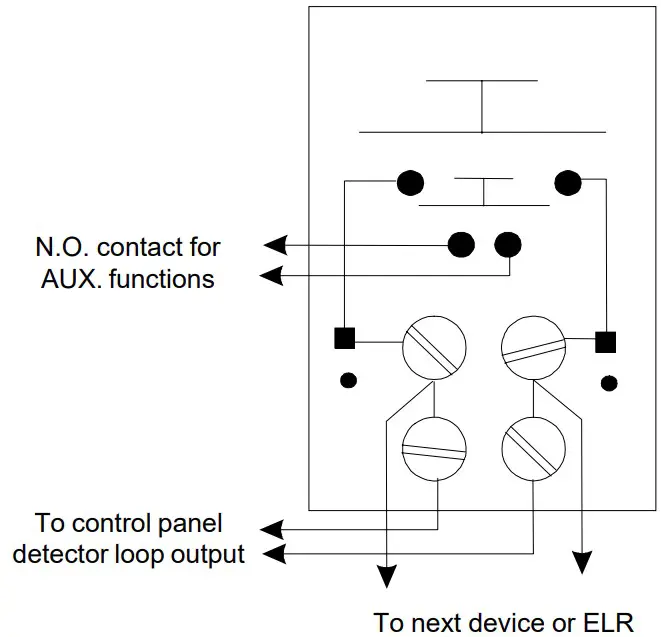

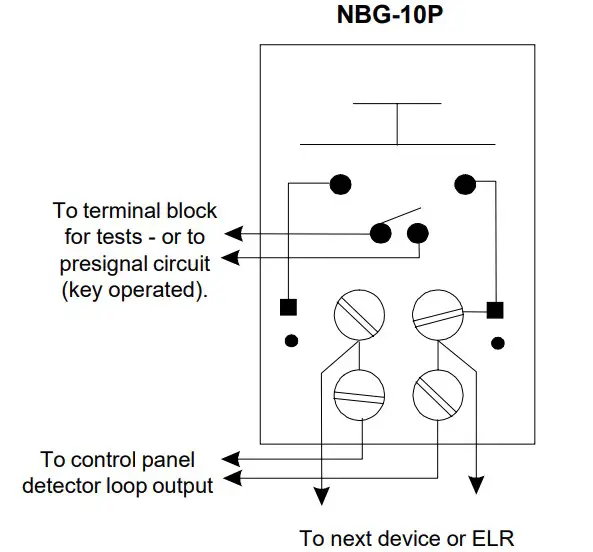

Installation Drawing
Note: The switch rating is 3 amps @ 30 Volts AC/DC
- Denotes solder connection
NBG-10, NBG-10L, NBG-10WP, NBG-10SP, NAR-10
Description
The NBG-10 Series is a non-coded, dual-action, normally-open manual pull station with the following options: NBG10A (with AUX. switch); NBG-10L (with key for reset); NBG-10P (with key for presignal or test); NBG-10N (without terminal block); NBG-10WP (BG-10 enclosed in a weatherproof backbox).
NBG-10 Series Operation
When the dual-action door is pushed in and the handle pulled down, the N.O. push-type switches will close. The handle cannot be restored to its normal position until the station is manually reset by unscrewing the hex screw and pivoting the case downward, away from the backplate. When the handle is restored, return the case to its normal position and secure with the hex screw. Note: The NBG-10L utilizes a mechanical key instead of a hex screw. The microswitch of the NBG-10P/T is activated by rotating a key clockwise. The key cannot be removed while in this position.
