Closetmaid 3304740 Single Wood Shelf Kit Instruction Manual

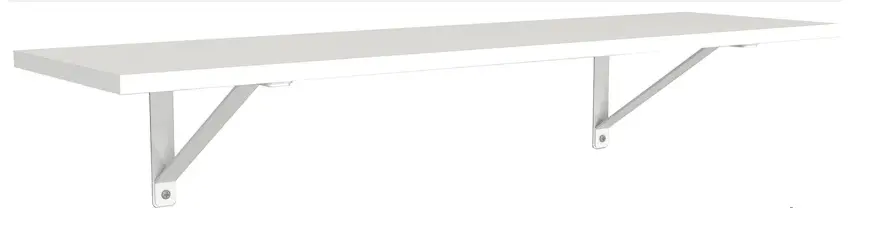

ClosetMaid 3304740 Single Wood Shelf Kit

INSTALLATION INSTRUCTION

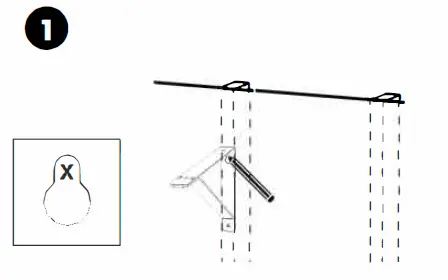

1. Place bracket at desired height and mark where the top screw of the bracket will go with a pencil

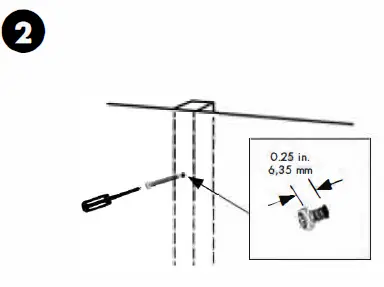

2. Drive a #8 x 1.25 in. screw into the wall at the marked location until the head is about 0.25 in. from the wall. Slide the bracket onto top screw

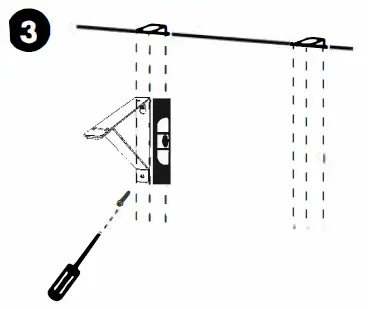

3. Using a level, ensure bracket is straight and drive another #8 x 1.25 in. screw through the bottom hole of the bracket. Tighten the top screw. Repeat steps 2 – 3 for additional brackets

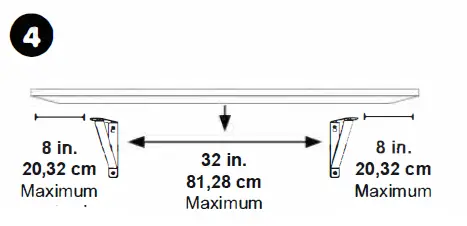

4. Place the shelf on top of the brackets
5. Once in position, drive a #8 x 0.625 in. screw into the shelf using a screwdrivier.
