004995
WALL SHELF
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions),
SAFETY INSTRUCTIONS
Read the operating instructions carefully before use.
Save them for future reference.
WARNING!
- Do not exceed the permitted maximum load — risk of serious personal injury and/or material damage.
- The fasteners must be fastened according to the specifications in the operating instructions. Incorrect installation can result in personal injury and/or material damage.
- Safety equipment and suitable tools must be used. The product must only be installed by qualified personnel.
- This product has been designed for installation on walls with wooden studs, concrete walls, or brick walls.
- Check that the wall can support the weight of the bracket and the appliance.
- Tighten the screws firmly, but not too hard — risk of material damage.
- This product contains small parts that can result in a risk of suffocation if swallowed. Keep these parts out of the reach of children.
- The product is only intended for indoor use. Using it outdoors can result personal injury and/or material damage.
IMPORTANT:
- Check that you have all the parts in the list. Contact Jula’s Customer Services if any parts are missing or damaged.
- Check at least every 3 months that the bracket is properly installed.
SYMBOLS
| Read the instructions |
TECHNICAL DATA
| Maximum weight | 2×8 kg |
| Weight | 2.9 kg |
| Width | 360 mm |
| Height | 402 mm |
INSTALLATION
FIG. 1
FIG. 2
FIG. 3

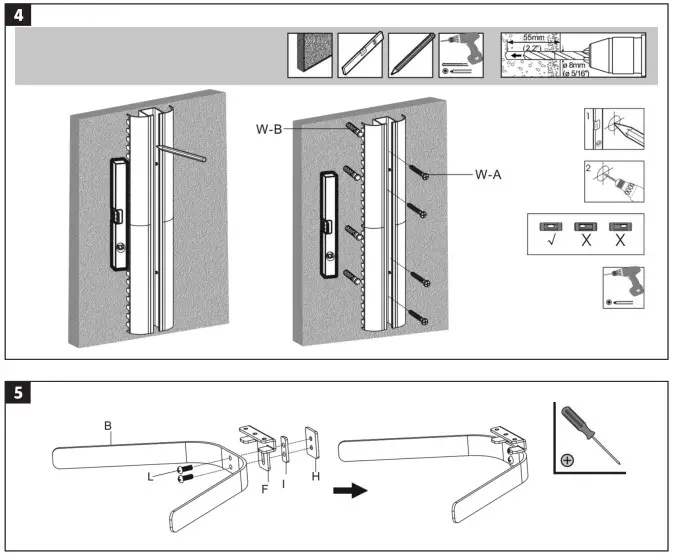

FIG. 4
FIG. 5

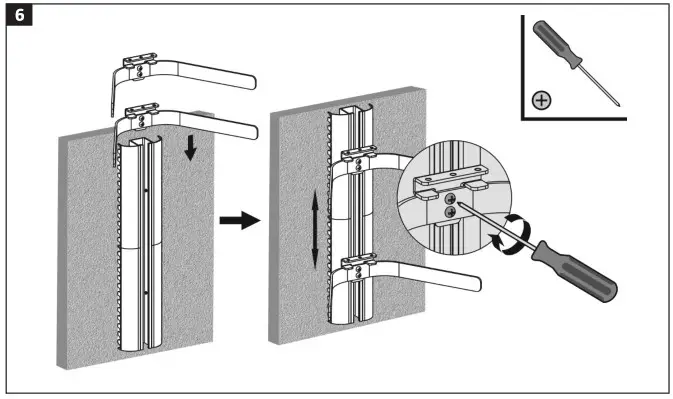

FIG. 6

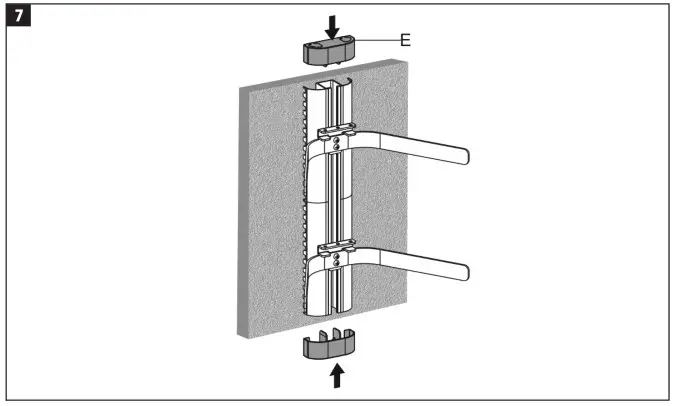

FIG. 7

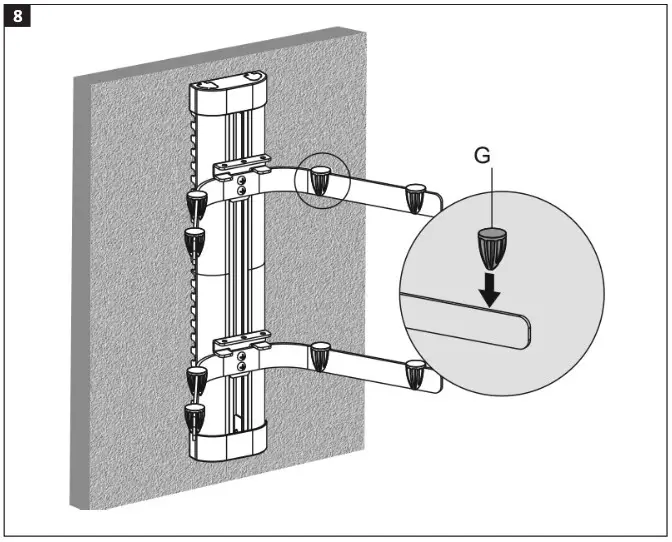

FIG. 8

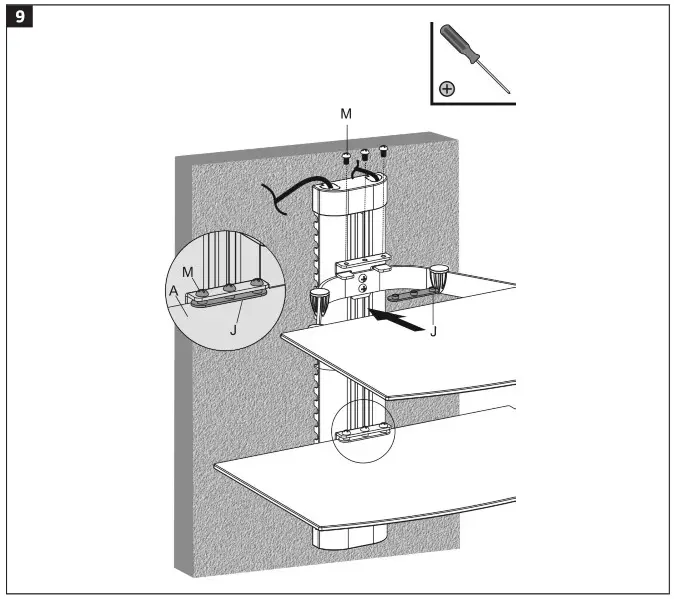

FIG. 9

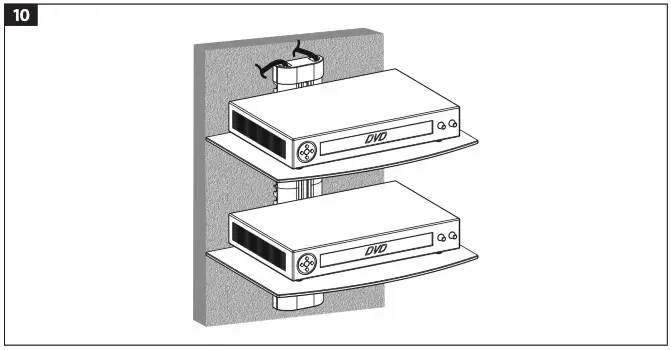

FIG. 10
Jula reserves the right to make changes.
For latest version of operating instructions, see www,jula.com
JULA AB, BOX 363, SE-532 24 SKARA 2022-01-05
