Closetmaid 3304640 10-inch D White Wood Closet Shelf Kit Instruction Manual

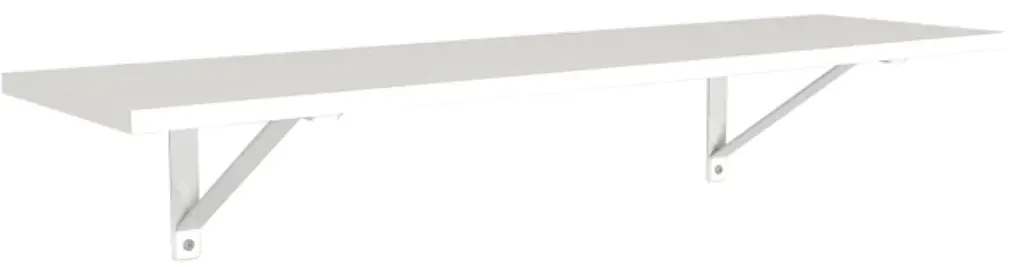

CLOSETMAID 3304640 10-Inch D White Wood Closet Shelf Kit

FOR STUD INSTALLATION

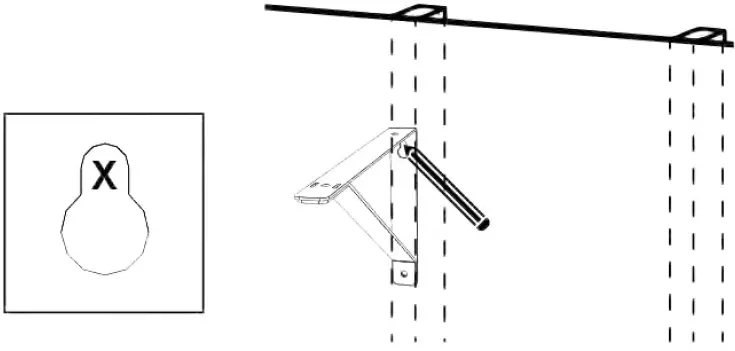

1. Place bracket at desired height and mark where the top screw of the bracket will go with a pencil.

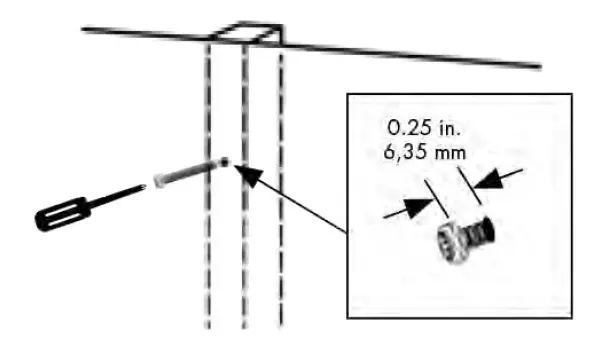

2. Drive a #8 x 1.25 in. screw into the wall at the marked location until the head is about O .25 in. from the wall. Slide the bracket onto top screw.
3. Using a level, ensure bracket is straight and drive another #8 x 1.25 in. screw through the bottom hole of the bracket. Tighten the top screw. Repeat steps 2 – 3 for additional brackets.
4. Place the shelf on top of the brackets.

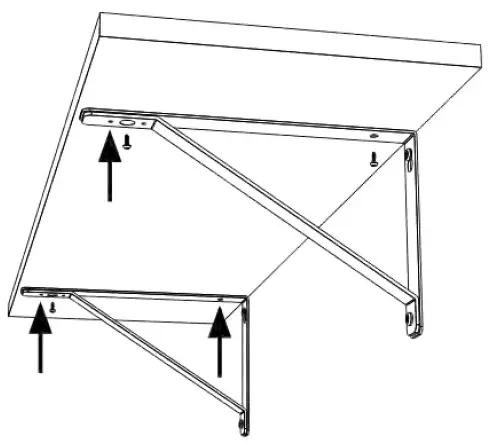

5. Once in position, drive a #8 x 0.625 in. screw into the shelf using a screw driver.
