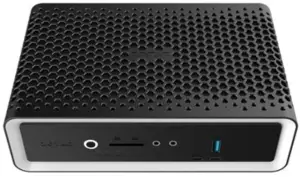

ZOTAC ZBOX C Series Nano Mini PC User Guide

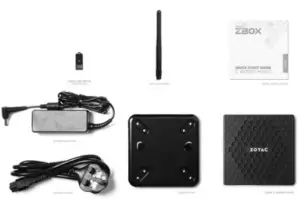

PACKAGE CONTENTS

• 1 x ZOTAC ZBOX nano
• 1 x ZOTAC VESA mount
• 1 x AC adapter
• 1 x Power cord
• 1 x WiFi antenna
• 1 x Quick Start Guide
• 1 x OS Recovery USB Drive (Optional)


CUSTOMIZING YOUR ZOTAC ZBOX NANO

1. Loosen and remove the 4 thumb screws securing the bottom cover.

2. Gently remove the cover.

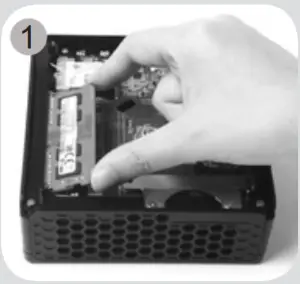

INSTALLING MEMORY MODULES

1. Locate the SO-DIMM memory slots and insert a SO-DIMM
   memory module into the slot at a 45 degree angle.

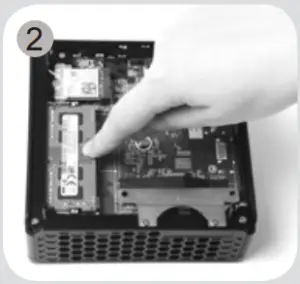

2. Gently press down on the memory module until it locks into
   place by the arms of the memory slot.


INSTALLING A HARD DISK

1. Locate the hard disk bracket, remove the screw, and remove the hard disk bracket.

2. Install the hard disk bracket to a 2.5-inch SATA hard disk /SSD with 2 screws.

3. Insert the hard disk /SSD into the socket and gently slide into the connector.

4. Reinstall the screws of the hard disk bracket.

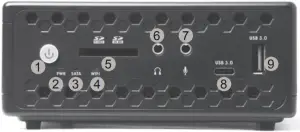

FRONT PANEL

1. Power button
2. Power LED
3. SATA LED
4. WiFi LED
5. Memory card reader (SD/SDHC/SDXC)
6. Headphone/Audio Out jack
7. Microphone jack
8. USB 3.0 Type-C
9. USB 3.0 port

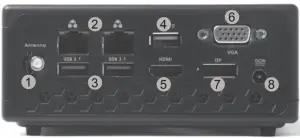

REAR PANEL

1. WiFi antenna connector
2. LAN (RJ45) ports
3. USB 3.1 ports
4. USB 2.0 port
5. HDMI port
6. VGA port
7. DisplayPort
8. Power input (DC19V)

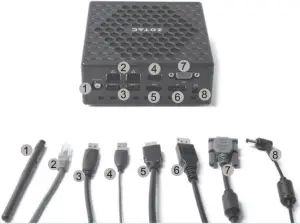

SETTING UP YOUR ZOTAC ZBOX NANO

1. Connecting antenna for Wi-Fi
2. Connecting to a wired home network
3. Connecting USB 3.1 devices
4. Connecting USB 2.0 devices
5. Connecting an HDMI display
6. Connecting a DisplayPort display
7. Connecting a VGA display
8. Connecting the power adapter and turning on the system
