Zotac Zbox User Manual

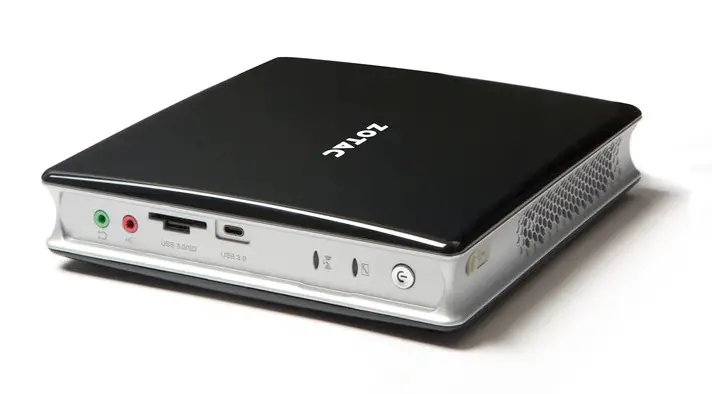

ZOTAC ZBOX
User Manual

PACKAGE CONTENTS

• 1 x ZOTAC ZBOX
• 1 x Stand
• 1 x AC Adapter
• 1 x Power Cord
• 1 x Warranty Card
• 1 x User Manual
• 1 x Driver disc

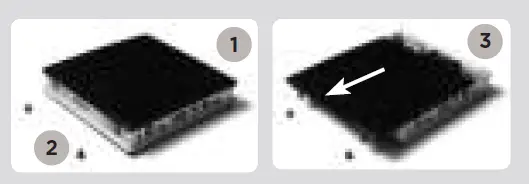

CUSTOMIZING YOUR ZOTAC ZBOX

1. Lay the ZOTAC ZBOX on a flat surface with the rubber feet facing upwards.
2. Locate the two thumb screws and remove.
3. Slide the cover off the ZOTAC ZBOX in the direction of the arrow.

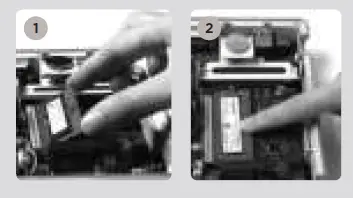

INSTALLING MEMORY MODULES

1. Locate the SO-DIMM memory slots and insert a SO-DIMM memory module into the slot at a 45 degree angle.
2. Gently press down on the memory module until it locks into place by the arms of the memory slot.

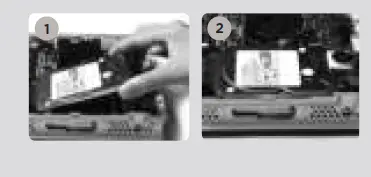

INSTALLING HARD DISKS

1.  Insert the hard disk bracket into the SATA slot.
2. Reinstall the thumb screw.

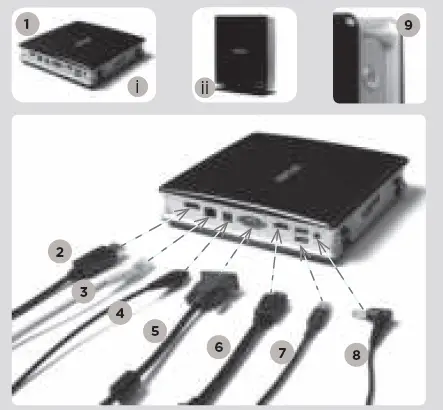

SETTING UP YOUR ZOTAC ZBOX

1. Select your ZOTAC ZBOX position
   i. Place ZOTAC ZBOX sideways
   ii. Install ZOTAC ZBOX on the stand
2. Connect DisplayPort display
3. Connect to home network
4. Connect an optical S/PDIF output
5. Connect VGA display
6. Connect HDMI displays
7. Connect USB 3.0 devices
8. Connect power cable
9. Turn on the system
10. Install operating system

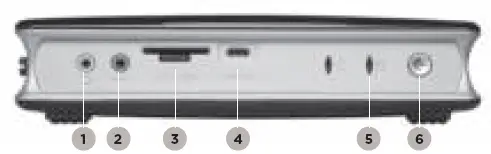

FRONT PANEL

1. Headphone/Audio Out jack
2. Microphone jack
3. USB 3.0 port / Memory card reader (SD/SDHC/SDXC)
4. USB 3.0 Type-C
5. Hard drive LED
6. Power button

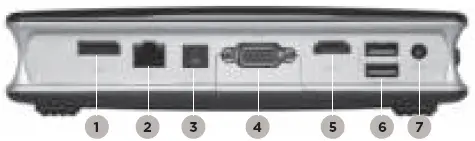

REAR PANEL

1. DisplayPort
2. LAN (RJ45) port
3. Optical S/PDIF out
4. VGA port
5. HDMI port
6. USB 3.0 ports
7. Power input (DC19V)
