205.B67-TT Column BE-B Type 2 3P+N+T 16A 400V

User Manual

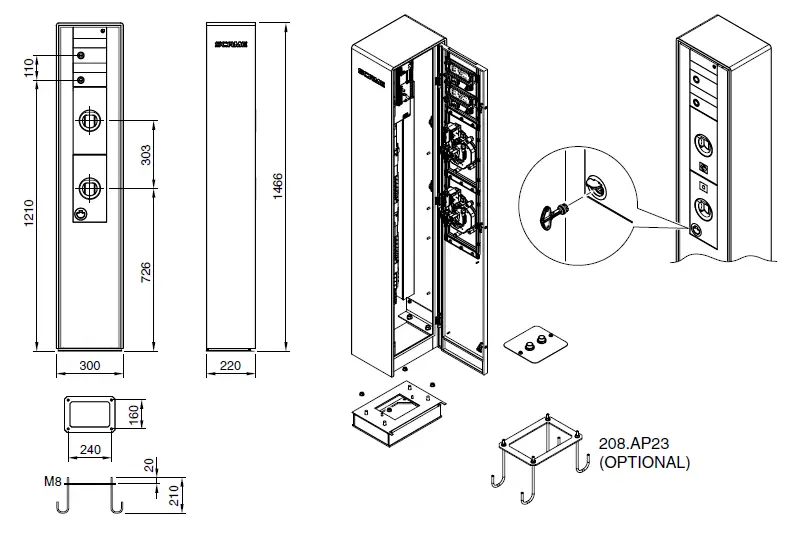

MOUNTING

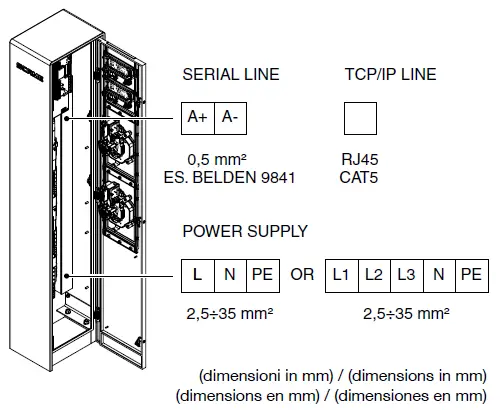

WIRING

Activation

1) Main: ON
2) Battery: ON

Deactivation

1) Main: OFF
2) Battery: OFF

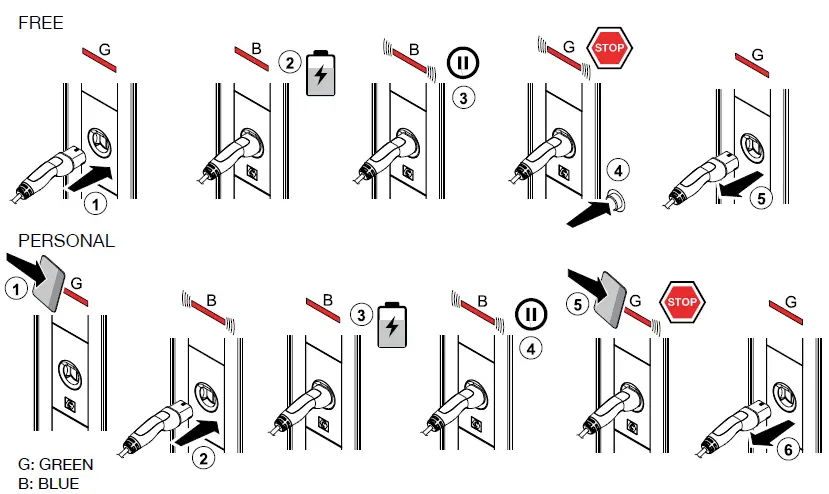

WORKING

CHANGE MODE

Personal  Free
With button pressed down, switch the master card on reader. Free  Personal With button pressed down, switch the master card on reader.

NOTES

This device shall be installed and maintained by qualified personnel.

The manufacturer can not be held responsible for any failure to comply with these instructions

To download the user manual of charging stations visit our website:

https://e-mobility.scame.com/download
