TOA Conference Systems TS-690/TS-780 Series User Guide
TS-690 Series Conference System
System Benefits
- Plug-and-play system.
- Up to 24 units can be connected per Central Unit. The use of Booster Unit, TS-690BS, max. 30 units can be connected.
- Suitable for small-scale corporate boardrooms and meeting rooms.
- Test function allows connections to be accurately verified.
- Connect a recording device for high-quality audio recording of conferences.
- Compact and stable hardware design.
System Example
TS-780 Series Conference System
System Benefits
- Plug-and-play system.
- Up to 64 units can be attached to a single Central Unit.
- System expandable to 192 units by connection of 3 Central Units.
- Test function allows connections to be accurately verified.
- Conferences can be recorded onto SD card or external recording device.
- Built-in feedback suppressor for more efficient reduction of acoustic feedback.
- External equalizing capability.
- Compact and stable hardware design.

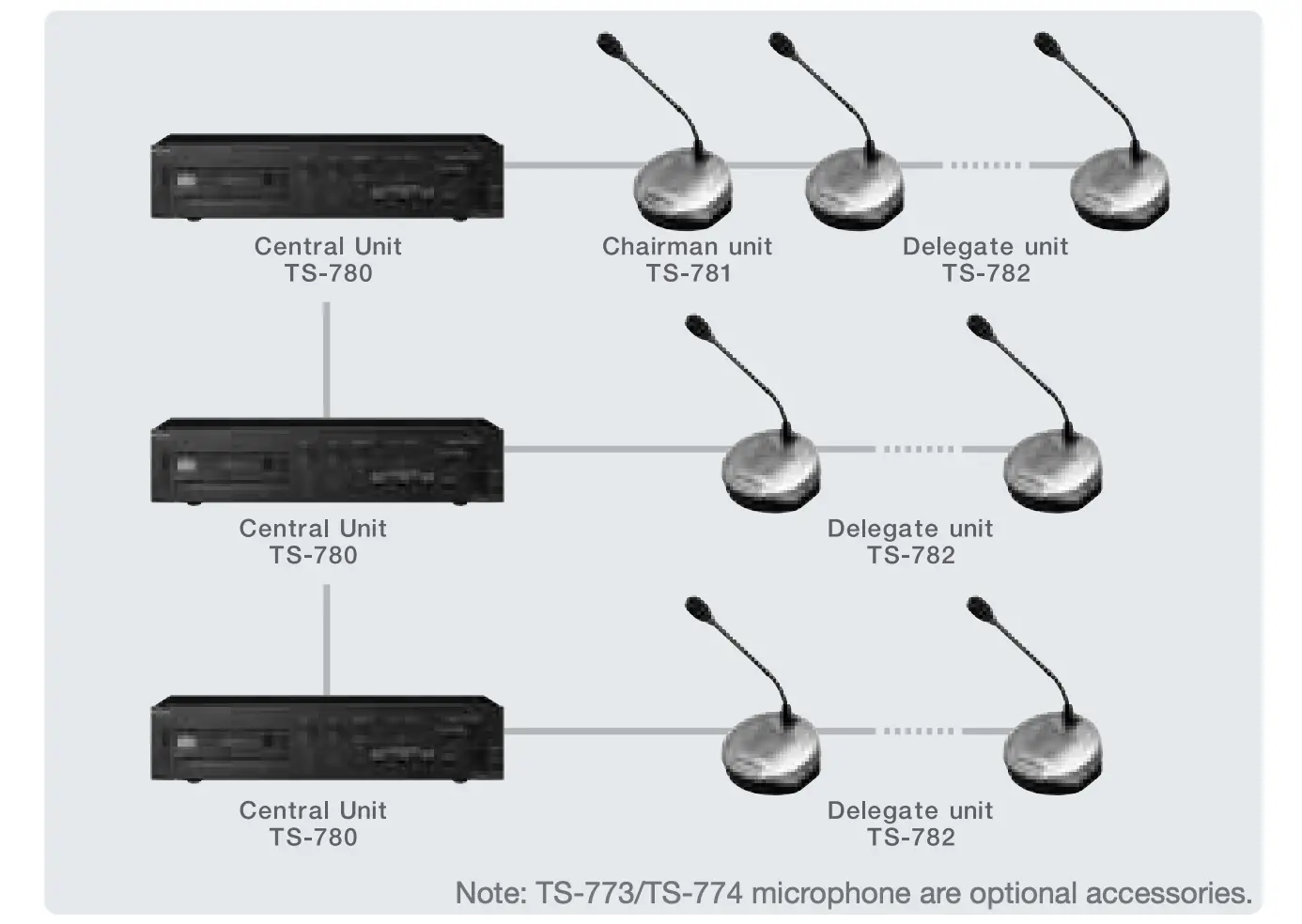

System Example

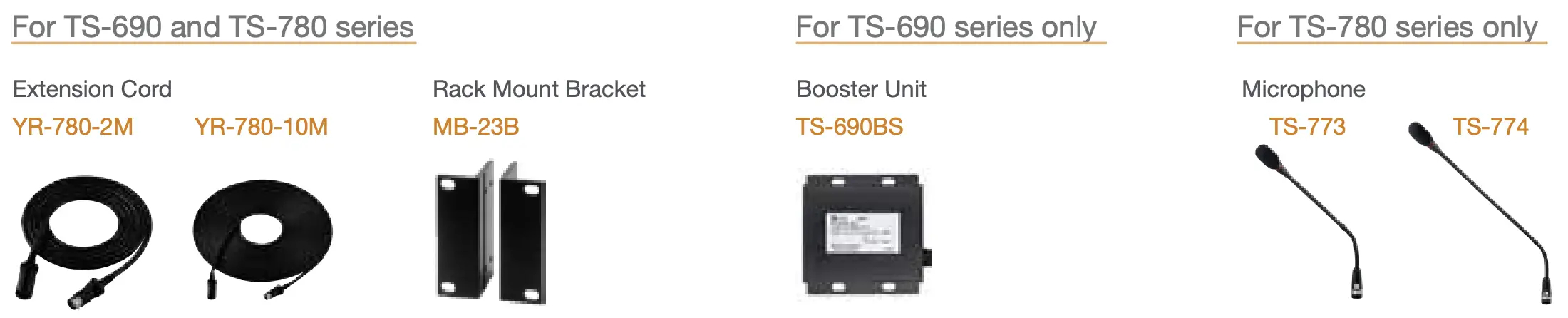

Other System Components
