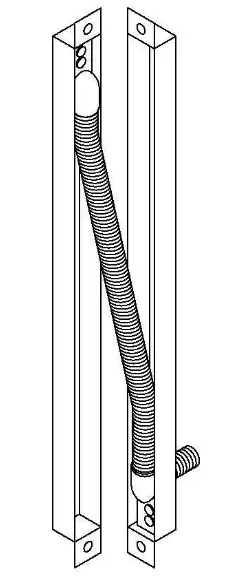

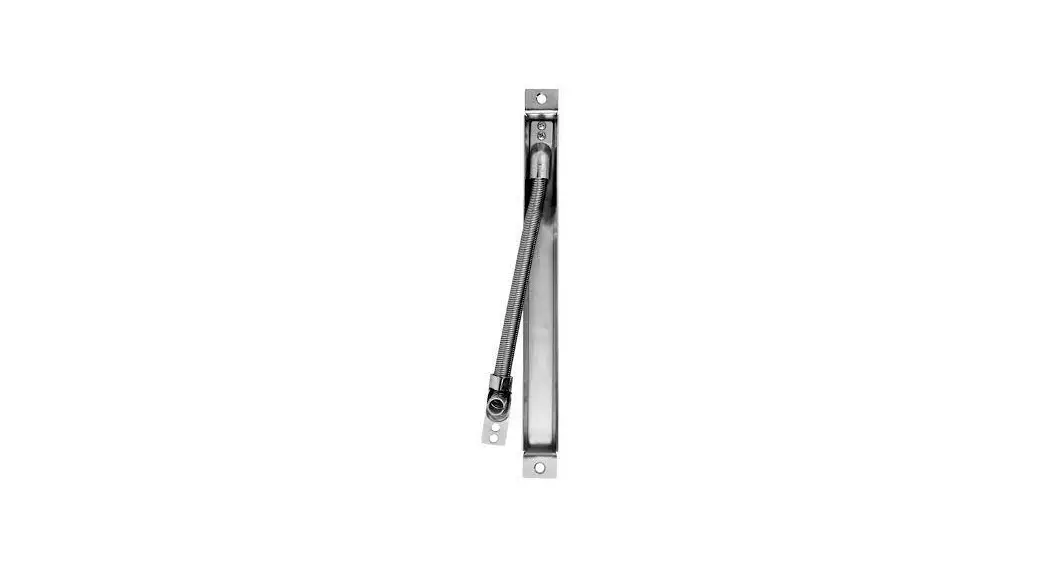

ABH MANUFACTURING INC PT180 Power Transfer

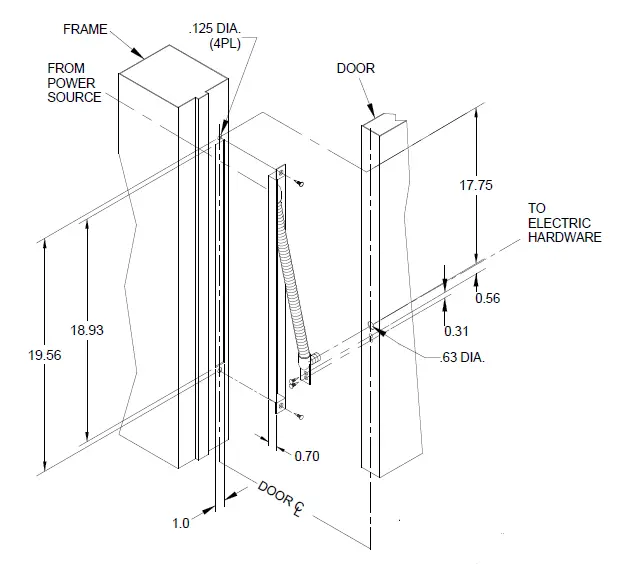

INSTALLATION TEMPLATE
NOTES:
- USE TRANSFER CASE HOUSING AS A DRILLING TEMPLATE.
- ONLY STRANDED WIRES ARE TO BE EMPLOYED.
- SPRING CONDUIT FITS WIRE BUNDLES UP TO 5/16″ THICK.
- USE CARE WHEN INSERTING WIRES THROUGH THIS DEVICE.
- RECTANGULAR CUT-OUT IS 11/16″ DEEP (MIN.) FOR WOOD FRAME.
- WIRES SHOULD BE LABELED.
- THE SIZE AND NUMBER OF WIRES MUST COMPLY WITH THE NATIONAL ELECTRICAL CODE, NFPA, AND LOCAL ELECTRICAL CODES.
- THIS DEVICE IS INTENDED FOR LOW VOLTAGE USE ONLY (30 VAC, 42.5 VDC, 10 WATTS MAX.)
| SCREW DETAIL | ||
| QTY | ||
| FRAME | 2 | #8 X 3/4″ PH. FLAT HEAD SHEET METAL SCREW |
| 2 | 8-32 x 3/8″ PH. FLAT HEAD, UC, MACHINE SCREW | |
| DOOR | 2 | 6-32 X 1/4″ PAN HEAD MACHINE SCREW |
- www.abhmtg.com
- E-mail: [email protected]
- Architectural Builders Hardware Mfg., Inc.
- 1222 Ardmore Ave., Itasca, IL 60143
- 630.875.9900; FAX 800.9FAXABH (932.9224)
- 2021 ABH Mig., Inc.
- printed in the USA
