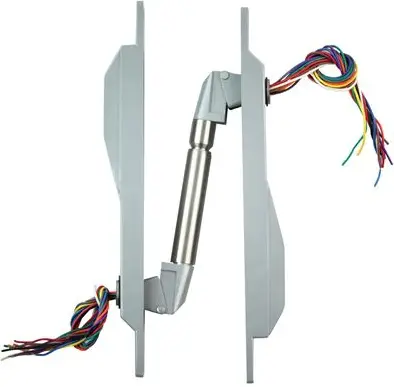

ABH PT105SC Square Corner Power Transfer

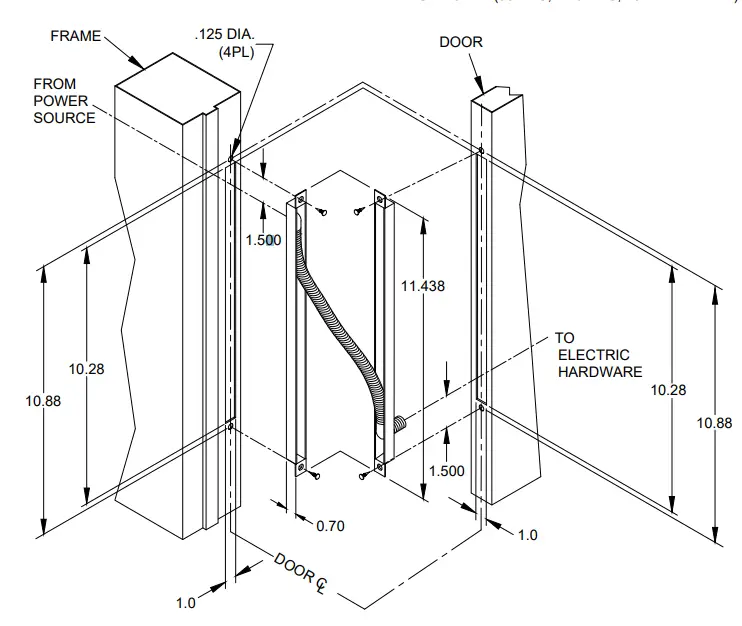

INSTALLATION TEMPLATE WITH SWING CLEAR HINGES – 90 DEGREES
NOTES:
- USE TRANSFER CASE HOUSING AS DRILLING TEMPLATE.
- ONLY STRANDED WIRES TO BE EMPLOYED.
- SPRING CONDUIT FITS WIRE BUNDLES UP TO 5/16″ THICK.
- USE CARE WHEN INSERTING WIRES THROUGH THIS DEVICE.
- RECTANGULAR CUT-OUT IS 11/16″ DEEP (MIN.) FOR WOOD FRAME & DOOR.
- WIRES SHOULD BE LABELED.
- SIZE AND NUMBER OF WIRES MUST COMPLY WITH THE NATIONAL ELECTRICAL CODE, NFPA, AND LOCAL ELECTRICAL CODES.
- THIS DEVICE IS INTENDED FOR LOW VOLTAGE USE ONLY (30 VAC, 42.5 VDC, 10 WATTS MAX.)
Architectural Builders Hardware Mfg. Inc.
