PTR105 TEMPLATE-05.DWG
PTR105
PAGE 1 OF 1
REVISED 11-05-21
PTR105 Electrical Power Transfer Unit

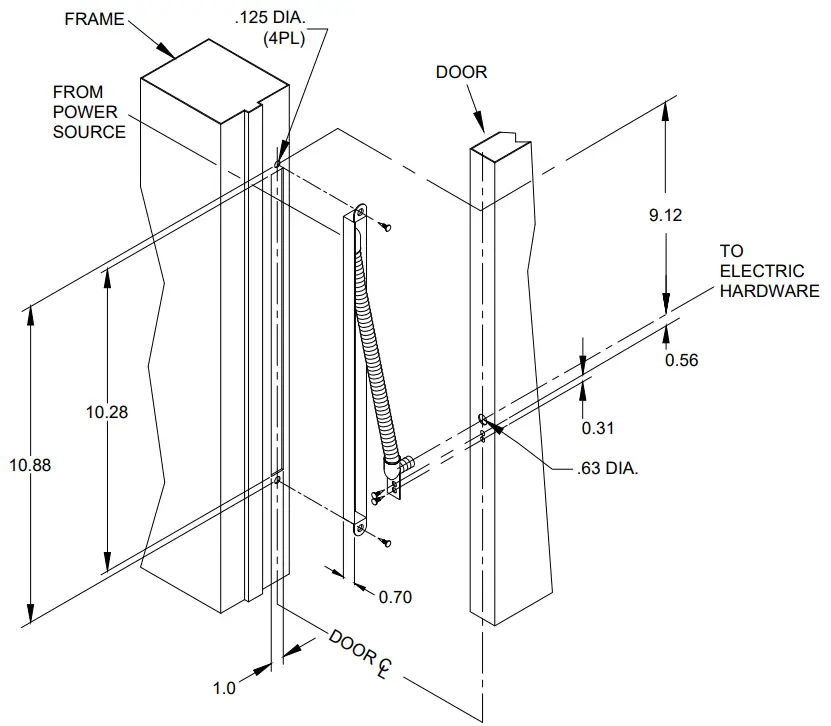

PTR105 INSTALLATION TEMPLATE
NOTES:
- USE TRANSFER CASE HOUSING AS
DRILLING TEMPLATE. - ONLY STRANDED WIRES TO BE EMPLOYED.
- SPRING CONDUIT FITS WIRE BUNDLES UP TO 5/16″ THICK.
- USE CARE WHEN INSERTING WIRES THROUGH THIS DEVICE.
- RECTANGULAR CUT-OUT IS 11/16″ DEEP (MIN.)
FOR WOOD FRAME. - WIRES SHOULD BE LABELED.
- SIZE AND NUMBER OF WIRES MUST COMPLY WITH THE NATIONAL ELECTRICAL CODE, NFPA, AND LOCAL ELECTRICAL CODES.
- THIS DEVICE IS INTENDED FOR LOW VOLTAGE USE ONLY (30 VAC, 42.5 VDC, 10 WATTS MAX.)
| SCREW DETAIL | ||
| QTY | ||
| FRAME | 2 | #8 X 3/4″ PH. FLAT HEAD SHEET METAL SCREW |
| 2 | 8-32 x 318″ PH. FLAT HEAD, UC, MACHINE SCREW | |
| DOOR | 2 | 6-32 X 114″ PAN HEAD MACHINE SCREW |
