ASD-MPLR-346-FA New Construction Flat Mounting Plate
DESIGN & OPTIONS
– NEW CONSTRUCTION FLAT MOUNTING PLATE WITH AN ASYMMETRIC ROUND HOLE is a universal and handy solution for new construction. This durable fixture is the best choice for any ceiling space. Included mounting holes and tracks mean these plates will fit perfectly in many different structural layouts. Alignment notches on the plate help to align multiple plates. It has a multipurpose design that allows you to accommodate a range of 3″, 4″, and 6″ LED recessed lights.
INSTALLATION
Installation is quick and easy. Just adjust the mounting plate position and fix it with screws or nails. You can also secure the J-box position. Remove the metal template of the needed size and install your light Refer to install instructions for detailed steps.
APPLICATION

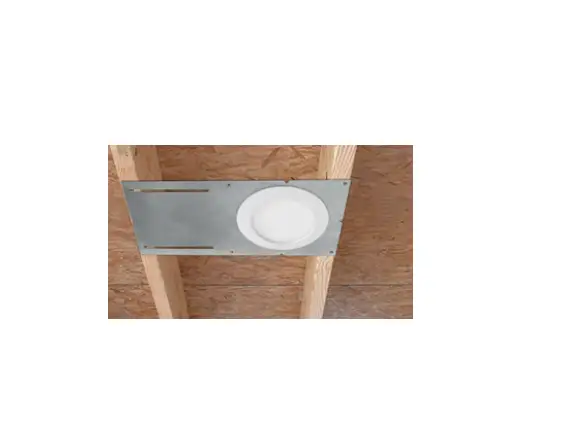

This NEW CONSTRUCTION FLAT MOUNTING PLATE WITH AN ASYMMETRIC ROUND HOLE is a great solution for both residential and commercial projects. It is perfect for installing LED recessed lighting kits into newly constructed or remodeled homes.
PRODUCT LEGEND:
| Family | Cut hole shape | Cut hole size | Installation |
| ASD-MPL | X | X | XX |
| New Construction Flat Mounting Plate | R = Round | 3 = 3 inch | FA = Flat Asymmetric |
| 4 = 4 inch | |||
| 6 = 6 inch | |||
NEW CONSTRUCTION FLAT MOUNTING PLATE:
| Model | Cut hole size | Dimensions (LxW) | UPC |
| ASD-MPLR-346-FA | 3-4-6″ | 13 1/4″ x 9 1/16″ | 810050733854 |
PRODUCT SPECIFICATIONS:
| Construction & Materials | |
| Housing | Iron |
| Weight | 0.9 lb (0.4 kg) |
| Environmental System | |
| Work Environment | Suitable for Dry Locations |
| Regular and Voluntary Certifications | |
| 5-year limited warranty | |
IMPORTANT SAFETY INFORMATION:
Please read all the instructions below before installation.
- The product must be installed by a qualified electrician in accordance with the National Electrical Code and corresponding local codes.
- If the product is damaged, do not use it.
WARNING
RISK OF PERSONAL INJURY – READ and follow all WARNINGS and installation instructions.
Keep or give to the owner for future reference.
Risk of cuts: Wear gloves to prevent cuts or abrasions when removing from carton, handling, installing, and maintaining this product.
ASD® assumes no responsibility for claims arising out of improper or careless Installation or handling of this product.
ORDERING INFORMATION:
| Model | Pcs in middle box | Middle box Size | Middle box Weight | GTIN 14 for Middle box | Pcs. per Carton | Carton Size | Carton Weight | GTIN 14 for Carton |
| ASD-MPLR-346-FA | 6 | 9.3″ x 0.6″ x 13.6″ | 5,6 lb | 10810050733851 | 24 | 14.4″ x 9.8″ x 3.1″ | 22.5 lb | 20810050733858 |
PACKAGE CONTENTS:
| Description | Q-ty |
| New Construction Flat Mounting Plate | 6 |
| Box | 1 |
| Cut sheet | 2 |
INSTALLATION STEPS:

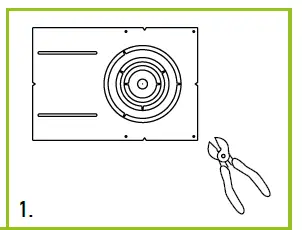

- Remove the metal ring from the mounting plate, according to the size of the fixture.

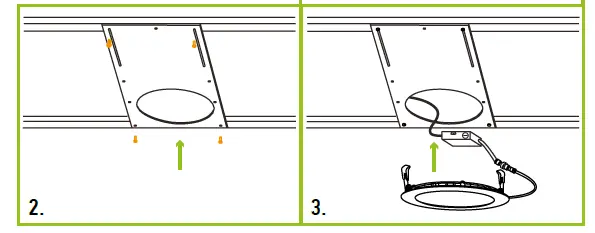

- Place the Mounting plate and fix its position with the screws on the beams.
- Put the fixture into the installation hole.
ASD Lighting Corporation – lighting equipment and electrical products
