Installation Manual
INSTALLATION DIAGRAM
MOUNT BRACKET
Choose a location to mount the scale that is easily accessible and safe from potential damage (forklift posts, tire caps, etc.). Mount the bracket in the chosen location using two bolts to secure it.
INSTALL SCALE INTO BACKET

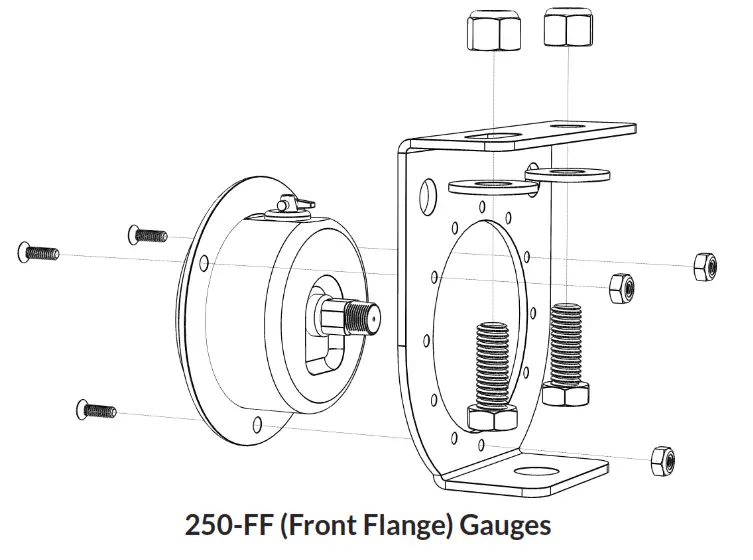

Install the gauge into the bracket as shown in the corresponding diagrams. Make sure to tighten all hardware securely.
DO NOT cut or drill into the chassis or any other main beam unless it is approved by the vehicle manufacturer. Doing so may void the warranty with the vehicle manufacturer.

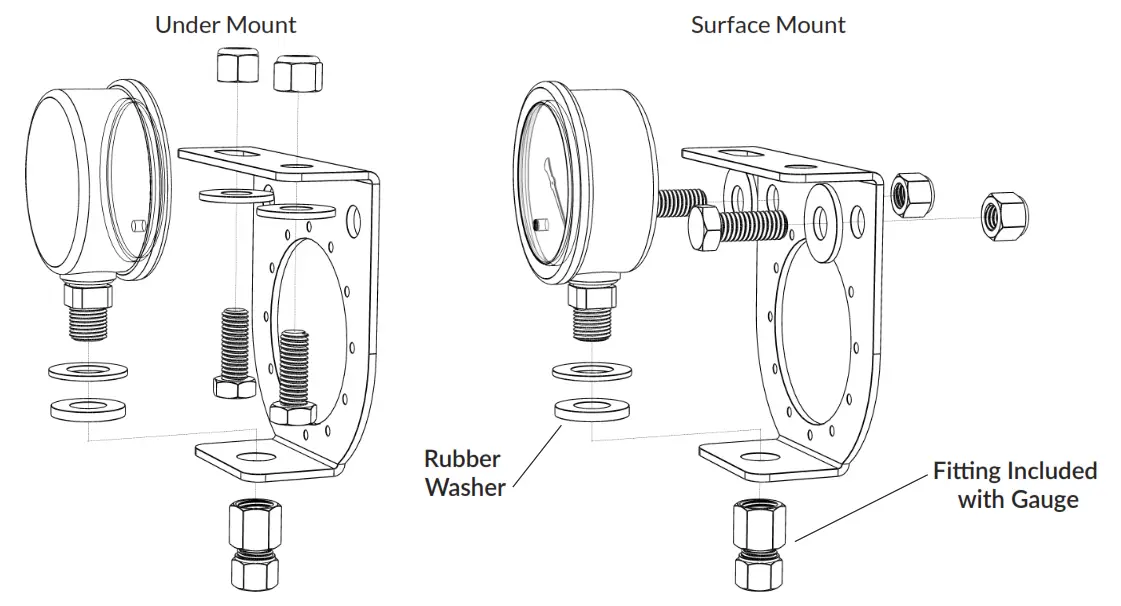

250-LM (Lower Mount) Gauges
Thank you for choosing to drive more and scale less! Here at Right Weigh, we are committed to making our products simple to install and easy to use. We understand that installation can vary between vehicles and yours may not be described in this manual. In any event, our technical support team is ready to answer your questions!
(503) 628-0838
(888) 818-2058 – Toll Free (USA ONLY)
+61 418 622840 – Australia & New Zealand
[email protected]
[email protected] – Australia & New Zealand
www.rwls.com/how-to-calibrate-install/
rightweigh.com.au – Australia & New Zealand
IMPORTANT!
Please read instructions COMPLETELY and thoroughly before installation. Right Weigh, Inc. is not responsible or liable for product failure or vehicle damage due to improper installation. The installation requirements are outlined in this manual and should be followed thoroughly to avoid inaccuracy or damage to the product.
It is also important to be aware of vehicle manufacturer policies before making modifications to the vehicle. Right Weigh, Inc. is not liable or responsible for issues regarding warranties with other manufacturers. This is the responsibility of the customer. If you are unsure about how these installation practices apply to your vehicle, please contact your vehicle or component manufacturer.

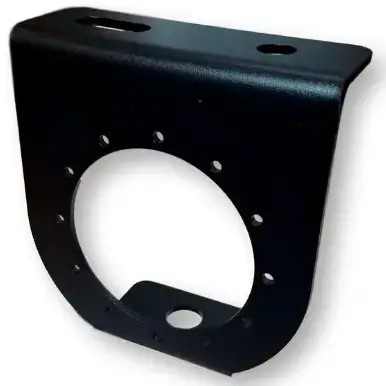

MOUNTING BRACKET KIT
FOR 250 SERIES LIQUID FILLED GAUGES | 250-BR
For additional support contact:
United States and Canada:
Right Weigh, Inc.
(888) 818-2058
www.rwls.com
[email protected]
Australia and New Zealand:
Smart Truck Solutions
+61 418 622840
rightweigh.com.au
FOLLOW US!
Right Weigh, Inc.
Hillsboro, Oregon USA
PP-003-0050 Rev B
July 2021
©2015-2020 Right Weigh, Inc.
All rights reserved.
