TURBRO ACS-460 Wall Mount Bracket
Part List
| No. | Item | Part Name | Quantity |

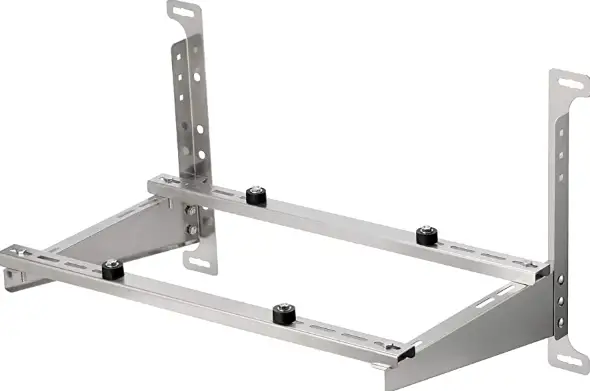

| A |  | Foldable Bracket | 2 pcs |
| B |  | Bracket Attachment Bolt Kit (M8*12MM) | 2 Sets |
| C |  | Concrete Expansion Bolt (M8*80MM) | 6 Sets |
| D |  | Condenser Attachment Bolt Kit | 4 Sets |
| E |  | Rubber Vibration Absorbing Pad | 4 Sets |
Installation Steps

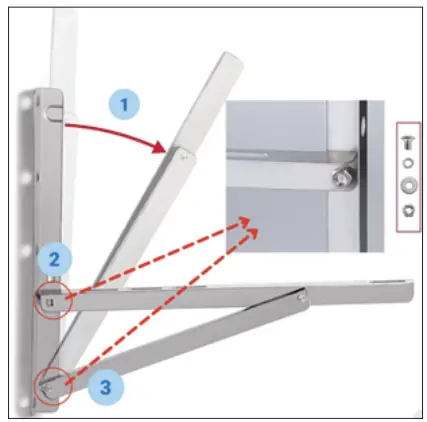

- Unfold the foldable brackets (A), and fix them with bracket attachment bolt kits (B).

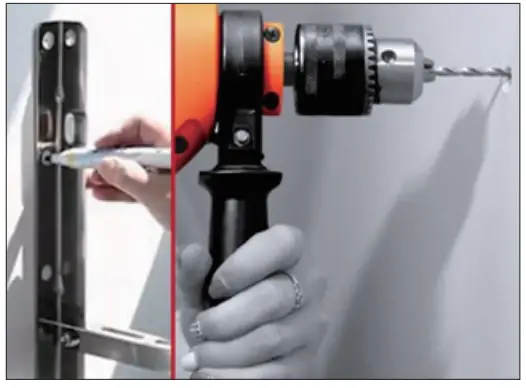

- Ensures the mounting surface is suitable for the foldable brackets (A). Mark the pre-drilled holes on the wall and drill the holes using the 1/2 inches driller.
(Double check bracket is level before any anchor drilling).

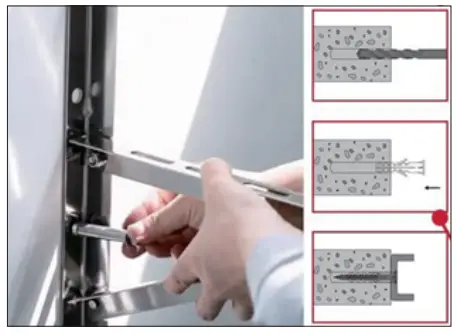

- Insert the concrete expansion bolts (C) and mount the L-shaped foldable brackets (A) on the wall.
- Adjust and put the rubber vibration absorbing pads (E) on the foldable brackets (A), then place your heat pump on it. Put the nuts of the condenser attachment bolt kits (D) on the foldable brackets (A), install and tighten the screws of the condenser attachment bolt kits (D) to settle the heat pump.
