KIT
FIAT DUCATO H2
L2 / L3 (≥ 2006)
98655Z101 / 98655Z102
F80s – F65s (320-370 cm)
Installation instructions for brackets
98655Z101/98655Z102 Brackets Kit

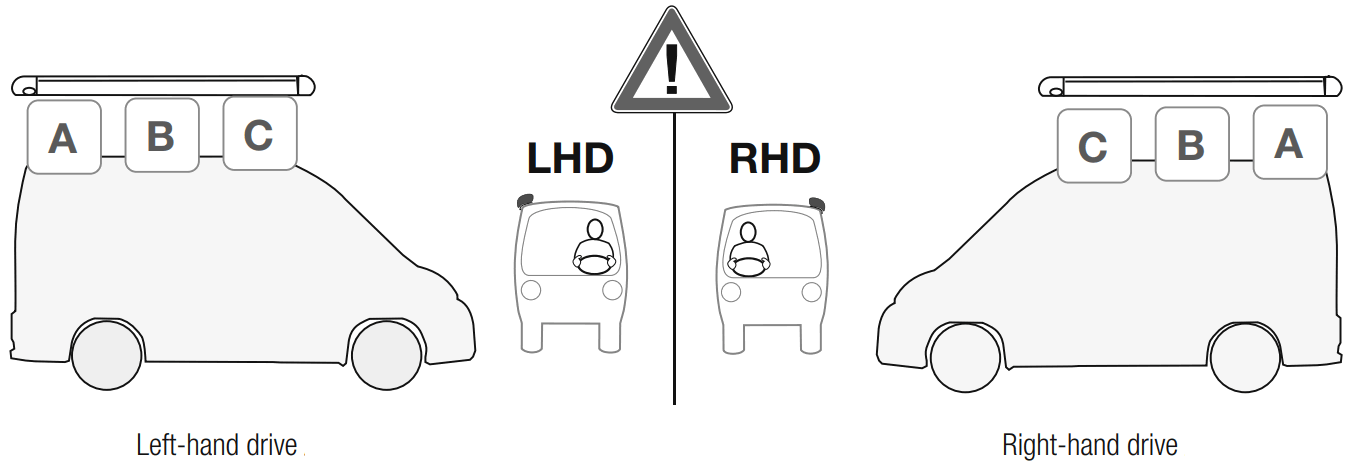

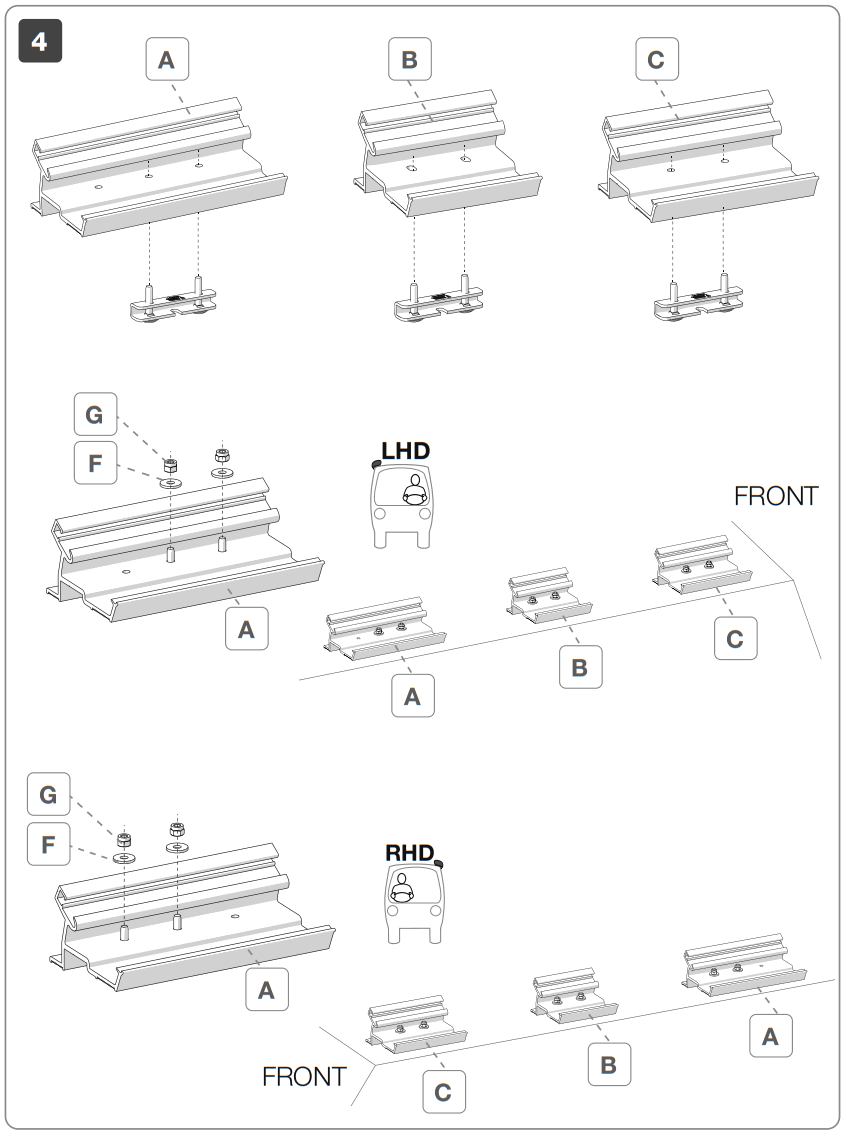

LHD | RHD |
|
|
Left-hand drive
Right-hand drive

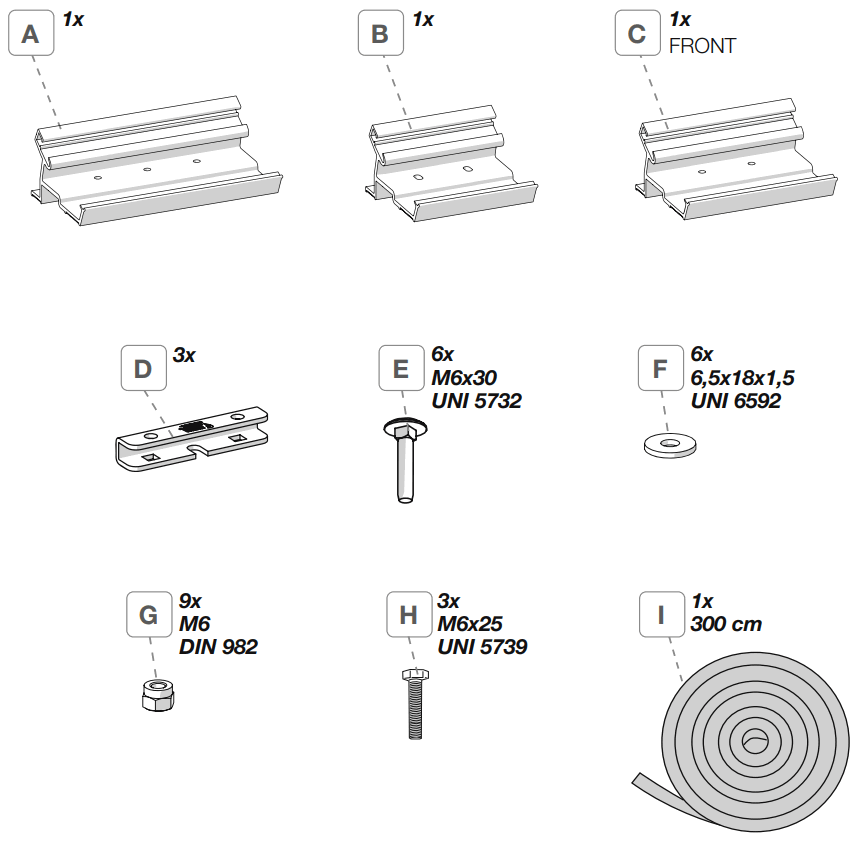

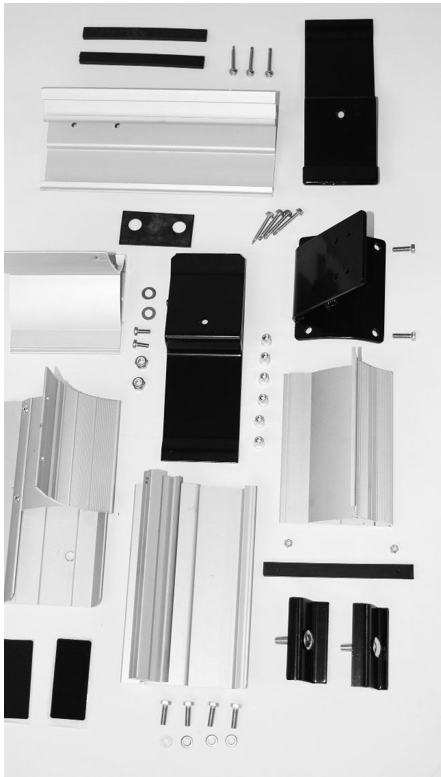

Package contents
Check that nothing has been damaged or deformed during transport.
In the event of doubts or questions concerning the installation, use or limitations of the product, contact the dealer. We recommend that the installation is carried out by qualifi ed personnel and in compliance with current local regulations.
ATTENTION: INSTALLATION ON FIXING KIT
The awnings are to be fi xed on the brackets so that the words “SUPPORT” on the awning are in correspondence of the brackets: this condition is necessary and indispensable for the two brackets situated at the extremities (which are located on the fi xing point of the arms on the case-box). It is important, but not indispensable, for the central bracket/s as it/they provide/s only a mounting support.

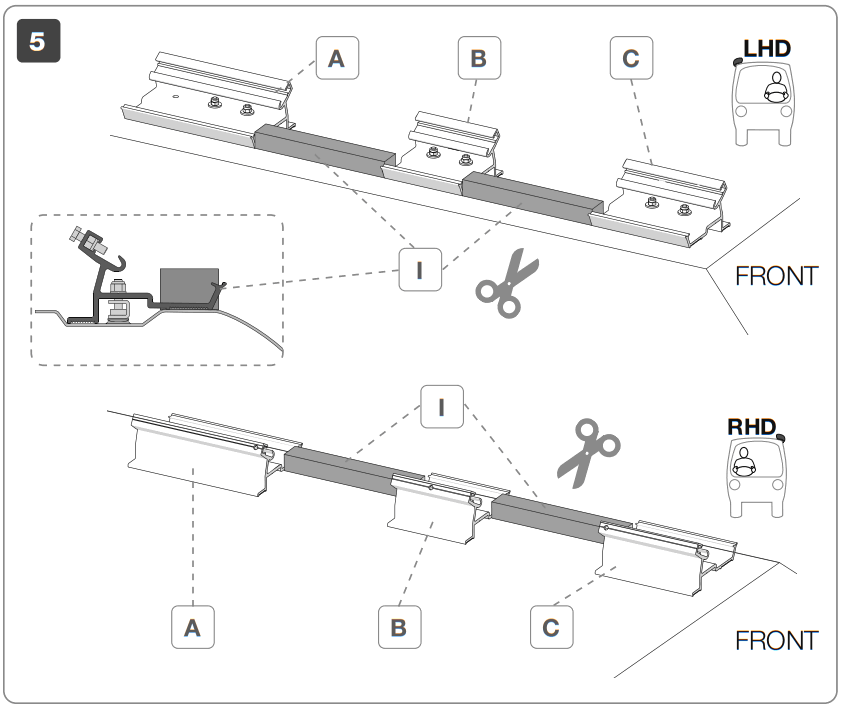

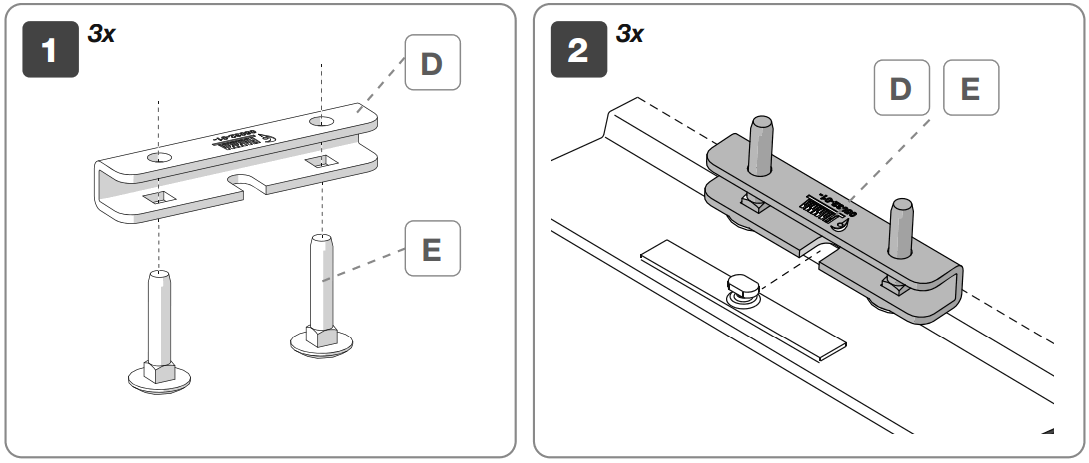

The brackets must always be well-aligned to each other to avoid later problems; in case they are not, they must be properly shimmed using the spacers to ensure the alignment.
The installation of the awning can occur only when the brackets are perfectly aligned to the roof of the vehicle.
Attention: to fix the brackets, use exclusively the hookings that are on the vehicle.

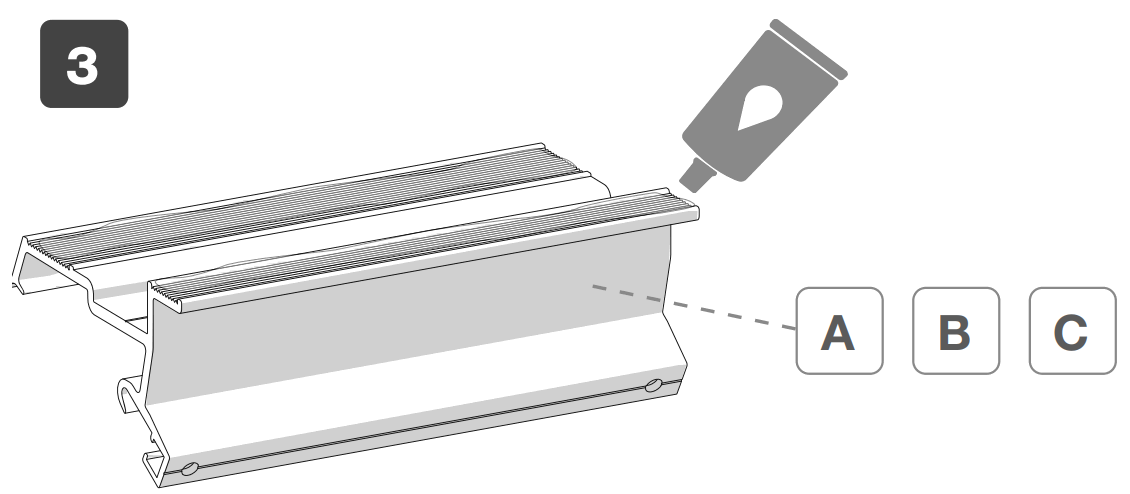

SIKA 252
Important: use of SIKA 252 adhesive is essential for fi xing the bracket (brackets).
Attention Security.
Remove this label only after fi xing the awning on the adapter.

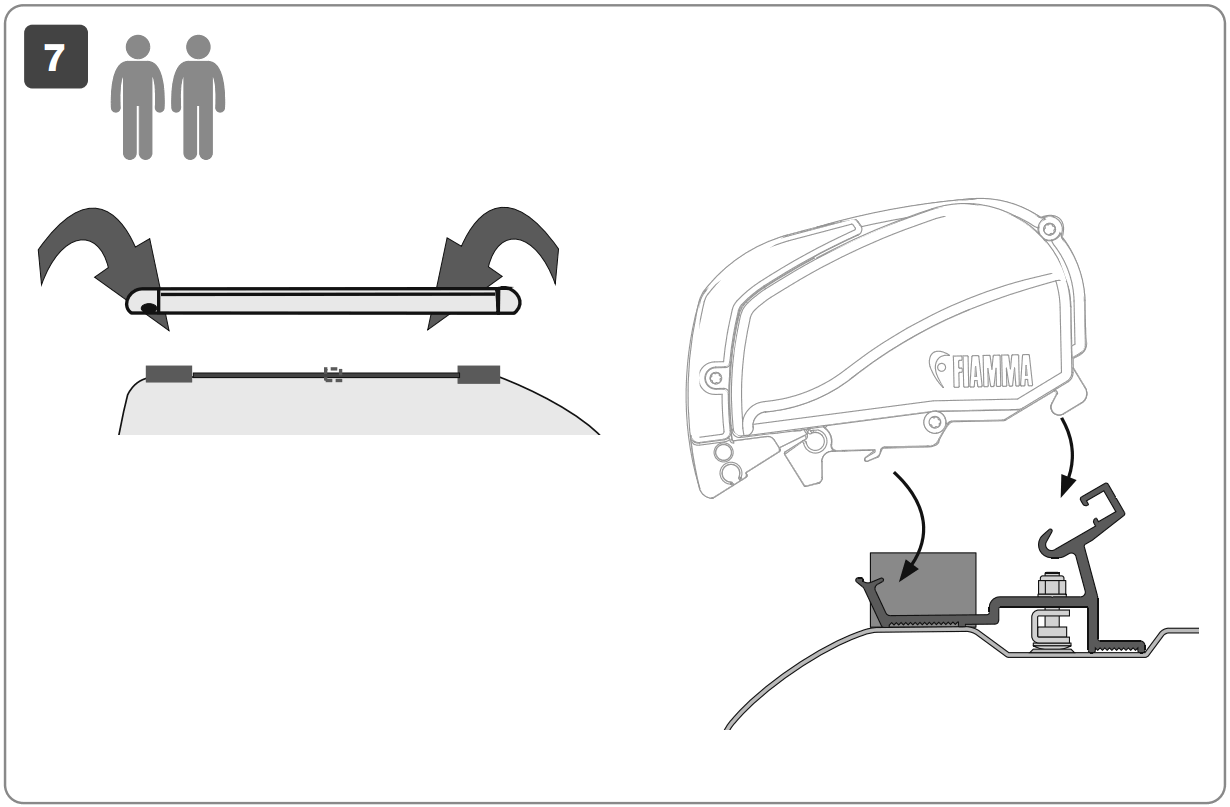

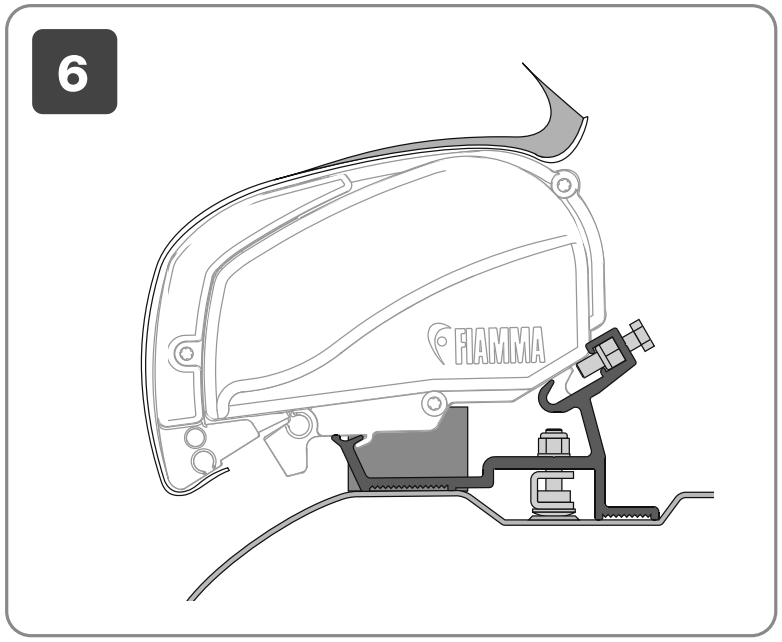

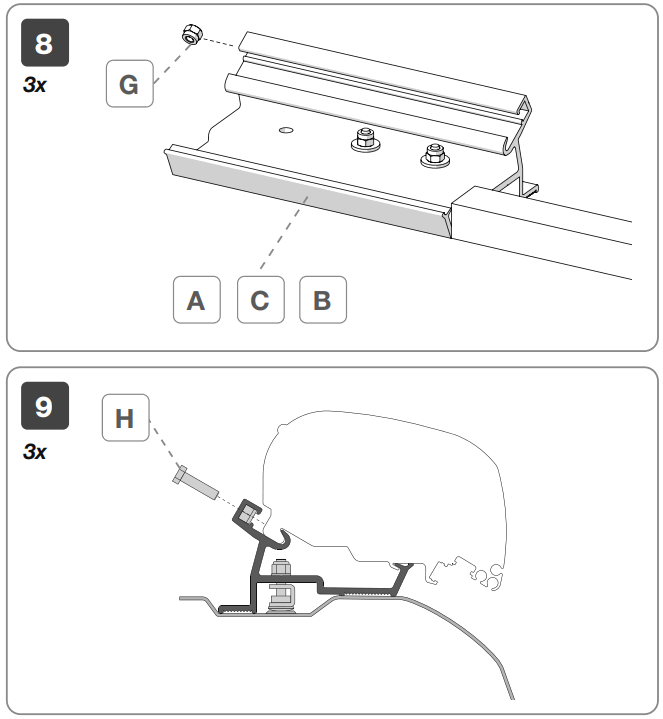

When using the awning please follow the instructions of the product.
ATTENTION Periodically check the brackets to make sure they are fi rmly attached (especially after the first kilometers) make sure the bolts are not loose and that holding brackets have not shifted.
Read the following instructions and warnings carefully; failure to observe these installation and usage instructions as well as the laws for driving in the relevant country may cause severe harm or damage for which the manufacturer declines all responsibility.
Before installation, ensure compatibility with the vehicle on which the product must be installed.
Checking that the wall/roof/rear door is suffi ciently solid and suitable for guaranteeing the resistance of the anchoring points is always mandatory. If not, strength and compliance with the maximum load indicated in the instructions are not guaranteed and it will be necessary to reinforce it these points.
Warranty Fiamma
In case of defects with regards to materials and manufacturing, the customer is entitled to the warranty in accordance with local laws and regulations of the country in which the product was purchased.
More information https://www.caravansplus.com.au
https://www.fiamma.it/en/
