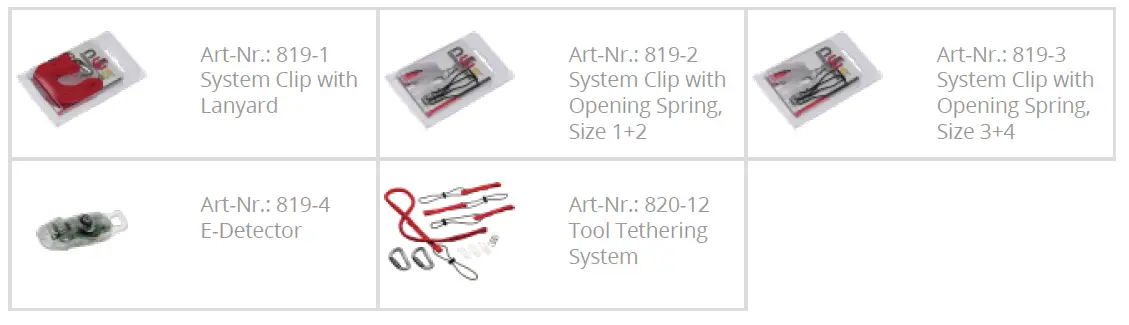

3 Related Products

4 Safety Notes

5 General Information

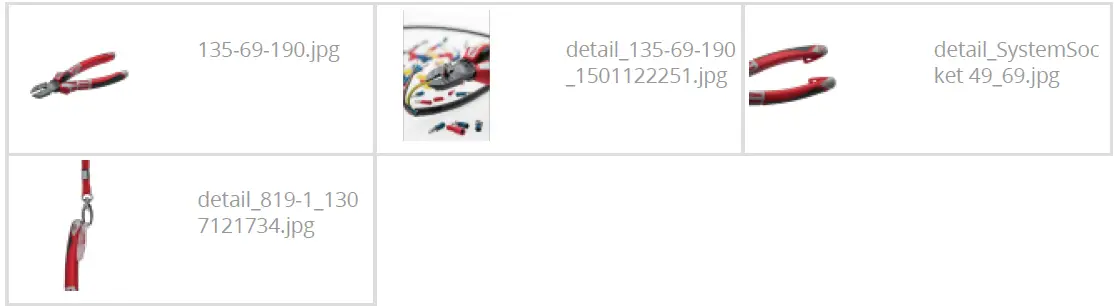

6 Downloads

7 Technical Data

8 Documents / Resources

8.1 References

9 Related Posts

NWS 135-69-190 Electrician’s Side Cutter

Electrician’s Side Cutter

Pliers for electrical installation
4 Functions: cutting – stripping – crimping – bending
With stripping function for single and multi-stranded conductors with 1.5 mm² and 2.5 mm² conductor cross-section
Cutting edges inductively hardened
Precision cutting edge for the finest wires
Power transmission with optimum leverage for easy and effortless work
Handles with ergonomically shaped SoftGripp multi-component sleeves
SoftGripp handles with SystemSocket for holding optionally available accessories, e.g. the easily attached SystemClip for fall protection
Made of special tool steel, forged, oil-hardened

Safety Notes

Use tools for indicated purposes only.
Before using the cutting tools please wear body protection such as safety mask, safety glasses and hand protection.
Beware of wire ends flying off!

General Information

Finish 69
Our pliers, cutters & wrenches with the attractive titanium finish are supplied with our new SoftGripp 3K sleeves. The triple-zone sleeves provide a firm grip that is pleasant to the touch, thanks to ergonomically designed handles. The pliers, cutters & wrenches themselves are drop-forged tool steel, special tool steel or chrome vanadium steel and are oil hardened. The cutting edges of all these cutting tools are induction-hardened to ensure they are able to cope with the needs of professionals in the industry and the trades. Keeping a grip on the matter in hand Assembly jobs in high places offer not only excellent views but also serious challenges. Here, where freedom of movement is restricted, every move the worker makes must make sense and the safety of the workers, machines and tools must have priority. NWS industrial tools enable workers to keep a grip on things. Their ergonomic design reduces work effort, when working overhead, for example. With the tools secured with the SystemClip, they are guaranteed not to fall if dropped, which makes work safer and easier.

SoftGripp with SystemSocket
When we developed our handle sleeves, the focus was on functionality, safety, and environmental compatibility. The SoftGripp sleeves provide a firm but comfortable grip as you work thanks to the triple-component texture. The tailored shape of the handles and the combination of different, environmentally compatible materials makes the tool rest more snugly in the hand. The ergonomically designed SoftGripp, with its multi-zone blend of handle textures, coupled with the optional spring-loaded opening mechanism, ensures strain-free working. To ensure maximum safety, the tools feature an optimized shape to prevent hands from slipping off the tool and the SystemClip, which secures the tools when working on a roof, scaffolding or construction site. The SystemClip, which is easily attached on the SystemSocket, creates a quick, secure connection between the tool and the strap and features an integrated pocket for storing the opener spring.

Downloads

Technical Data

135-69-190
	Length – mm	190
	Length – in	7 1/2
	Cutting edge shape

	Soft wire (220 N/mm²) copper, aluminium, plastic – cutting capacity – Ø mm	2
	Medium hard wire (750 N / mm²) nail, wire nail – cutting capacity – Ø mm	1
	Cable – Al + Cu multi-wired conductor single and stranded conductor – cutting capacity – Ø mm	4
	Stripping capacities – mm²	1,5 + 2,5
	Stripping capacities – AWG	15 + 13
	Cutting edge hardness – HRC	57 – 59
	Weight – g	245
	Packing unit	6
	Barcode	40 03758 13527 3
