Maperformance Evox-occ-rev2 Evo X Catch Can Coolant Expansion Tank Instruction Manual

MAPerformance EVOX-OCC-REV2 Evo X Catch Can Coolant Expansion Tank

What’s in the box?

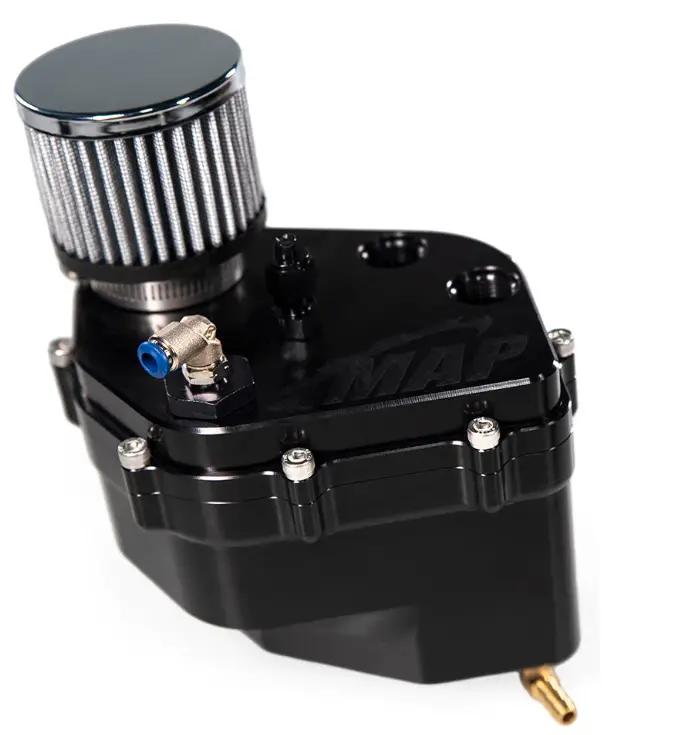

• MAP Billet Catch Can assembled
• Long -10AN Line
• Short -10AN Line
• Rubber coolant line
• AN line clamp
• Valve Cover Press in fitting Valve cover screw in fitting
• Slip on filter
• Oil Drain Kit (Optional)

Tools needed

You will need

• Vice Grips
• 23mm Socket
• 10mm Socket
• 8mm Socket
• Ratchet
• 10 AN Wrench
• 6mm Allen
• Pliers
• Body panel clip remover
• Dead blow hammer
• Small piece of wood to hammer on

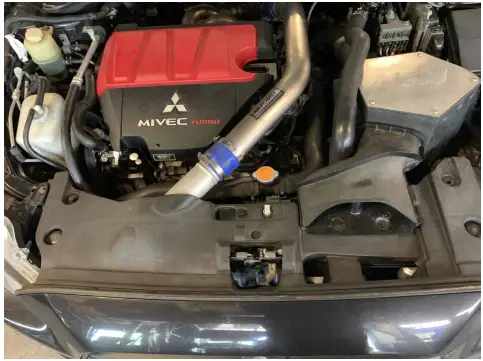

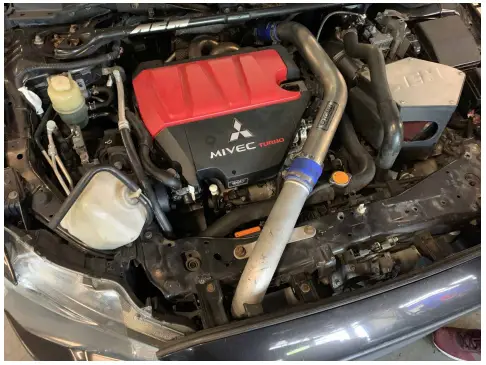

Step 1A

• A-B – Remove engine cover and Cooling Plate

Step 1B

• A-B – Remove engine cover and Cooling Plate

Step 2

• Remove upper intercooler pipe

Step 3

• Remove intake manifold to valve cover pcv hose

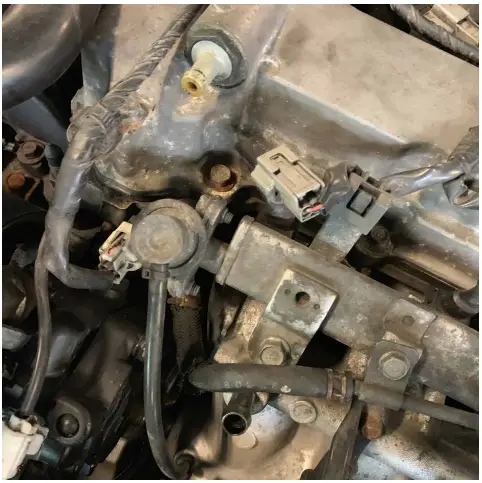

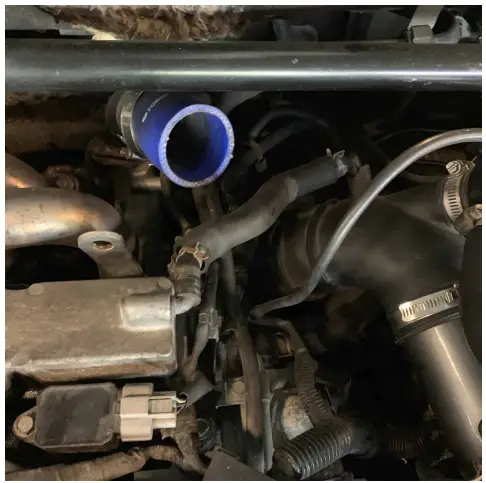

Step 4

• Remove intake to valve cover pcv hose

Step 5

• Remove intake to valve cover pcv hose
• Step 6
• Remove intake to valve cover pcv hose

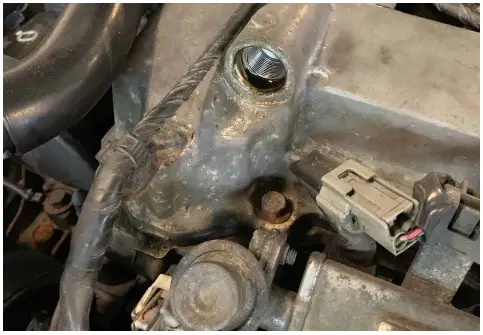

Step 7

• Remove intake to valve cover pcv hose

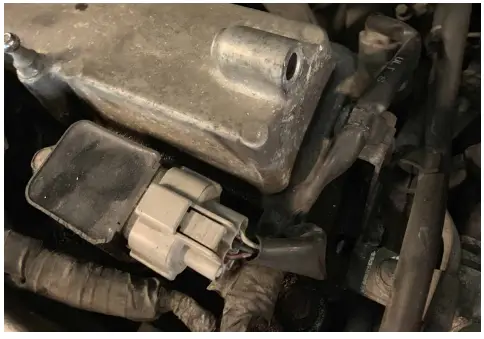

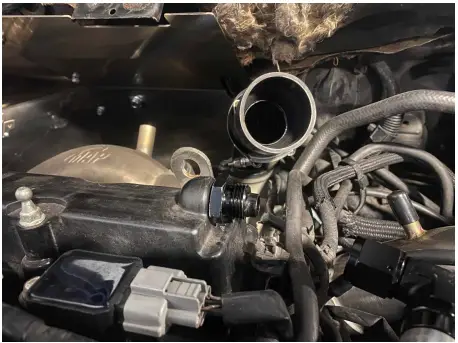

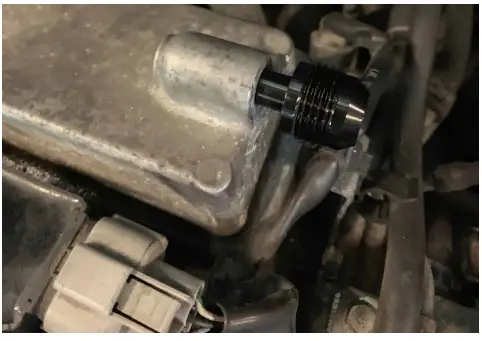

Step 8A

• A-B – Press in included -10an fitting into the valve cover by lightly hammering it with a rubber hammer, place a small piece of wood over the fitting to protect it if need be

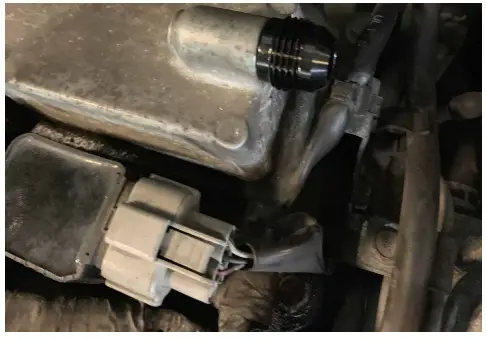

Step 8B

• A-B – Press in included -10an fitting into the valve cover by lightly hammering it with a rubber hammer, place a small piece of wood over the fitting to protect it if need be

Step 8P1

• 8.P1. install one half of the included MAP plastic valve cover fitting onto the valve cover as pictured. It should fit snugly on the factory barb

Step 8P2

• 8.P2. install second half of MAP plastic valve cover fitting by threading it on to the fitting you installed on step P1. snug the 2 halves together

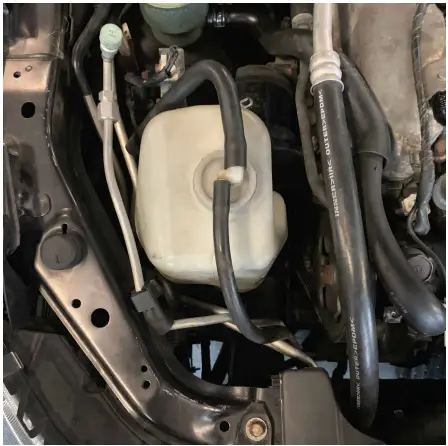

Step 9

• Remove factory coolant overflow

Step 10A

• A-B – Remove overflow bracket

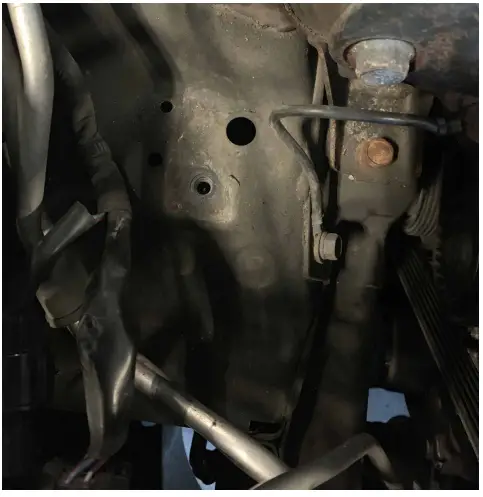

  Step 10B
• A-B – Remove overflow bracket
  Step 11
• Install Map catch can into place, securing with the factory bolt hole used for the factory over-flow. The kit includes a nylon nut that secures underneath to prevent the bolt from coming loose during heavily spirited driving or large amounts of vibrations

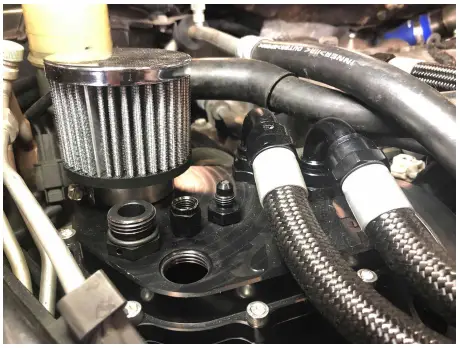

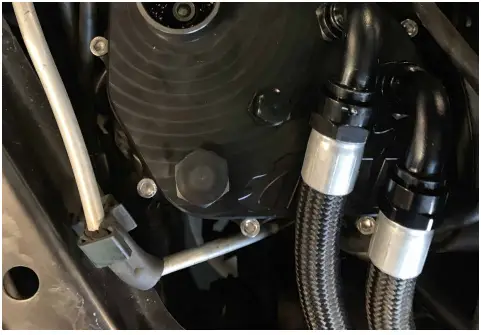

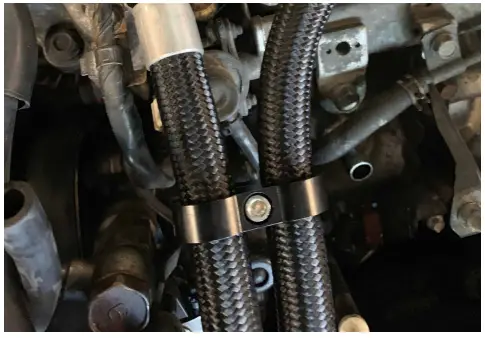

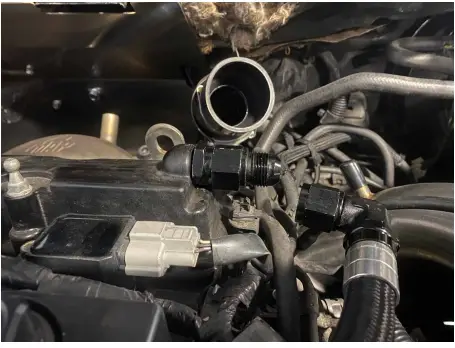

  Step 12A
• A-B – Route and attach AN lines as pictured, be sure to cap the open vacuum port on intake manifold and intake with included caps

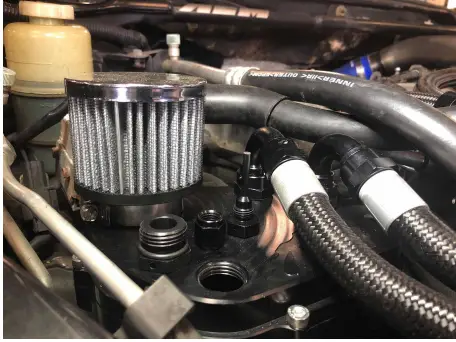

  Step 12B
• A-B – Route and attach AN lines as pictured, be sure to cap the open vacuum port on intake manifold and intake with included caps

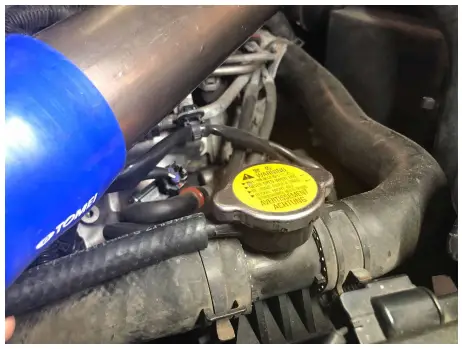

  Step 13A
• A-B – Run rubber coolant overflow line to radiator
  Step 13B
• A-B – Run rubber coolant overflow line to adiator
  Step 14A
• A-B Remove cap for the overflow and the overflow level indicator, fill until the bobber reaches half full, and reinstall cap
  Step 14B
• A-B Remove cap for the overflow and the overflow level indicator, fill until the bobber reaches half full, and reinstall cap
  Step 15

• Install included MAP blowdown coolant cap onto your catch can

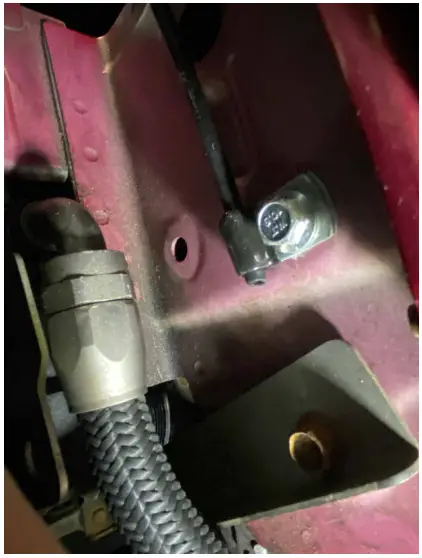

  Step 16
• Attach a blow-down tube to the frame rail with the included P clamp.

We hope you enjoy your purchase! Reach out to us with any issues or concerns.
