MAP WRX-4G-IN-AB Intake Airbox
Instruction Manual
What’s in the box?
1x MAP Air Box
1x Bracket
3x M6x12 Flanged Bolts
2x M6 Locknuts
2x Washers
Tools needed
You will need:
- 10mm socket
- 10mm wrench
- Phillips screwdriver
- Ratchet
- Various extensions

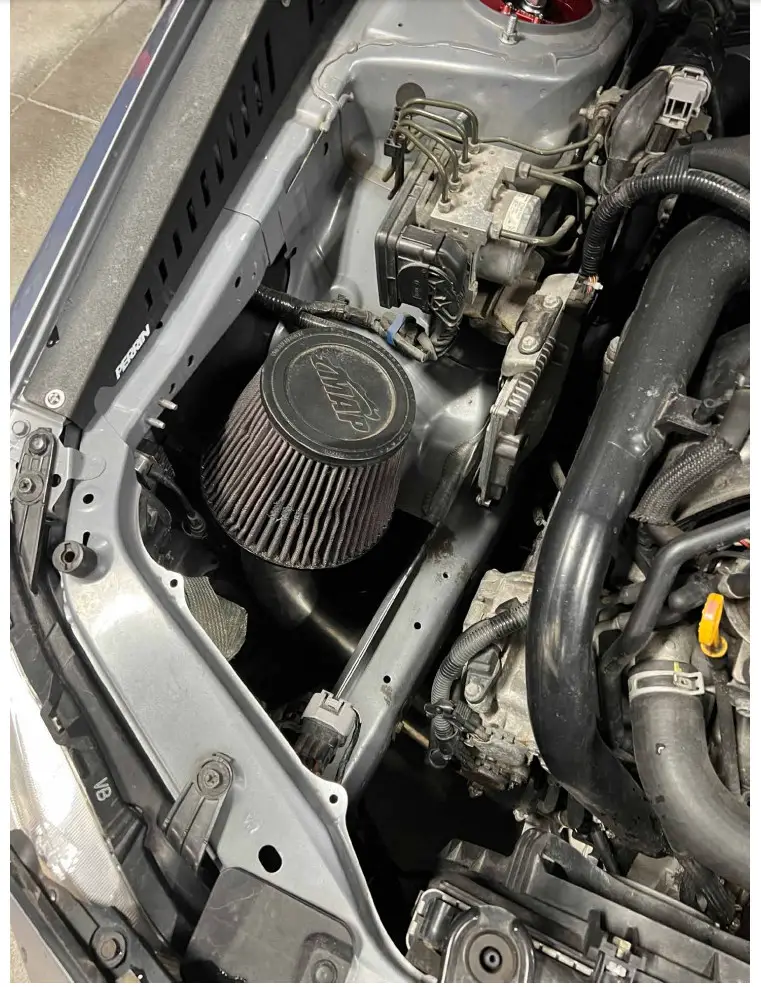

Step 1
Remove existing airbox/heat shield from the car, and remove oem filter bracket

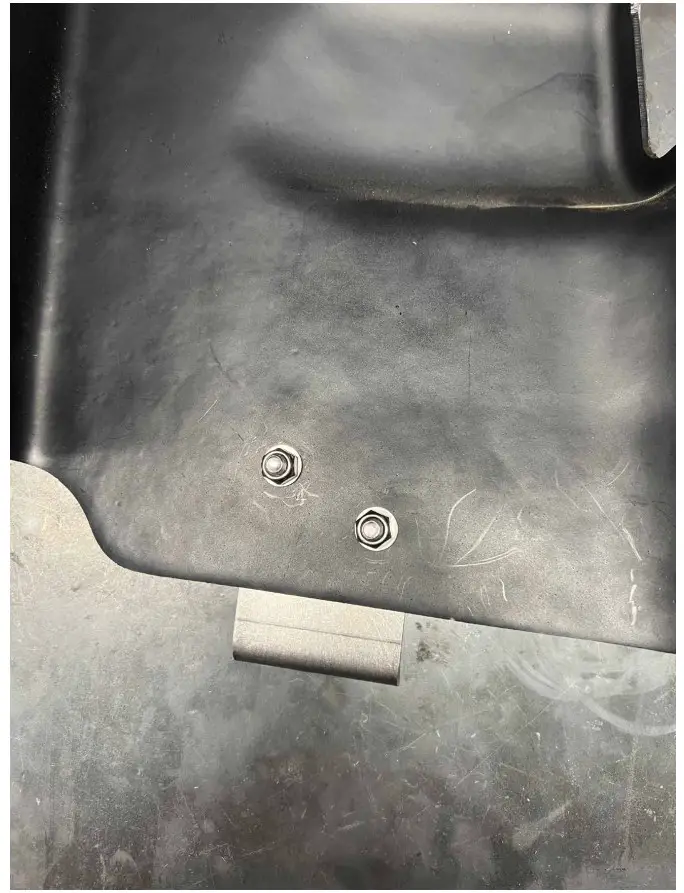

Step 2
Install included bracket to airbox, securing using included hardware. Be sure to place washers on the inside of the airbox.
Step 2.1
Install included bracket to airbox, securing using included hardware. Be sure to place washers on the inside of the airbox.

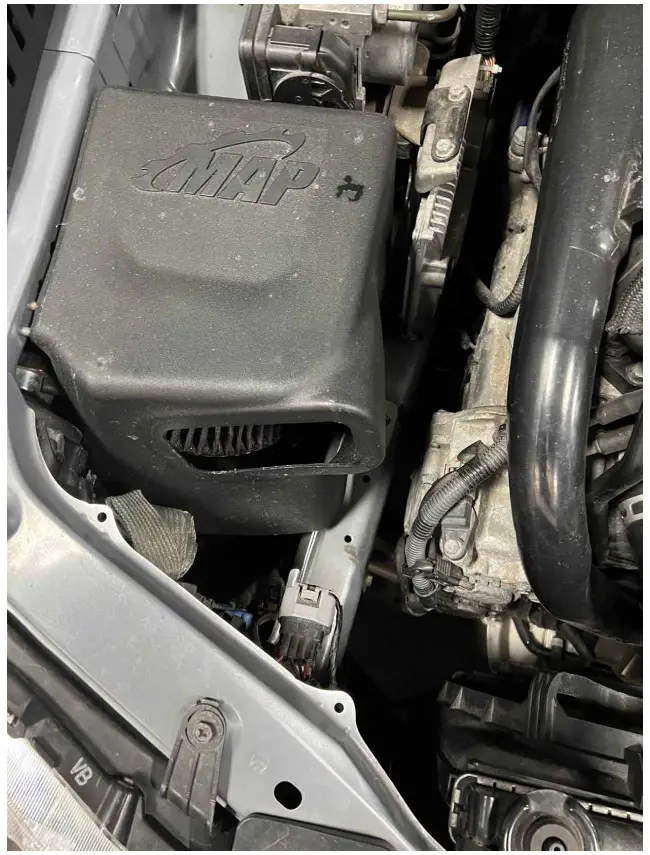

Step 3
Slip MAP WRX airbox over filter, be sure the studs from the OEM filter bracket key into the holes on the MAP airbox

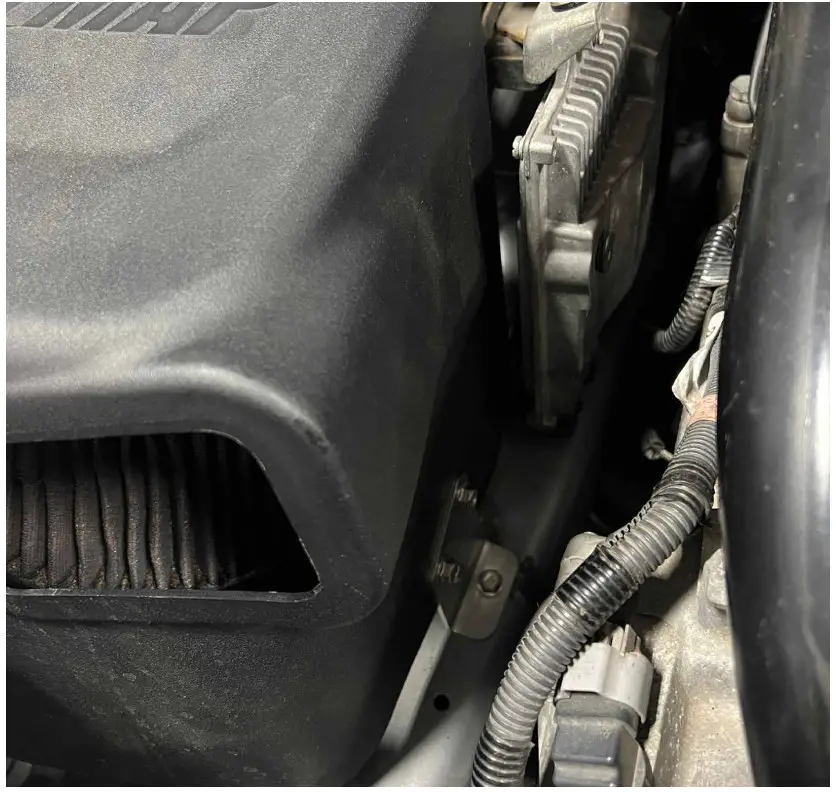

Step 4
Install included 10mm bolt onto the vehicle, securing with the bracket

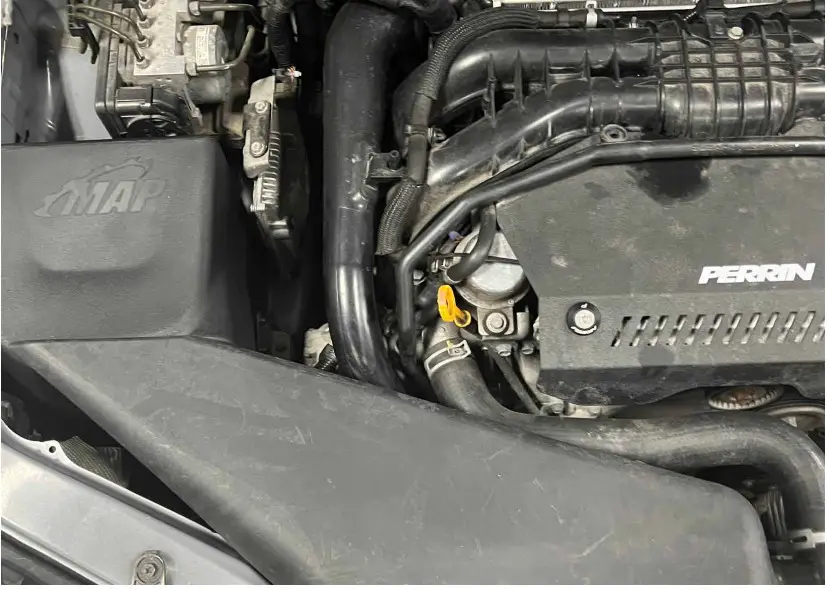

Step 5
Install OEM intake snorkel, securing with OEM push pins
We hope you enjoy your purchase! Reach out to us with any issues or concerns.
