MAP WRX-5G-CB
Install Instructions
What’s in the box :
1x MAP 2022 WRX Front Pipe
1x MAP 2022 WRX Mid Pipe
2x MAP 2022 WRX Axlebacks
2x 3.5” Dual Exhaust Tips (options available)
1x 3” V-Band Clamp
2x 2.5” V-Band Clamp
1x Anti-seize Packet

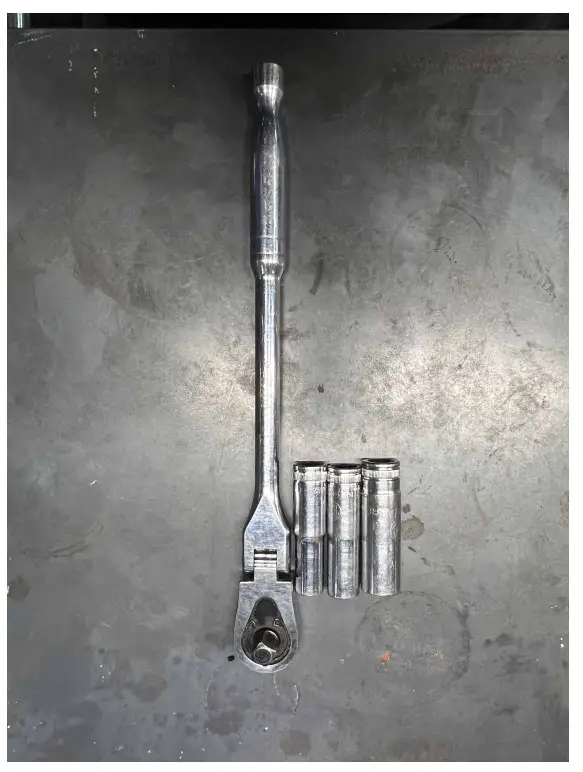

Tools needed
You will need :
3/8ths ratchet
12mm socket
13mm socket
14mm socket

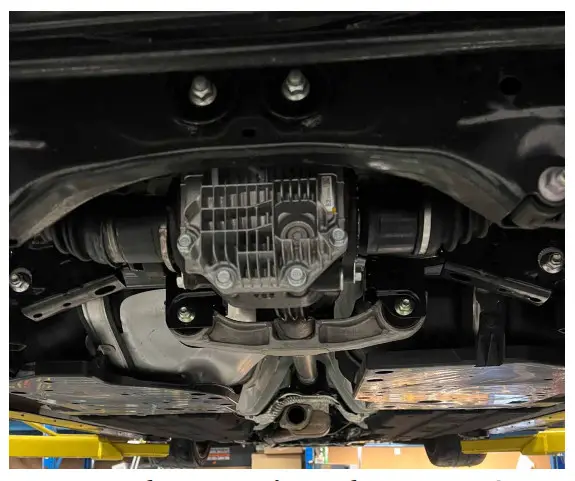

Step 1

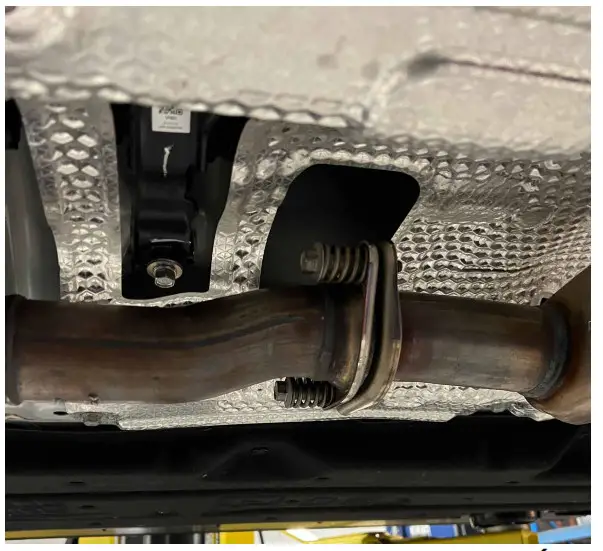

Remove front pipe spring bolts (14mm)

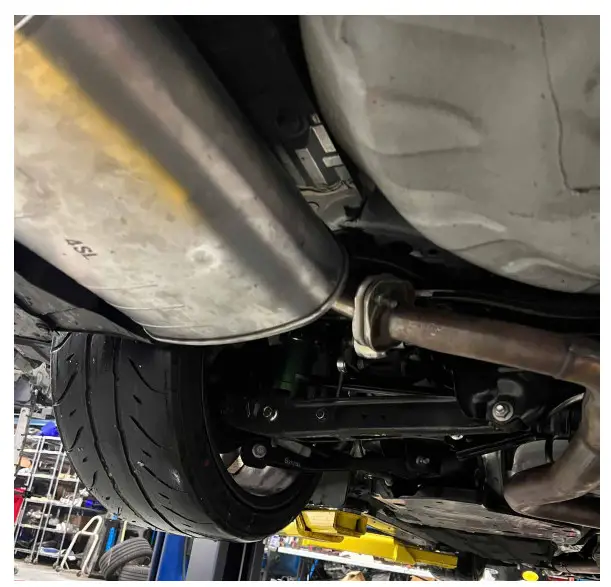

Step 2
Remove both side muffler bolts X4 (14mm)
Step 3
Remove front pipe from exhaust hanger

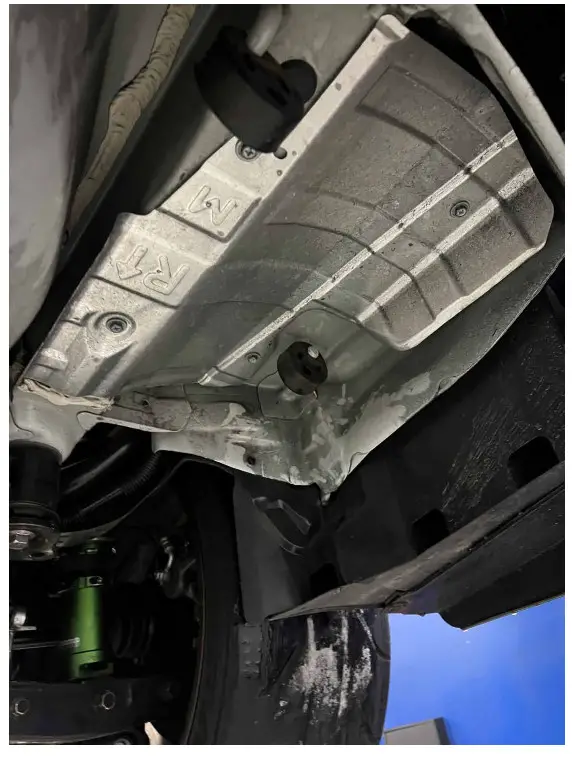

Step 4
Remove both mufflers from their 2 hangers

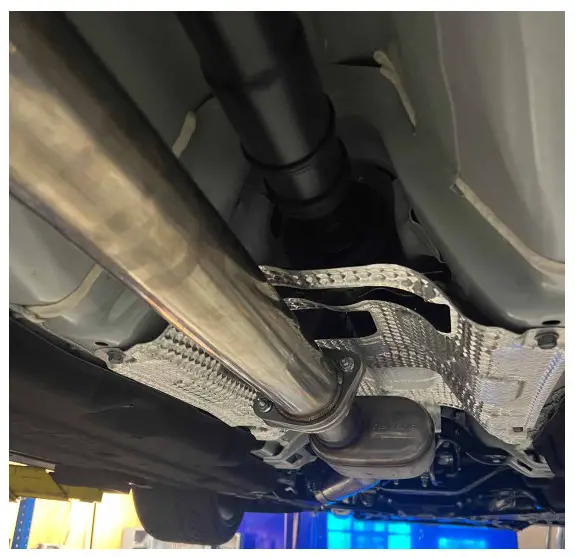

Step 5
Install MAP catback midpipe, securing to the factory turbo back exhaust with included bolts

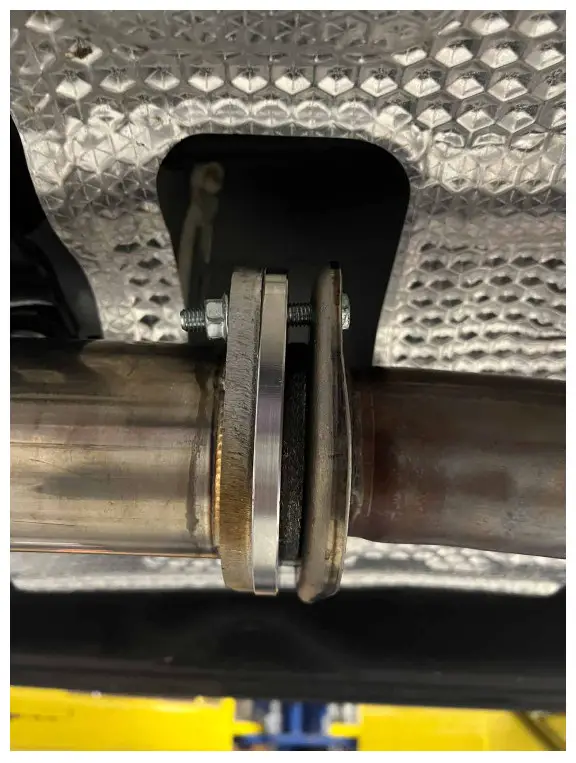

Step 5.1
If installing in conjunction with a factory downpipe, use optional exhaust flange adapter
Step 6

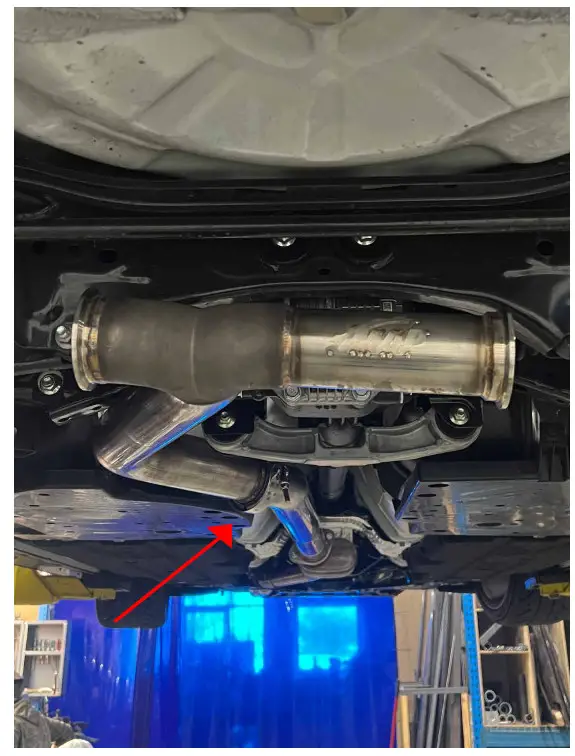

Connect the front pipe to the Y pipe and LOOSELY secure with included vband. Use anti seize
Step 7

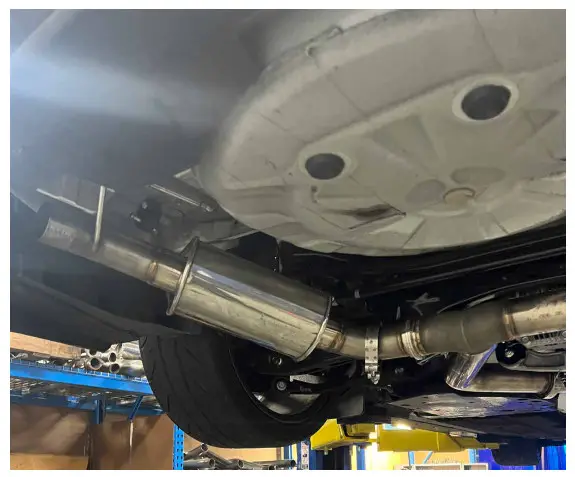

Install both mufflers to their respective hangers and secure with vband loosely. Use anti seize

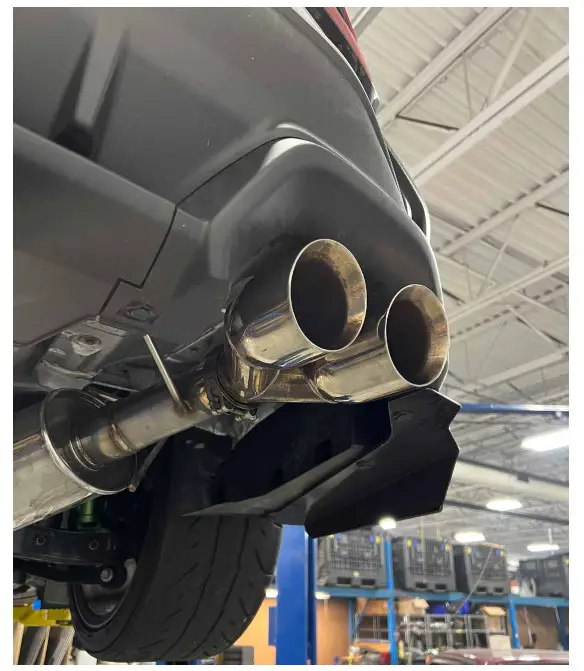

Step 8
Install included MAP tips and clamps onto mufflers. Adjust to desired fitment and tighten clamps with hand tools. Besure to place clamps at the end of the tips to ensure proper clamping force.
Use anti seize on threads

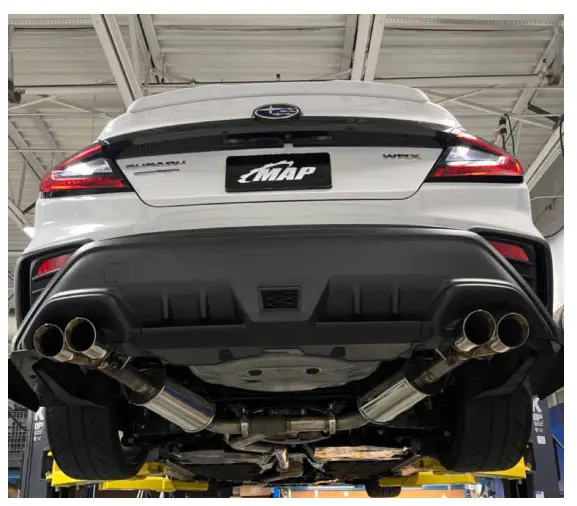

Step 9
Adjust Y pipe and muffler connections to dial in tip fitment within the bumper shroud, tighten from midpipe working backwards until all vbands are tight
We hope you enjoy your purchase! Reach out to us with any issues or concerns.
