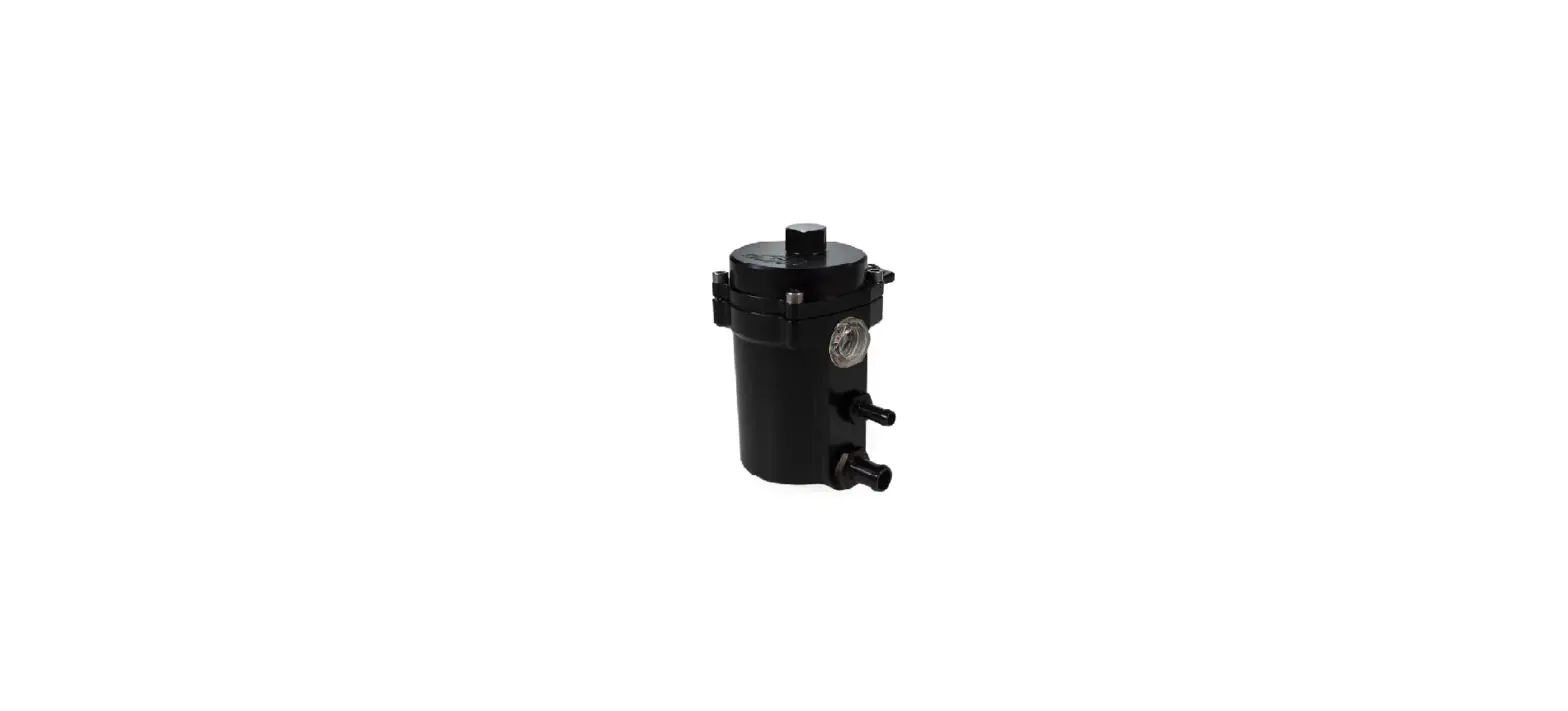

MAPerformance MAP EVOX-PSR Power Steering Reservoir
What’s in the box?

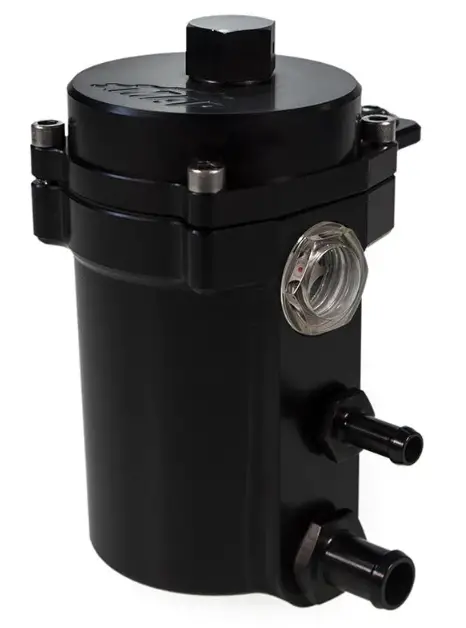

1x MAP Billet power steering tank assembled with all fittings and screen
2x M6 stainless hold-down Allen head flange bolts.

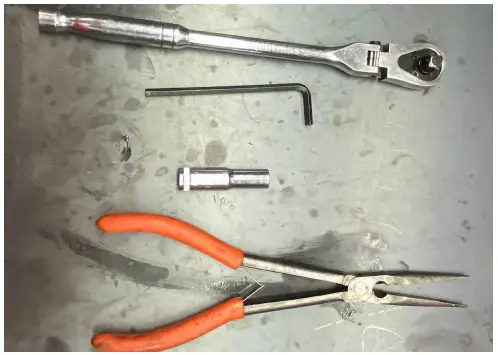

Tools needed
You will need:
- Needle nose pliers
- 5mm allen wrench
- 10mm socket
Step 1

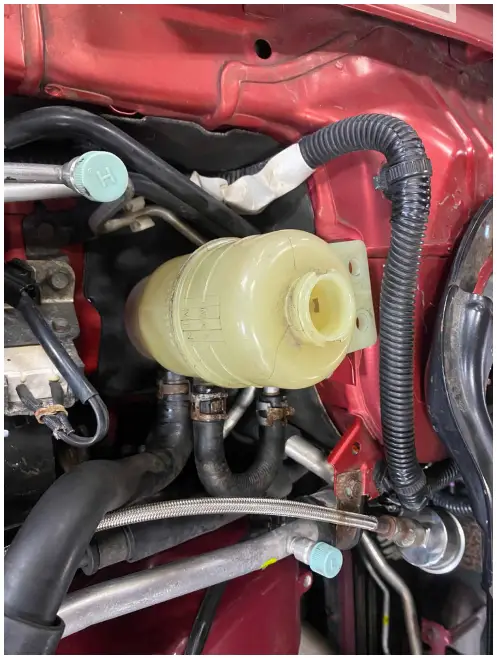

Remove 2 10mm bolts holding factory power steering reservoir to the vehicle
Step 2

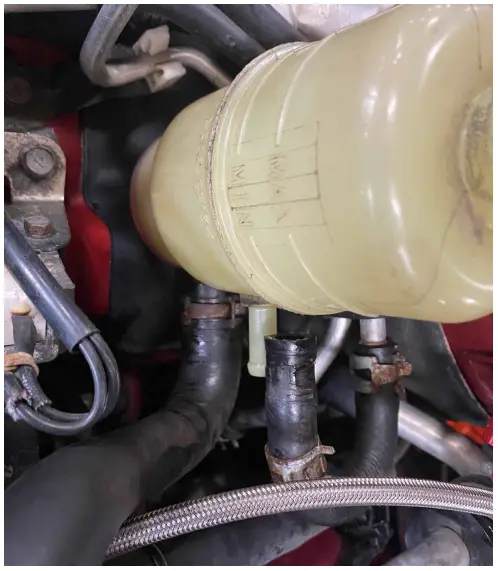

Remove upper power steering reservoir hose from the reservoir. If you own a fluid suction pump now would be the time to remove as much of the power steering fluid in the reservoir as possible
Step 3
Move reservoir to the side and remove the lower hose
Step 4

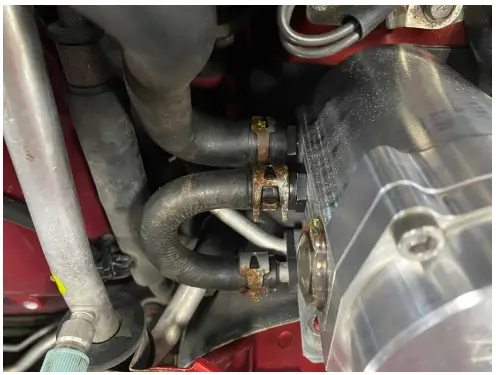

Attach lower hose to MAP evox power steering reservoir
Step 5

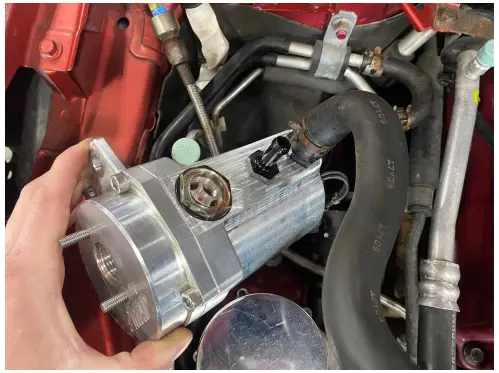

Attach upper hose to MAP evox power steering reservoir
Step 6

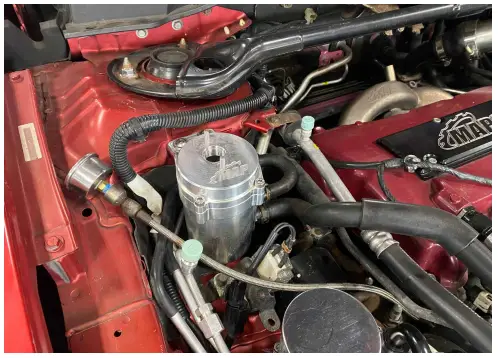

Attach MAP evox PSR to the factory reservoir mounting bracket using uncluded 5mm allen head bolts
Step 7

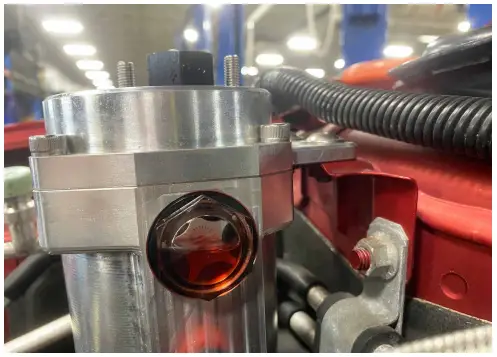

Fill PSR to the halfway point in the sightglass. It is important after install that you start the car, move the wheel side to side a few times and recheck the level to ensure the system is full
We hope you enjoy your purchase! Reach out to us with any issues or concerns.
