PRODUKTDATENBLATT

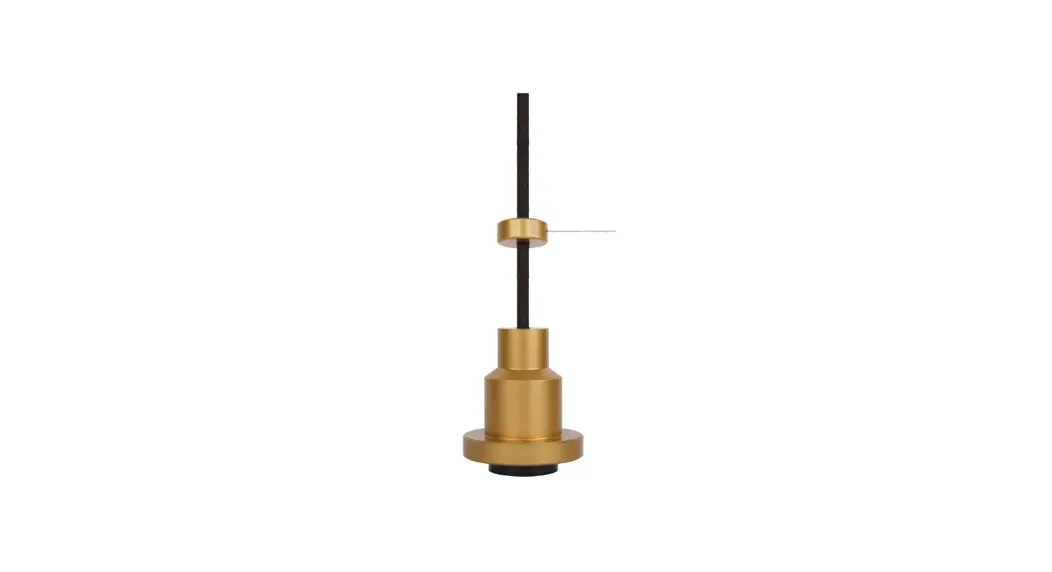

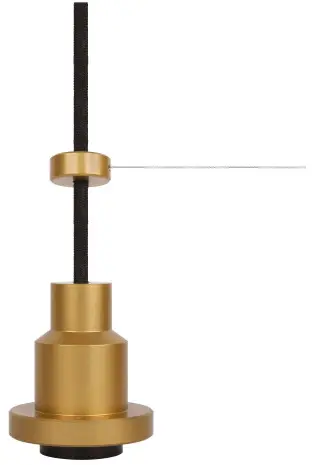

Vintage 1906 PenduLum PRO Gold
Instructions
4058075153875 Vintage 1906 PenduLum PRO Gold
Vintage 1906® PenduLum | Indoor pendant luminaires, vintage style, E27 socket
Areas of application
- Living areas (living rooms, dining rooms, bedrooms etc.)
- Professional (hotels, bars, boutiques etc.)
Product benefits
- Flexible lighting thanks to countless mounting possibilities
- Made of solid aluminum with high-quality appearance
- Semi-matt surface with great look and feel
- Accessories for flexible mounting options included
Product features
- Reduced industrial design
- Made of classic materials
- Special vintage appeal when combined with 1906 LED and halogen lamps
- Flexible mounting options: leash principle
- Available in various colors
TECHNICAL DATA
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | I |
Dimensions & Weight
| Diameter | 68.00 mm |
| Length | 84.00 mm |
| Height | 84.00 mm |
| Product weight | 481.00 g |
| Cable length | 2000 mm |
Materials & Colors
| Product color | Gold |
| Housing color | Gold |
| Body material | Aluminum |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE / REACH / RoHS |
DOWNLOAD DATA
User instruction
Declarations Of Conformity CE
LOGISTICAL DATA
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
| 4.058E+12 | Folding box 1 | 140 mm x 140 mm x 213 mm | 627.00 g | 4.17 dm³ |
| 4.058E+12 | Shipping box 4 | 291 mm x 291 mm x 228 mm | 2764.00 g | 19.31 dm³ |
The mentioned product code describes the smallest quantity unit which can be ordered. One shipping unit can contain one or more single products.
When placing an order, for the quantity please enter single or multiples of a shipping unit.
References / Links
− “Further information at www.edition-1906.com”
DISCLAIMER
Subject to change without notice. Errors and omission excepted. Always make sure to use the most recent release.
December 17, 2022, 19:51:43
Vintage 1906 PenduLum Gold
© 2022, LEDVANCE GmbH. All rights reserved.
ledvance.de/media/resource/original/asset-11503063
