WARNING
WE RECOMMEND INSTALLATION OF THIS LIGHTING FIXTURE BE DONE BY A LICENSED ELECTRICIAN. WARNING *** SWITCH OFF THE MAIN ELECTRICAL SUPPLY FROM THE MAIN FUSE BOX/CIRCUIT BREAKER BEFORE INSTALLATION. INSPECT ITEM CAREFULLY BEFORE ATTEMPTING TO INSTALL. IF THERE IS ANY DAMAGE OR OBVIOUS DEFECT, DO NOT INSTALL. ITEM MAY NOT BE RETURNED ONCE IT HAS BEEN INSTALLED.

NOTICE& IMPORTANT SAFETY INSTRUCTIONS

• Please make sure that you have all parts indicated before you begin assembly of this item
• This item should be assembled on a soft surface to prevent scratching the finish during assembly
• To reduce the risk of fire, electrical shock or injury to persons or property, please follow the guideline below for safe use and installation
• The external flexible cable or cord of this lamp cannot be replaced
  If the cord is damaged, the lamp shall be destroyed

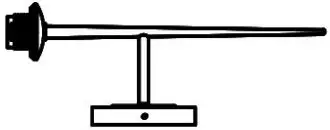

Part List and Hardware List

PIECE	DESCRIPTION	PICTURE	QUANTITY	PIECE	DESCRIPTION	PICTURE	QUANTITY
A	machine Screw		2X	F	Glass Shade		1X
B	Mounting Plate		lx	G	Socket Ring		lx
C	Wire Connections		3X	H	Ring		1X
D	Back Plate		lx	I	Bulb		1X
E	Machine Screw		2X

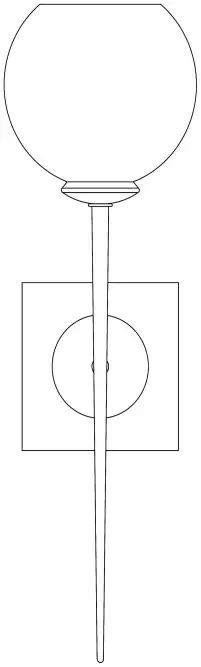

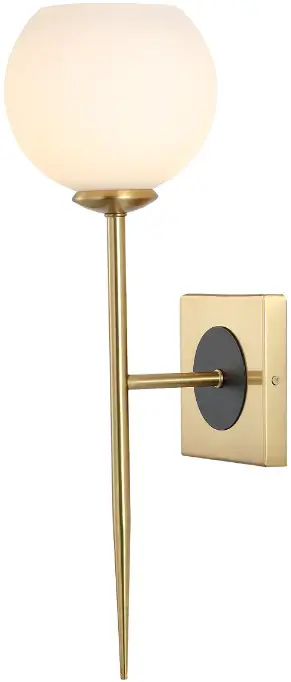

Product Dimensions

6”W X 20″H X 6.75″E

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and
hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 20 minutes

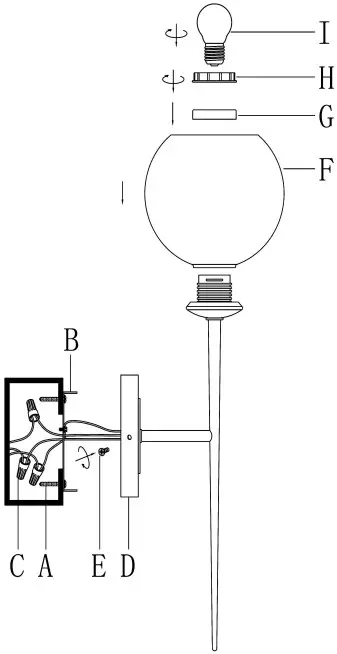

1. Fix the Mounting Bracket(B) to the outlet box with machine Screw(A).
2. Make wire connections, with Wire Connectors(C), following the reference chart listed below.


   Connect, Hot, Black or Red Outlet Supply Wire to:	Connect, Neutral, White Outlet Supply Wire to:
   Black	White
   * Parallel Cord (round & smooth)	* Parallel Cord (square & ridged)
   Clear, Brown, Gold or Black without Tracer (colored stripes)	Clear, Brown, Gold or Black with Tracer (colored stripes
   Insulated Wire (not green) with copper metal conductor	Insulated Wire (not green) with Silver metal conductor

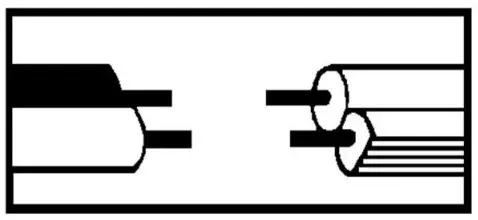

   Note: When parallel wire ( SPT I & SPT II ) is used. The neutral wire is square shaped and ridged and the hot wire will be round in shape and smooth. ( See Illustration on left. )

   Grounding Instructions
   a) For installation in the United States: Wrap ground wire from outlet box around green ground screw on mounting bracket, no less than 2″ from wire end. Tighten ground screw. If fixture is supplied with a ground wire, connect to outlet ground wire with a wire connector.
   b) For installation in Canada: If fixture is supplied with ground wire, wrap ground wire around green grounding screw on mounting bracket. Tighten ground screw.

3. Orient the Back Plate (D) so that the holes in the ears on the side of the mounting bracket are aligned with the holes in the rear plate, and then secure with Machine Screws (E).
4. IInstall the Glass Shade (F) and Socket Ring (G) to the Back Plate(D) and fix it with Ring (H)
5. Install Bulb( I ). Be sure to use light Bulb( I ) with wattage no greater than specified on this fixture. Always make sure that electrical current is turned off before changing bulbs



PLEASUE USE TYPE”A” BULB MAX 40-WATT OR CFL BULB MAX 13-WATT OR LED MAX 9-WATT THERE ARE 1 X 4W LED BULBS IN THE BOX.

ENJOY YOUR LAMP
