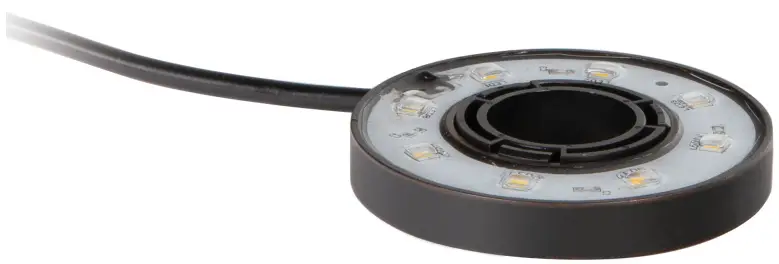

Oase 5512411431 Fountain Ring Led Set Instruction Manual

Oase 5512411431 Fountain Ring LED Set Instruction Manual

WARNING
This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.

Intended use

Only use the product described in this manual as follows:

• As spotlight
• While adhering to the technical specifications. (→ Technical data)

The following restrictions apply to the unit:
Do not use for commercial or industrial purposes.

Symbols on the unit

The unit is dust-tight and water-tight down to 2 m.
The unit is dust-tight and protected for short-term immersion.
The unit has protection rating II and is securely disconnected from the power supply by a reinforced or double insulation.
The unit has protection rating III. Only operate the unit with safety-low voltage.
The unit includes a safety transformer supplying safety-low voltage on the secondary side.
The unit includes a fusible cut-out tripped when the permissible operating temperature is exceeded ( thermal protection).
Only operate the unit at a safe distance of at least 0.5 m from combustible materials.
Protect the unit from direct sunlight.
Do not dispose of the unit with normal household waste.
Read the operating instructions.

Safety information

Electrical connection

• Special regulations apply for electrical installation in outdoor spaces. Only a qualified electrician may perform the electrical installation.
  • The qualified electrician has the necessary professional training, knowledge and experience to perform electrical installation in outdoor spaces. The electrician can detect potential dangers and knows how to adhere to regional and national standards, regulations and directives.
  • For your own safety, please consult a qualified electrician.
• Only use the transformer included in the scope of delivery.
• Only plug the unit into a correctly installed outlet.
• Only connect the unit if the electrical data of the unit and the power supply match.
• Ensure that the unit is protected via a fault current protection device with a rated fault current of max. 30 mA installed in the mains. If necessary, contact a qualified electrician.
• Protect open plugs and sockets from moisture.

Safe operation

• Do not look directly into the light source.
• Do not use the unit, if electrical lines or the housing are damaged.
• A damaged connection cable cannot be replaced. Dispose of the unit.
• Do not carry or pull the unit by its power cable.
• Route lines in such a way that they are protected from damage and do not present a tripping hazard.
• Should problems occur, please contact the authorised customer service or OASE.

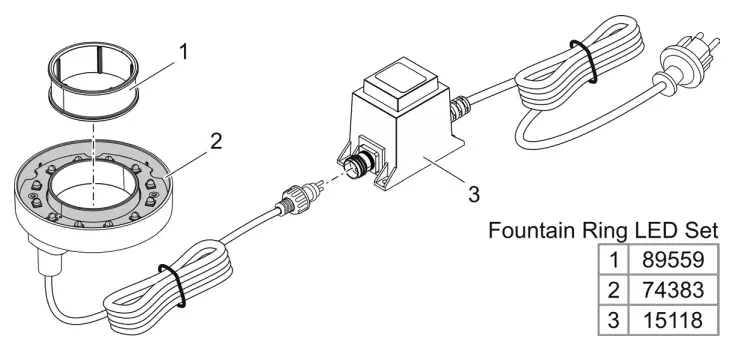

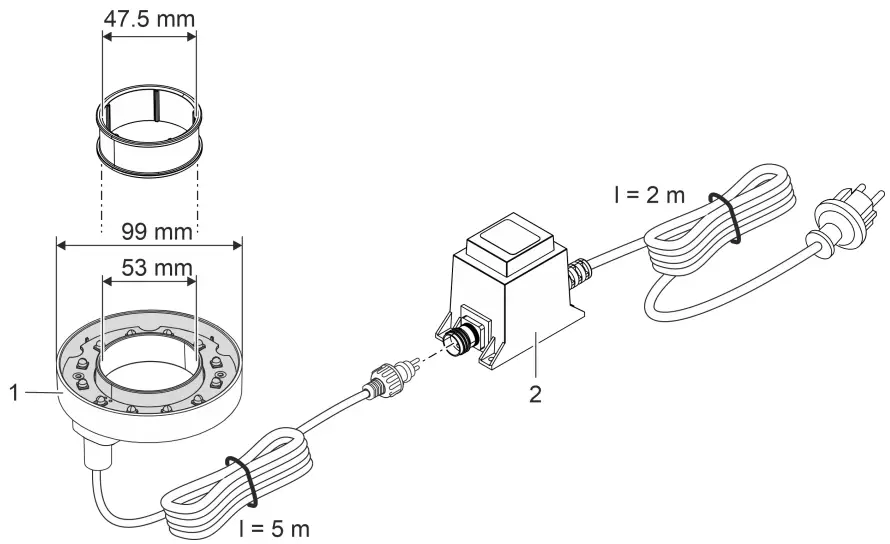

Product Description

1. LED ring
2. Transformer

Assembly and start-up

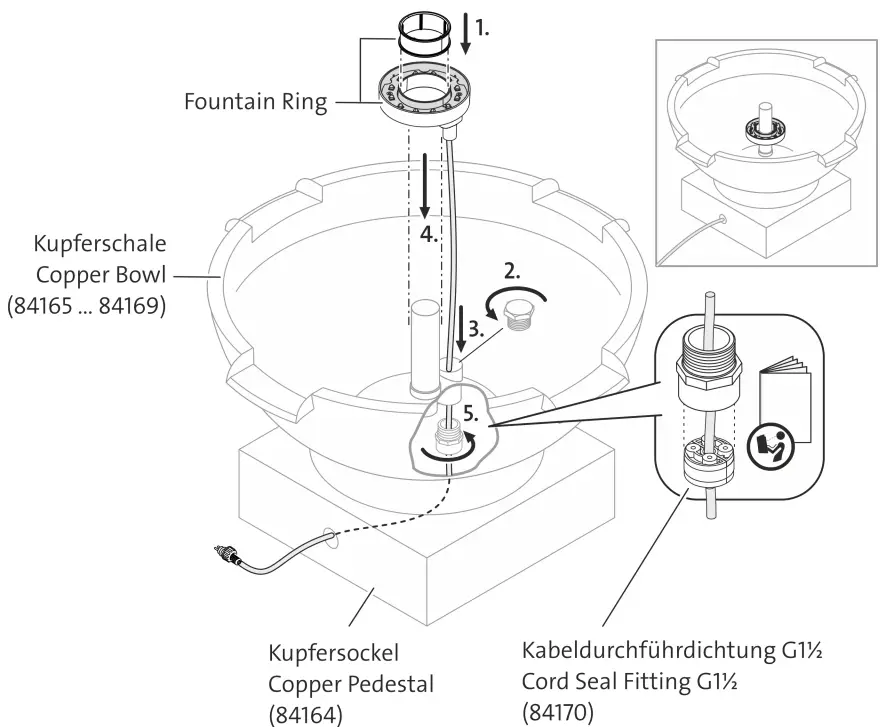

Assembly on an OASE copper bowl

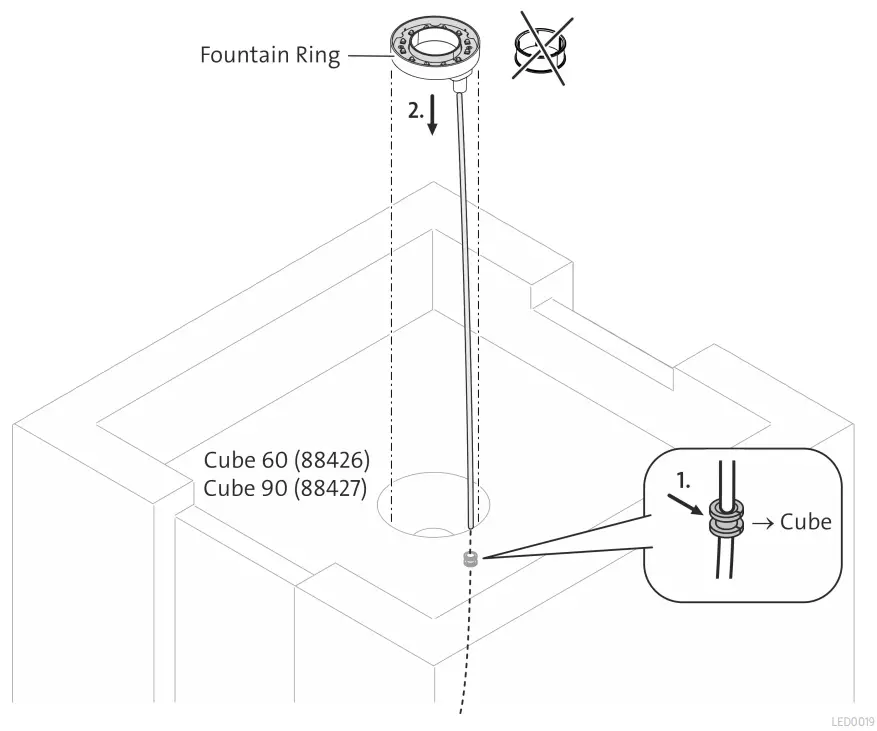

Assembly on an OASE cube

Installation and connection

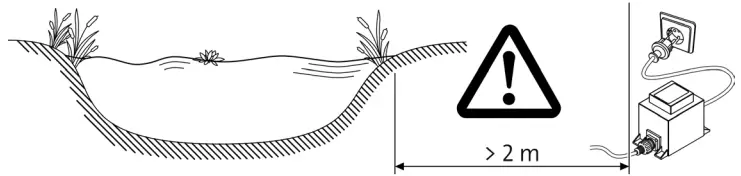

Position the transformer at least 2 m from the edge of the pond.

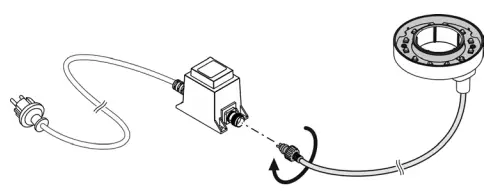

Connect the connection cable of the spotlight to the socket on the transformer and handtighten the union nut.

Switching ON/OFF

Switching on the unit: Plug the power plug of the transformer into the socket. The unit switches on immediately.
Switching off the unit: Disconnect the transformer power plug.

Maintenance and cleaning

NOTE
Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.
Clean the device only with clear water and a soft brush or sponge.

Technical data

Disposal

NOTE
Do not dispose of this unit with household waste.

• Dispose of the unit by using the return system provided for this purpose.
• Should you have questions, please contact your local disposal company. They will give you information on how to correctly dispose of the unit.
• Render the unit unusable by cutting the cables.
