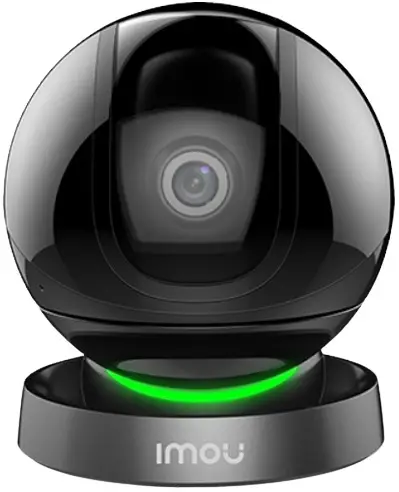

Imou Ranger IQ IP-Camera User Guide

Contents hide

1 Welcome

2 Package content

3 Camera introduction

4 Adding sensors (Optional)

5 Ceiling Mounting (Optional)

6 Troubleshooting

7 Documents / Resources

7.1 References

8 Related Posts

Welcome

Thank you for choosing IMOU.
We are devoted to provide you easy smart home products.
If you have problems using the product, please contact our service team before returning your product.

Our service mail: [email protected]

Frequently asked questions can be found at imoulife.com/support/help

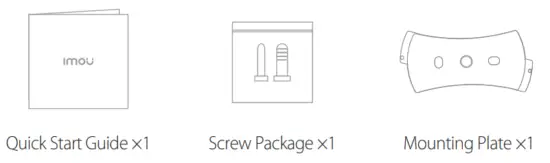

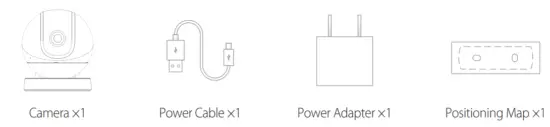

Package content

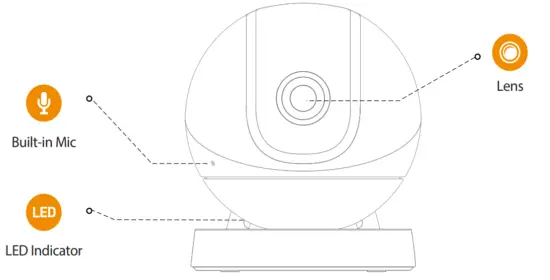

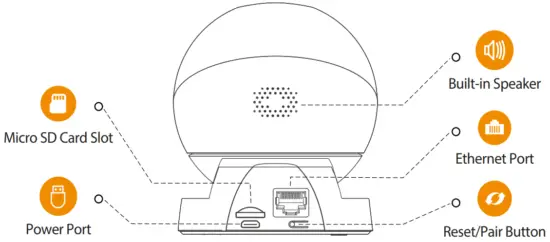

Camera introduction

Note:

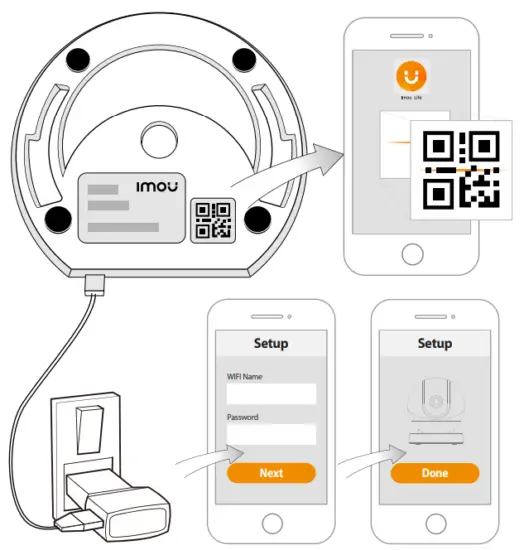

Press the reset/pair button to enter pairing mode.
Press and hold the reset/pair button for 10 seconds to reset the camera.

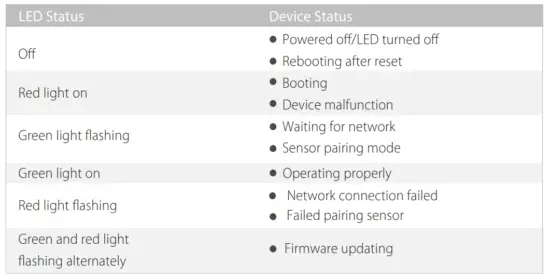

The pattern of the LED indicator is included in the following table.

Tips

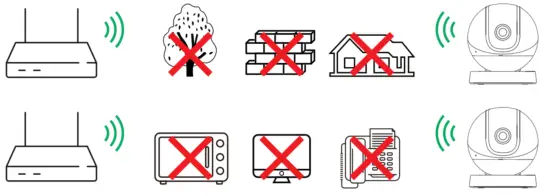

To ensure the best possible wireless performance, please make sure there are no obstacles and electromagnetic interference between the camera and router.

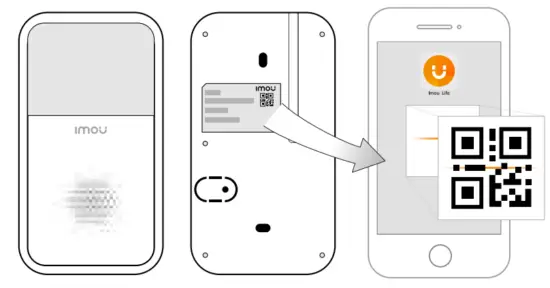

Adding sensors (Optional)

Tips Please refer to the Quick Start Guide of sensor for further information.

Ceiling Mounting (Optional)

Troubleshooting

Problem	Solution
Cannot set up camera	Ensure your mobile device and the camera are within range of your Wi-Fi router. Ensure the LED indicator on the camera isﬂashing green before beginning setup.
The APP says “Failed to conﬁgure device network”	Reset your Camera and connect it again. Some cameras only support 2.4GHz, while some routers have dual band, 2.4G/5G. Make sure you are connecting 2.4GHz only.
The app says “Failed to bind”	The camera is already connected to Wi-Fi, but the router is: Not connected to Internet Poor network status The Wi-Fi signal is not stable due to obstacles or electronic interference
No picture / signal	Ensure the LED indicator on the camera is ﬂashing steady green. See ‘LED Status’ section for details if otherwise. Ensure the camera is properly connected to power using the included USB power adapter. Try repositioning the camera, router, or both to improve signal strength.
Picture is not clear	Check the camera lens for dirt, dust, spider webs. Clean the lens with a soft, clean cloth. Remove the vinyl cover on the camera lens.
No audio	Ensure audio function on camera is turned on. Ensure audio is turned up on viewing device.
Human detection not working	Ensure you have enabled “Human Detection” in the Device Settings screen of the Imou LifeApp.
Camera stuck downwards	Turn oﬀ Camera Shielding in Device Settings on the Imou Life app.

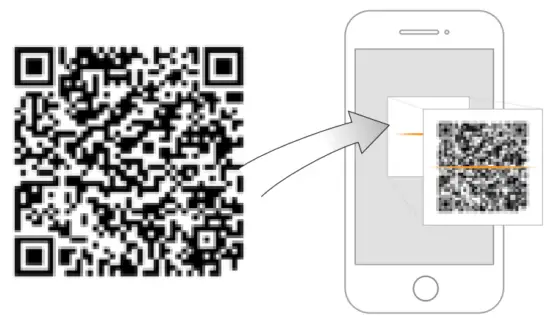

Phone is not reading QR code	Clean the camera lens of your Smartphone Ensure that there is enough light on the QR code Don’t hold the QR code too close to the camera

This product complies with the applicable CE marking directives and standards:

Low Voltage (LVD) Directive 2014/35/EU.
Electromagnetic Compatibility (EMC) Directive 2014/30/EU.
Restrictions of Hazardous Substances (RoHS) Directive 2011/65/EU and its amending Directive (EU) 2015/863.

A copy of the original declaration of conformity may be obtained from Dahua Technology. The most up to date copy of the signed EU Declaration of Conformity (DoC) can be found www.imoulife.com/declaration-of-conformity

CE-Electromagnetic Compatibility (EMC)

This digital equipment is compliant with Class B according to EN 55032.

CE-Safety

This product complies with IEC/EN/UL 60950-1 or IEC/EN/UL 62368-1, Safety of Information Technology Equipment.

Declaration of Conformity CE
(Only for the product has RF function)

Hereby, Dahua Technology declares that the radio equipment is compliant with Radio Equipment Directive (RED) 2014/ 53/EU. The full text of the EU declaration of conformity is available at www.imoulife.com/declaration-of-conformity

ISO 9001:2000
