SmartGen BAC06CF Battery Charger

• SmartGen — make your generator smart
• SmartGen Technology Co., Ltd.
• No.28 Jinsuo Road, Zhengzhou, Henan Province, China Tel: +86-371-67988888/67981888/67992951
• +86-371-67981000(overseas)
• Fax: +86-371-67992952
• Email: [email protected]
• Web: www.smartgen.com.cn www.smartgen.cn

All rights reserved. No part of this publication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or other) without the written permission of the copyright holder. Applications for the copyright holder’s written permission to reproduce any part of this publication should be addressed to Smartgen Technology at the address above. Any reference to trademarked product names used within this publication is owned by their respective companies. SmartGen Technology reserves the right to change the contents of this document without prior notice.

Software Version

OVERVIEW

Fit with up-to-date power supply device, float charger BAC06CF is specially designed for meet the charging characteristics of the lead-acid engine starter batteries and can be used for long-term float charging of 12V lead-acid batteries. The maximum output current of 12V charger is 6A, and the maximum output current of 24V charger is 3A.

PERFORMANCE AND CHARACTERISTICS

• Switch power supply structure, wide input alternating voltage range, small size, light weight, high efficiency rate;
• Automatic two-stage charging process carried out according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
• Built-in output current protective circuit, which can give effective protection when output over current, short-circuit or reverse connection occurs. After troubleshooting over current, short-circuit or reverse connection, the output will be recovered automatically.
• With port of mains failure alarm, the port will close immediately while occurring AC input outage.
• Suitable for 12V or 24V storage battery, the corresponding types are BAC06CF-12V and BAC06CF-24V.
• LED display: float charging indicator and charging indicator.

CHARGING PRINCIPLE

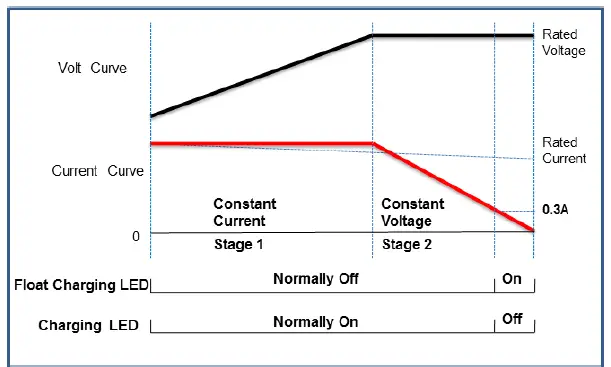

Charging is performed according to the battery charging characteristics using two-stage method.

• The first stage is named as ‘constant current’: when the battery terminal voltage falls below the pre-set value;
• The second stage is named as ‘constant voltage’: when the battery terminal voltage exceeds the pre-set value, charging current will decrease with the rising of terminal voltage until the pre-set current value is reached; then Chargers automatically return to float mode. As soon as charging current value falls below 0.3A and the constant voltage value is reached, the battery is basically charged (charging indicator will extinguish). After that charging current will only neutralize the battery self discharge. Even long-term charging cannot harm the battery, as charger can keep the battery fully charged and so guarantee long lifetime of the battery.

PARAMETERS CONFIGURATION

OPERATION

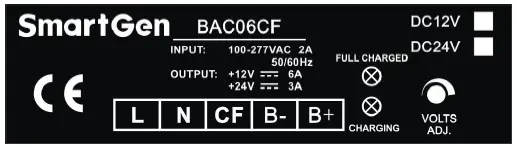

BAC06CF MASK

NOTE:
There is a 10A protector tube in the charger output terminal. This protector will be burned and there is no output voltage if output connection is reversed. Under this condition, the charger will work a fter replacing protector tube.

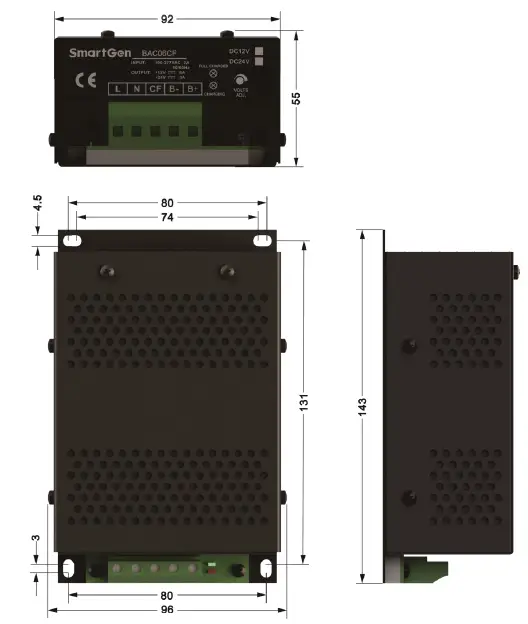

CASE DIMENSIONS

TYPE SELECTION
