OVERVIEW
Fit with up-to-date power supply device, battery charger BAC1203VL is specially designed for meeting the charging characteristics of lead-acid batteries and can be used for long-term supplement (float) charging of 12V battery pack.
PERFORMANCE AND CHARACTERISTICS
It has the following characteristics:
- Applies switch power supply structure, wide range and low input voltage, small size, light weight, high efficiency rate;
- Applies automatic two-stage charging process (first constant current, then constant voltage) according to storage battery charging characteristics to prevent overcharging and significantly prolong battery lifetime;
- Short-circuit protection function;
- Suitable for 12V storage battery with maximum charging current 3A;
- LED display: Power indication and charging indication;
CHARGING PRINCIPLE

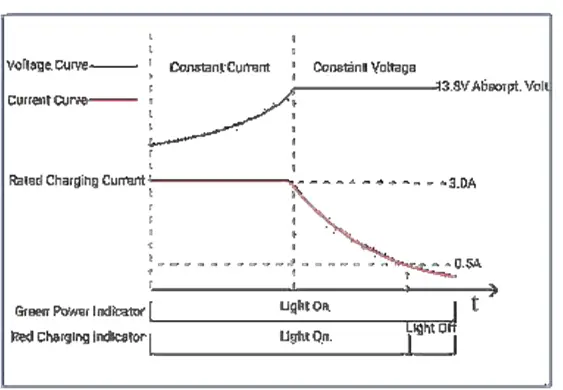

Figure 1 Charging Principle Diagram
Charging is performed according to the battery charging characteristics by two-stage method. Charging type is ‘constant current type’, which means that when the battery terminal voltage falls below the pre-set value, charging current will be constant; when the battery terminal voltage exceeds the pre-set value, charging current will decrease with the rising of terminal voltage until the pre-set current value is reached; then chargers automatically return to float mode. At this time charging current gets smaller and smaller gradually. The terminal voltage also gets higher and higher to the pre-set value gradually. when the charging voltage gets over 13.5V, battery is fully charged in a degree. Afterwards charging current only offsets battery’s self discharging. long-term charging does no harm to the battery. That is, charger can keep the fully charged status of the battery and also can ensure the usage life of the battery.
PARAMETERS CONFIGURATION
Table 2 Technical Parameters
| Items | Contents | 24V |
| Input Characteristics | Nominal AC Voltage | AC (16~36)V |
| Max. AC Current | 3.5A | |
| No-load Power Consumption | <2W | |
| AC Frequency | 45Hz~65Hz | |
| Max. Efficiency | 80% | |
| Output Characteristics | No-load Output Voltage | 13.8V, error±2% |
| Rated Charging Current | 3.0A, error±5% | |
| Max. Output Power | 40W | |
| Working Condition | Working Temperature | (-30~+70)°C |
| Storage Temperature | (-40~+85)°C | |
| Working Humidity | 20%RH~93%RH ( No condensation) | |
| Shape Structure | Weight | 150g |
| Dimension | 80mm×35.5mm×65mm (length*width*height) |
OPERATION
Figure 2 BAC1203VL MASK
Table 3 Wire Connection Description
| Mark | Function | Description |
| 1 | Output Positive | Connects battery positive; over BVR 1.5mm2 multi-strand copper line is recommended. |
| 2 | Output Negative | Connects battery negative; over BVR 1.5mm2 multi-strand copper line is recommended. |
| 3 | Ground Terminal | Ground connected terminal; |
| 4 | AC Input Terminal | Terminal L, N shall connect (6-36)V; over BVR 1.5mm2 multi-strand copper line is recommended. |
| 5 | ||
| Red Indicator | Charging Indicator | It illuminates when the charger is charging. |
| Green Indicator | Power Indicator | It illuminates when the charger is working. |
NOTE1: When this is applied on genset, charging current shall produce voltage drop on charging line. so it is recommended to separately connect charging line to battery terminals to prevent affecting sensor precision of collecting samples.
CASE DIMENSIONS

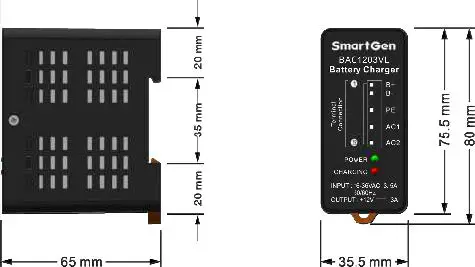

Figure 3 BAC1203VL Guide Rail Installation Size
Figure 4 BAC1203VL Screw Installation Size
APPENDIX: PACK LIST
Table 4 Pack List
| No. | Accessory | Quantity | Remark |
| 1 | BAC1203VL | 1 | |
| 2 | Connecting Plug | 1 | |
| 3 | Contact Pin | 5 | |
| 4 | Quality Certificate | 1 | |
| 5 | User Manual | 1 |
