Autel Maxibas Bt608 Battery And Electrical System Diagnostics Tool User Guide

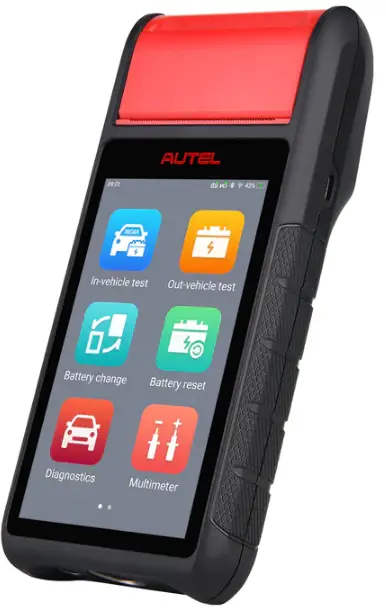

AUTEL MaxiBAS BT608 Battery and Electrical System Diagnostics Tool

Please be advised this tool ships with minimal, non-vehicle specific software.
To download software to use on the vehicles you service, the tool must be registered first. Please follow the following steps:

REGISTER TOOL

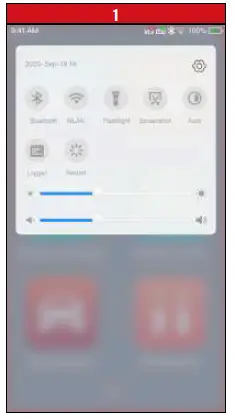

• Power on the BT608. Swipe down from the top of the screen and a drop-down menu will display.
• Long press the WLAN icon to enter the WLAN setting menu.

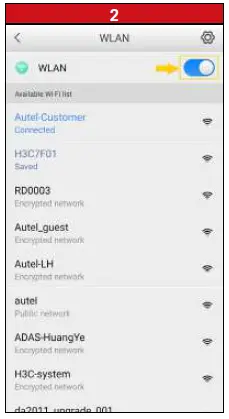

• Swipe the WLAN toggle to turn on the Wi-Fi.
• Select your network and enter password to sign in.

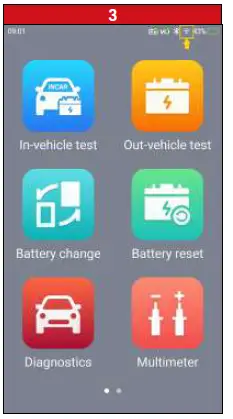

  • The Wi-Fi icon will display at the top right corner of the screen when connection is established.

REGISTRATION VIA TABLET

•  After the device is connected to Wi-Fi, access Update

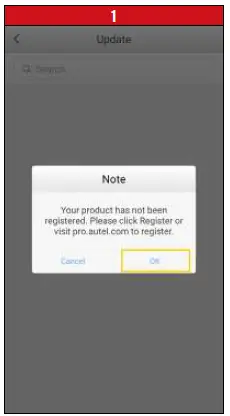

  • A dialog box will display asking you to register your tool.
• Tap OK.

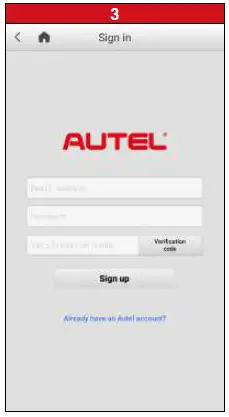

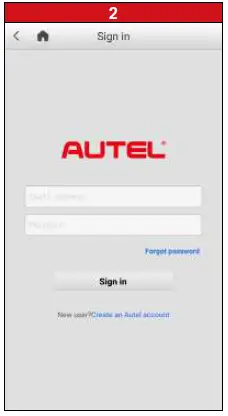

  • A sign-in screen will display
• Create an Autel ID using an accessible email address.
• Enter your email address, password and tap Verification code
• Check your email for the verification code, enter the verification code, and tap Sign up

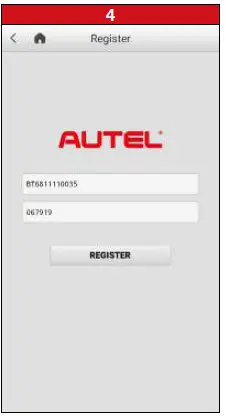

  • The serial number and password fields will be automatically completed.
• Tap REGISTER

REGISTRATION VIA A WINDOWS-BASED PC

• Using a computer, launch an Internet browser and go to http://pro.autel.com

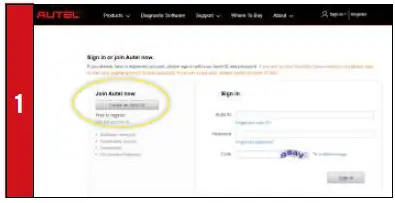

• Click Create Autel ID on the left side of the screen
• If you already have an Autel ID, sign in and skip to Step 6

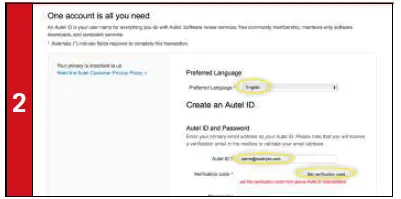

• Set preferred language
• Enter your email address as Autel ID
• Click Get Verification Code

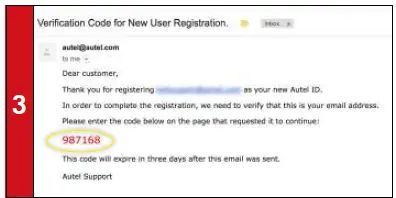

  • An email titled “Verification Code for New User Registration”will be sent to you.
• Open email and copy the 6-digit verification code
• Return to http://pro.autel.com to continue registration

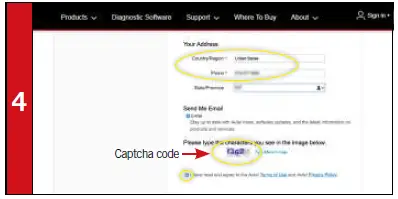

• Enter verification code and all other required information marked with a red asterisk
• Enter Captcha code as shown
• Read the Autel Terms of Use and Privacy Policy and select the check box
• Click Create Autel ID at the bottom of the screen.

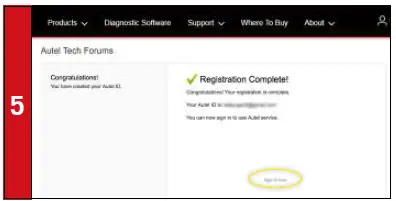

  • Registration Complete screen will display.
• Click Sign in Now and log in

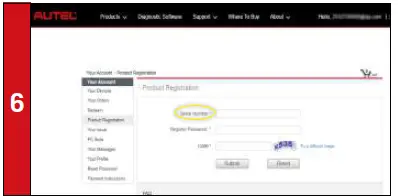

• Select Product Registration from the menu list
  • Product Registration screen will display.

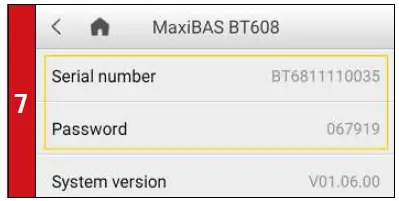

• To locate the tool’s serial number and password: from the Main Menu select the Setting icon and tap About

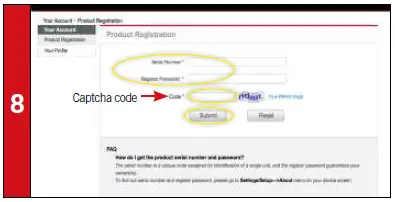

• Input your tool’s Product Serial Number and Password
• Type Captcha code as shown
• Click Submit to complete tablet registration

DOWNLOAD SOFTWARE

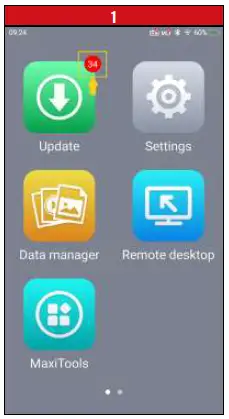

• • If updates are available, the number of available updates will display above the green Update button

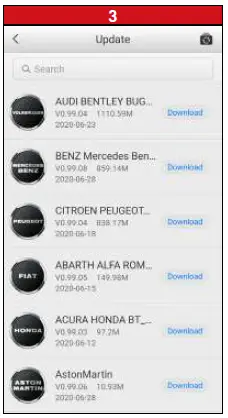

• Select the Update button to view a list of available updates.

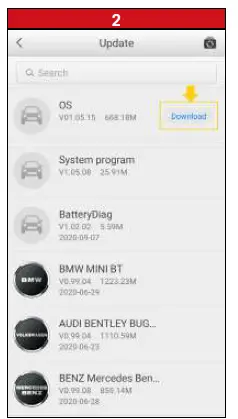

• Download the system update by selecting the Download button on the right.
• Download update for each vehicle man- ufacturer you service

DOWNLOAD BAS FIRMWARE

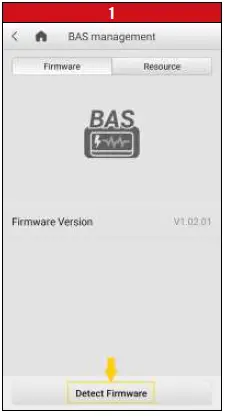

• Select Settings from the main screen and tap BAS management
  • On the Firmware tab page, select Detect Firmware.
  • A dialog box will display when new firmware version is available.

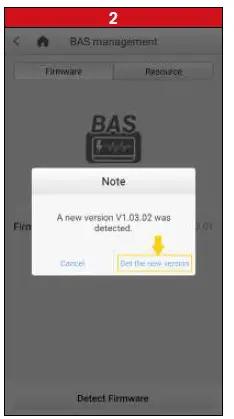

• Select Get the new version to download the new BAS firmware.

PAIR VCI TO TABLET

PAIR TABLET WITH VCI VIA BLUETOOTH

• Connect the VCI to a vehicle or USB power source

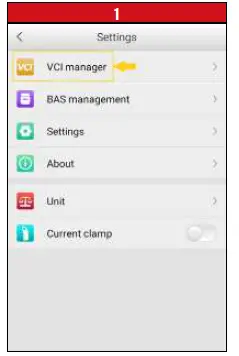

• Select Settings from the main screen and tap VCI manager.

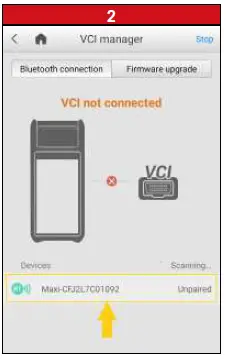

  • Your tool will automatically start scanning for available VCI devices. Found devices are listed on the bottom of the screen.

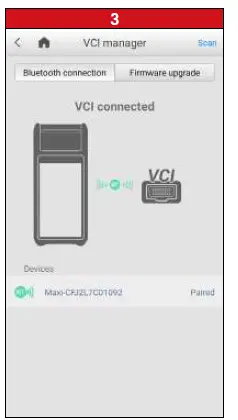

• Press your VCI device serial number to pair the tablet with VCI.
  • – A green bluetooth icon will display when the tool and VCI are paired.

CHECK FOR VCI FIRMWARE

• Connect the VCI to a vehicle and turn ignition on.
• Select Settings from the main screen and tap VCI manager

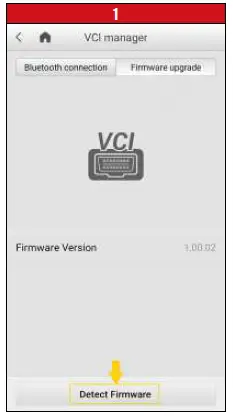

• On the Firmware upgrade tab page, select Detect Firmware
  • A dialog box will display when new firmware version is available.

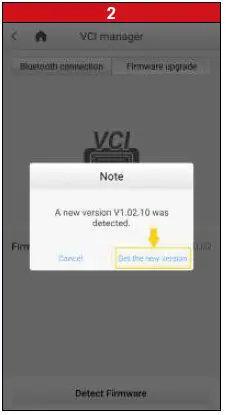

• Select Get the new version to download the new VCI firmware.

PRINT VIA WINDOWS PC TO WI-FI PRINTER

Works with any printer with a Wi-Fi connection. No need for special software or driver on the tablet.

• Make sure your Window PC and tablet are on the same Wi-Fi network
• On your computer, go to Autel.com, select Support > Downloads > Autel Update Tools
• Locate the MaxiSYS PC Suite software and click on the Download Here 　button

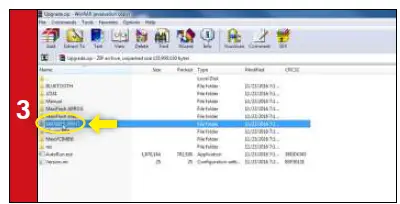

• Open the zip file
• Select MaxiSYS Print, then click the setup.exe file to install the program

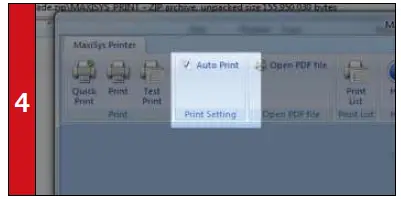

• Within the program dialogue box, check Auto Print to automatically use the default 　printer
• Select Quick Print to use the default printer or select Print to choose a printer

ONLY REGISTERED AUTEL TOOLS CAN DOWNLOAD SOFTWARE UPDATES
