Vantron Tmc156 Medical Grade Touch Monitor Instruction Manual (+ PDF)

Power Input: Connect the 12V DC adapter to the power input of
the touch monitor.
Video Interface: Connect a VGA or HDMI cable to the
corresponding video interface of the touch monitor.
Installation: Mount the touch monitor using a VESA mount (75 x
75mm).
On-Screen Display (OSD): Set up the touch monitor using the OSD
keys (Menu, Up, Down, Select, Power).
Brightness, Contrast Ratio, and Color Temperature Adjustment:
Use the OSD controls to adjust the brightness, contrast ratio, and
color temperature according to your preference.
Language Adjustment: Use the OSD controls to select your
preferred language.
Temperature and Humidity: Ensure that the touch monitor is
operated within the specified temperature and humidity range
mentioned in the user manual.
MTBF (Mean Time Between Failures): The touch monitor has an
excellent longevity with an MTBF of 50,000 hours.
Warranty: The touch monitor is covered by a warranty. Refer to
the user manual for warranty details.
ESD Certificate: The touch monitor has an ESD certificate,
ensuring protection against electrostatic discharge.

For further information and support, visit the Vantron website:
www.vantrontech.com

View Fullscreen

Vantron | Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions

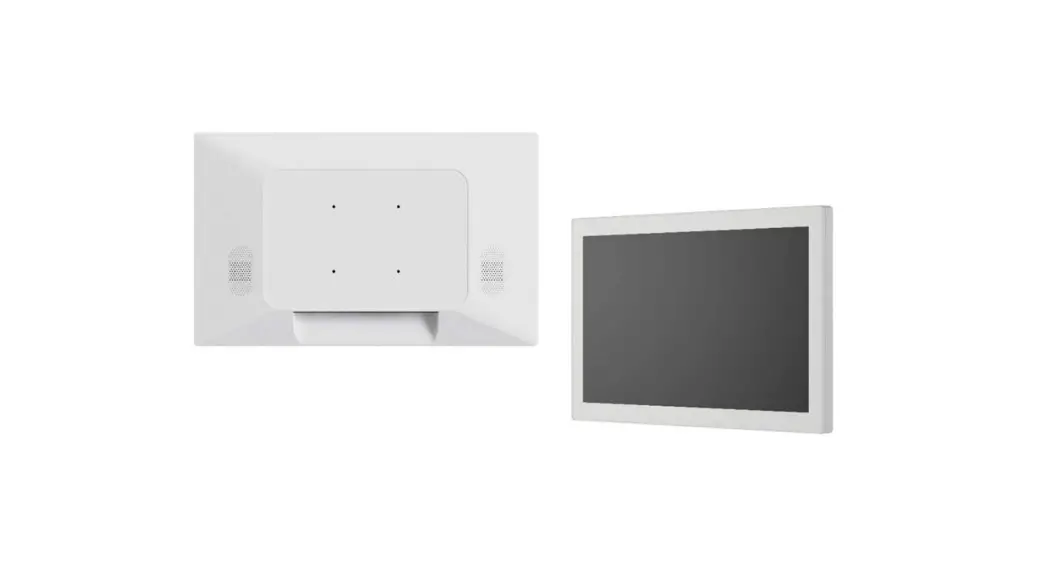

TMC156 Medical Grade Touch Monitor

Product Brief Introduction
Chengdu Vantron offers medical grade closed-frame touch monitors that vary in screen size from 15.6 inches to 27 inches and resolution from 1280 x 1024 to 1920 x 1080. When used with Vantron industrial panel PCs, such touch monitors will offer flexible solutions for customers to meet the requirements of application in different scenarios, in particular in the medical health area.
TMC156 medical grade touch monitor applies 15.6-inch screen and features quick response time, large visible area and viewing angle to optimize the display performance. The screen is designed to be anti-fingerprint, and users have the option to equip the touch screen with anti-glare and anti-reflection coatings that offer excellent visual experience and improve human-machine interaction accuracy. Moreover, TMC156 is designed with VESA hole patterns to simplify mounting onto a variety of stands, arms, walls or medical carts. The OSD controls allow users to change settings of the display in a more convenient manner to enhance user experience.

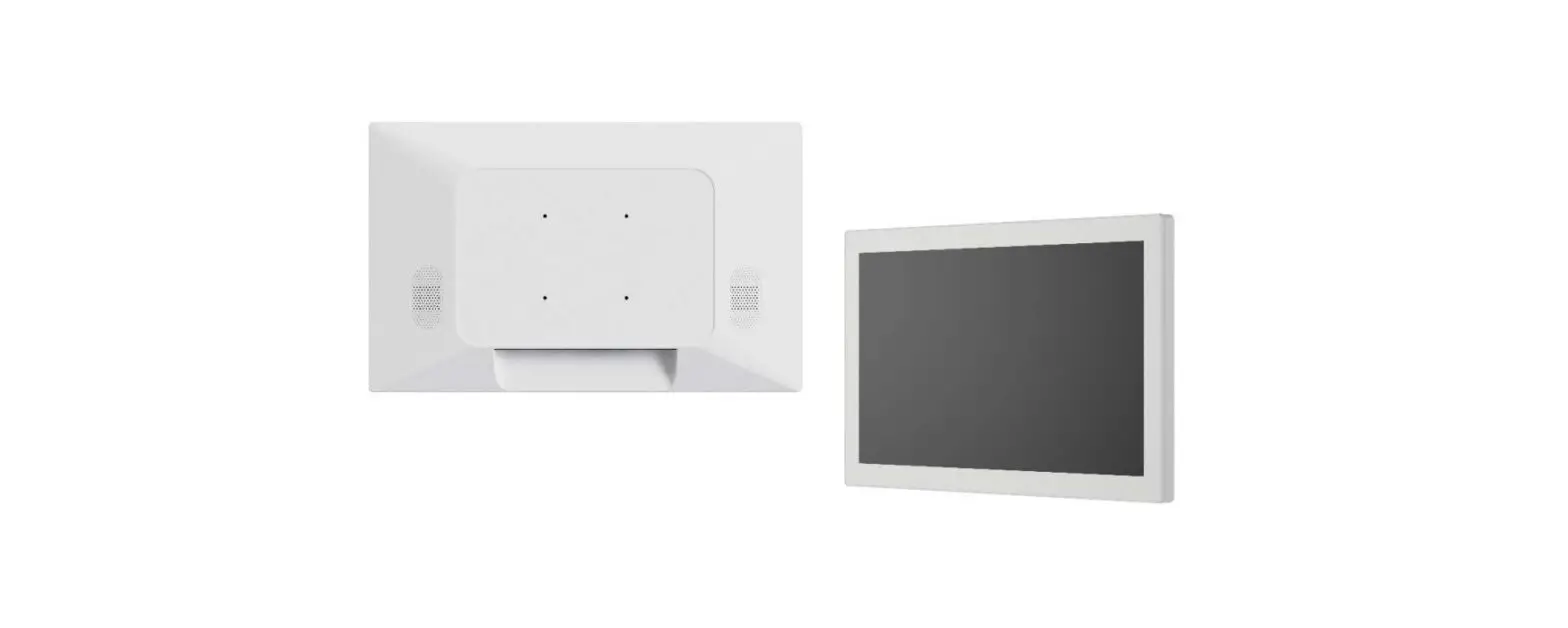

Exterior and Features
VESA 75mm x75mm
DC in
HDMI VGA USB 2.0 OSD controls (see below)

TMC156
15.6″ TFT LCD, 10-point PCAP touch screen Full HD video output AR/AG touch screen available Flexible installation Excellent longevity (50,000H MTBF) Compact design, easy integration

Power

Select

Menu Down

Vantron

www.vantrontech.com

Vantron | Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions

TMC156 Datasheet

Display
Touch panel Video
Mechanical Power
Software Environment
Condition

Diagonal size Aspect ratio Resolution Brightness Active area Contrast ratio Number of colors Response time
Viewing angle
Touch point Touch control Cover lens thickness
Surface treatment
Light transmittance ratio Touch communication interface
Video interface
Dimensions Weight Installation
OSD
Power input Power consumption Language Adjustment of brightness, contrast ratio and color temperature Temperature
Humidity MTBF Warranty ESD Certificate

TMC156
15.6″ TFT LCD with LED backlight
16:9
1920 x 1080
300 nits 344.232mm × 193.536mm 500:1 16.7 million 10ms Horizontal: 170°
Vertical: 160°
10-point PCAP touch screen Finger, stylus pen 2mm Anti-fingerprint, tempered glass (Optional: Anti-glare / Anti-reflection) >85% USB 2.0 1 x VGA 1 x HDMI 381.2mm x 248.1mm x 47.3mm 3.7kg VESA mount (75 x 75mm) Built-in OSD (set up with OSD keys) Controls: Menu, Up, Down, Select, Power 12V DC adapter <14W Chinese and English
Supported
Operating: 0~+40 Storage: -20~+60 10%~90% RH (non-condensing) 50,000 hours 3 years ESD: ±4KV (contact) and ±8KV (air) CCC, FCC, CE, UL

Vantron

www.vantrontech.com

Vantron | Embedded in your success, Embedded in your better life
World-leading provider of embedded/IoT products and solutions
Product Outlines

Accessories and Order Information

TMC156

Accessories
Power cable Adapter USB cable HDMI/VGA cable

1 pc 1 pc 1 pc 1 pc for each

Order Info -x
Example

TMC156
-1: Anti-glare (AG) -2: Anti-reflection (AR) -3: AG + AR treatment TMC156-1: Anti-glare touch panel

Company Profile
Since 2002 established by two Silicon Valley entrepreneurs, Vantron Technology has been a pioneer in connected IoT devices and IoT platform solutions. Today, Vantron serves countless customers all over the world, some of them are Fortune 500 companies. Products lines cover edge intelligent hardware, IoT communication devices, industrial displays and BlueSphere cloud device management platform.
Vantron has 20 years of experience in R&D of embedded edge intelligent hardware like SOM board and motherboard, and provided users with various embedded solutions with ARM and X86 architecture. From Linux to Windows, from embedded to desktop level, from gateway to server. At the same time, we provide our users with system clipping, driver transplantation and other services.
Vantron IoT communication devices support multi-protocol connection of industrial equipment, edge computing of local data. Abundant wired and wireless connectivity make remote operations and maintenance possible. From electricity and transportation to smart retail, medical and warehousing, Vantron IoT communication device can be deployed anywhere in any business section. Vantron believes its IoT solution to help many companies finish their digital transformation, efficiency of manufacturing and productivities have been improved significantly.
Vantron industrial display systems, ARM and X86 series, are equipped with Rockchip, NXP, MediaTek, Intel and other high-performance processors. It supports various operating systems such as Windows, Linux, and Android. Diverse wireless communications keep your device online all the time. Multiple installation methods make it suitable for a variety of application scenarios. Features like waterproof, dustproof, shatter resistant guarantee the best performance in any environment.
Vantron BlueSphere device management platform, a software product, is playing a big role in Vantron overall IoT solution. Today, Vantron puts more focus on offering complete cost effective, leading-edge yet reliable solutions to help customers carry out their visions.
