4097 CORE
Micro Shotgun Microphone
User’s Manual
dpamicrophones.com/4097-shotgun
Introduction

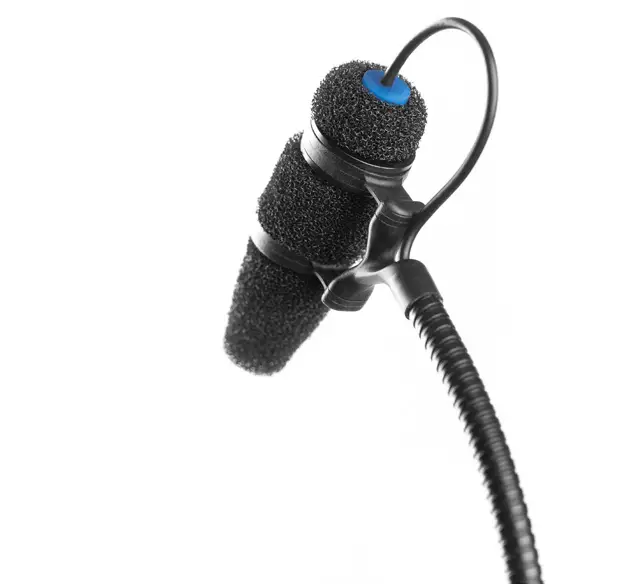

With its small footprint and clear audio pick-up, the 4097 CORE Micro Shotgun Microphone can be used in the tightest spaces. It is optimized to pick up speech in applications such as in ENG/EFP broadcast or as a plant mic on film sets.

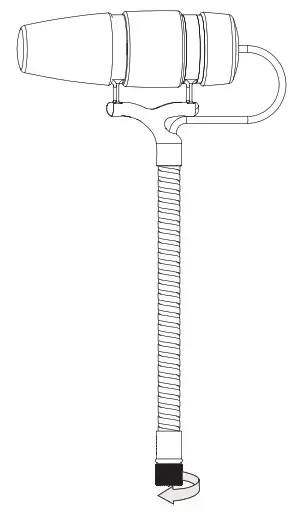

The mic sits on a 10 cm (4 in) gooseneck with a built-in shock mount. A free-running nut on the MicroDot enables the mic to be quickly turned and locked in the correct position.
The microphone uses a small diaphragm pre-polarized condenser capsule with a supercardioid pickup pattern mounted in an interference tube, which sits inside of a replaceable foam windscreen.
The interference tube in the 4097 CORE Micro Shotgun increases its directionality while maintaining flat onaxis frequency response and consistent off-axis response. This allows the mic to isolate what you’re trying to pick up while attenuating sounds from the sides and rear.

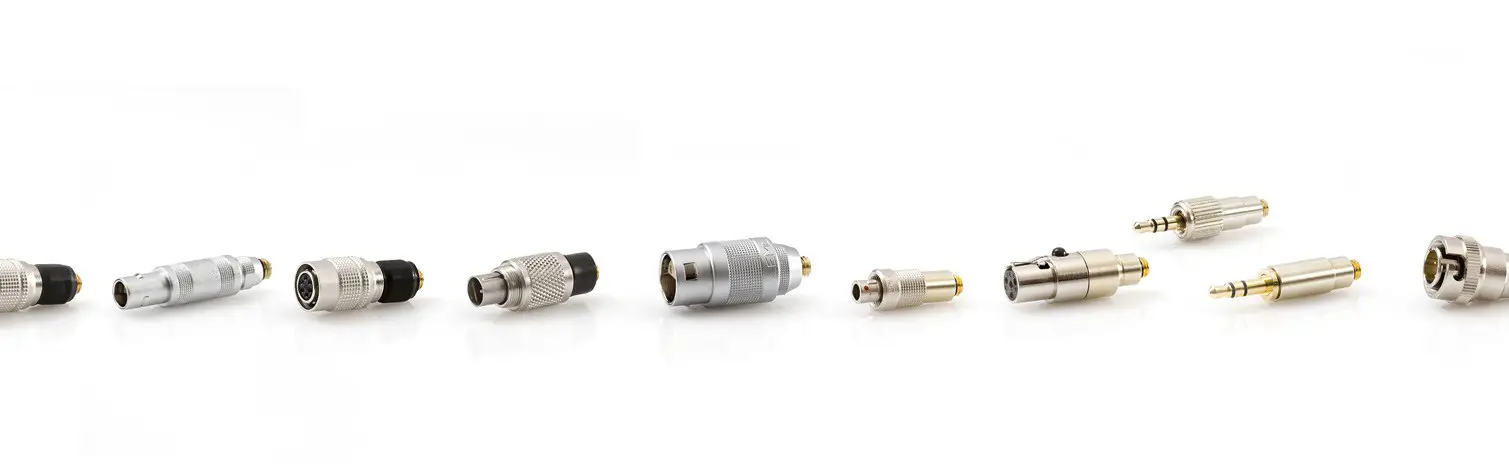

Adapters for wireless
DPA Microphones’ ingenious adapter system is one of a kind in the industry. It protects your investment in fantastic sound for years to come and works with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony, Wisycom and many more.

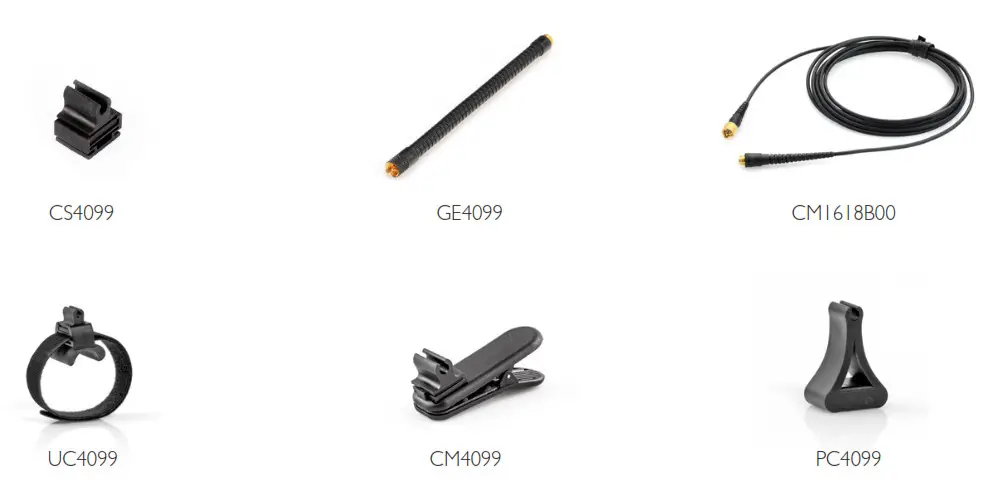

Optional accessories
The 4097 CORE Micro Shotgun works with a variety of optional accessories to increase its functionality. Not only can it be extended to double length using a gooseneck extension, it works with all of our standard clips and mounting options known from the 4099 Instrument Mic series, for example:
Specifications:
4097-DC-G-B00-010
4097 CORE Micro Shotgun Mic, Black MicroDot, 10 cm (4 in) full Gooseneck
Directional characteristics
Supercardioid
Frequency response
20 Hz – 20 kHz
Effective frequency range, ±2 dB, 20 cm (7.9 in)
80 Hz – 15 kHz with 2 dB soft boost at 10 – 12 kHz
Sensitivity, nominal ±3 dB at 1 kHz
16 mV/Pa; -36 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Distortion (THD) <1%
130 dB SPL RMS, 133 dB SPL peak
Dynamic range
Typ. 110 dB
Max. SPL, THD 10%
135 dB SPL peak
Connector
MicroDot
Color
Black

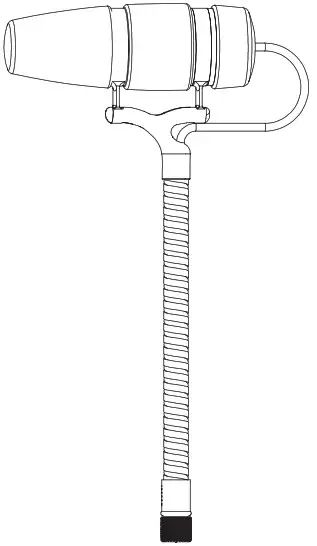

Dimensions
Weight: 10 g (.35 oz)
Microphone length: 10.4 cm (4 in)
Full specsheet at: dpamicrophones.com//4097-shotgun

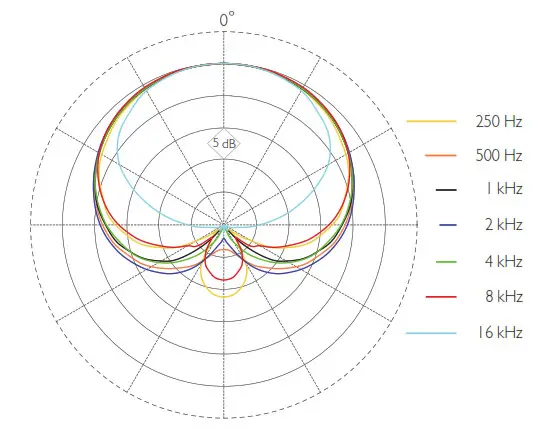

Polar pattern

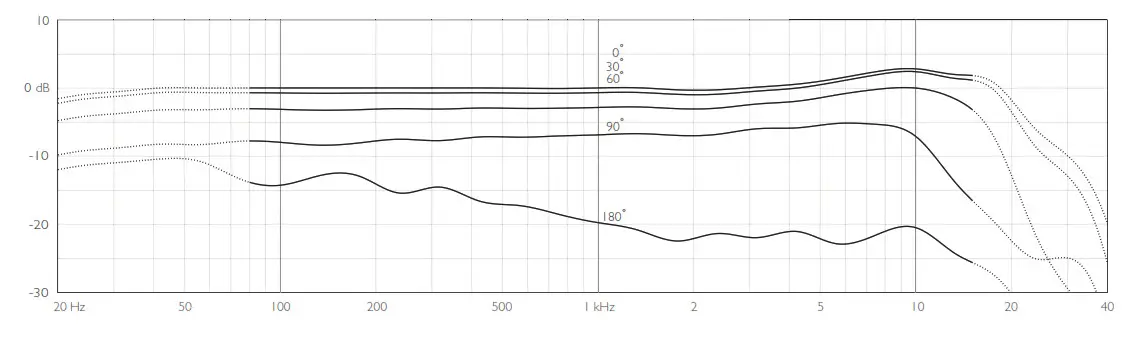

Frequency response
Measured at 20 cm (7.9 in)
Service & repair
If you are not satisfied with the characteristics exhibited by this product, please go to dpamicrophones.com/service for instructions.
Warranty
The 4097 CORE Micro Shotgun Microphone is covered by a two-year limited warranty.
CE marking
This product conforms to all relevant directives approved by the European Commission.
© May, 2020. DPA Microphones A/S Product features and specifications are subject to change without further notice.
DPI-M-4097MS-01
