Saramonic Soundbird V6 Supercardioid Shotgun Microphone User Manual

Supercardioid Shotgun Microphone
SoundBird V6

Statement

Thank you for purchasing Saramonic!
Please read this manual carefully before using and strictly operate and store in accor­dance with the instructions. Please save the manual for future reference.
If the user manual can not help you to solve problems, please ask your retailer for further assistance or email us: [email protected]

Cautions

• Please read this instruction manual carefully and completely before using the
• Use the product with care and store it in a clean, dust-free environment.
• Avoid any liquid entering the unit.
• Only use a soft, dry cloth to clean the product.

Introduction

The Saramonic SoundBird V6 is a professional super-cardioid shotgun microphone that delivers clear, detailed audio with a full frequency response for film production, dialog, ENG, sound effects, field production, and other professional video applications. Its focused directional pickup, off-axis rejection, tailored frequency response, and sensitiv­ity are specially designed to increase the intelligibility of dialogue.

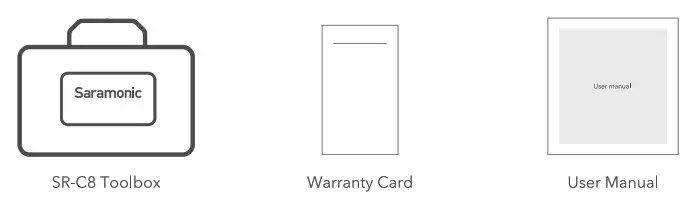

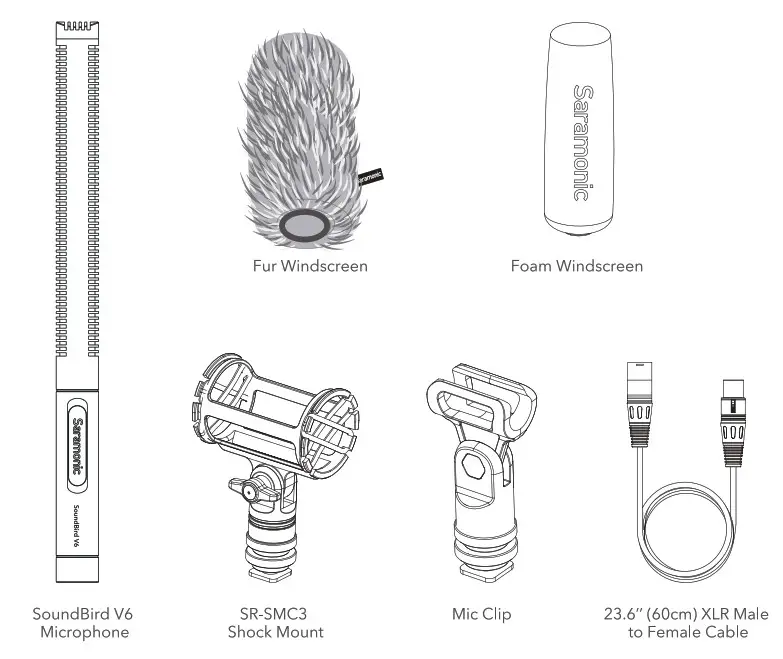

Packing List

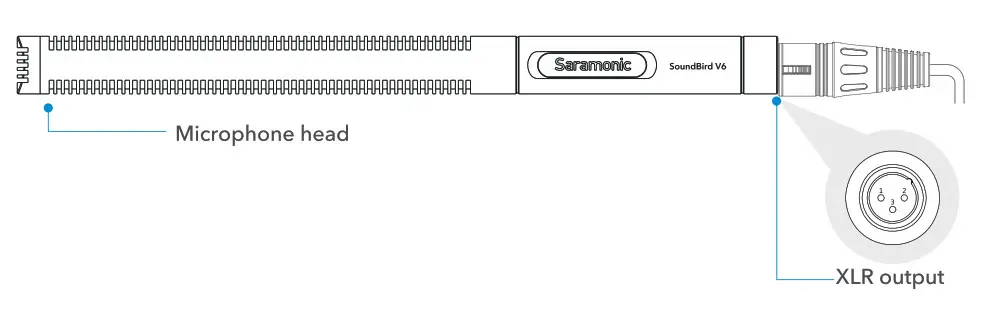

Product Structure

Power Supply

The SoundBird V6 can be powered via 48V phantom power supplied by your camera, recording device or mixer (such as the Saramonic SR-PAX1, SmartRig+, SmartRig II, and SR-AX107).

Highlights

• Super-cardioid Shotgun Microphone
• Ideal for Film Production, dialog, ENG, sound effects, field production, and other professional video applications.
• Low Self-Noise Delivers clear and intelligible sound with extremely low self-noise.
• 48V Phantom Power Powered by 48V phantom power.
• Solid Brass Construction CNC machined brass metal body guarantees solid construction.
• Gold-plated XLR Connector Resists corrosion and ensures excellent signal transfer.

Specification

Polar Pattern
