UK 430684 Blakeley Pendant Range
Instruction Manual

430684 Blakeley Pendant Range

READ THESE INSTRUCTIONS THOROUGHLY BEFORE INSTALLATION KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IMPORTANT:
This product must be installed by a qualified electrician or competent person, and in accordance with current building and IET wiring regulations.

BOX CONTENTS
This lighting fixture has been properly packed to avoid damage during transit. Before commencing with the installation carefully inspect the luminaire to confirm there is no
damage. DO NOT INSTALL if any damage has occurred to the fixture or any of its components.

• Light Fitting
• Instruction Manual
• Fixing Kit
• Diffuser

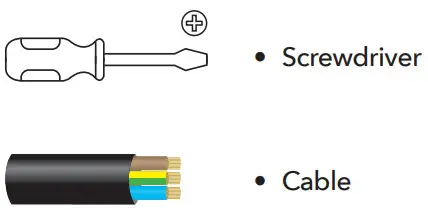

TOOLS REQUIRED

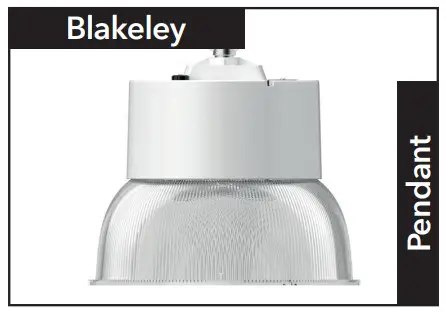

Blakeley Retail Pendant

INSTALLATION INSTRUCTIONS

PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION.

WARNING: Risk of electric shock! Isolate the mains power before proceeding.

• Turn off the mains power before performing inspections, installation, or removal
• Verify that the supply voltage is correct by comparing it with the luminaire label information
• It is the installers responsibility to ensure installation is suitable for the total load of the luminaire(s). The supply cable, fuses/circuit barkers must be correctly rated for  the electrical load and considering for any transient inrush currents that may occur
• Do not perform insulation strength or resistance tests on installed luminaire(s) connected

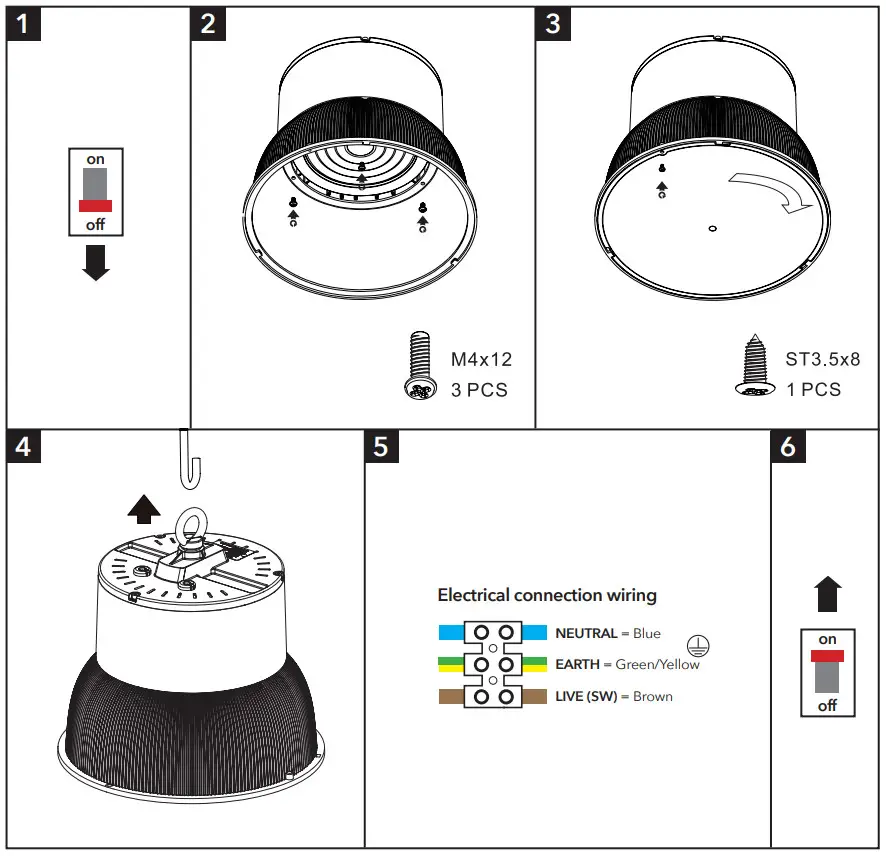

1. Switch off mains power
2. Secure the diffuser to the product using the fixings provided
3. If required add the cover to the diffuser and secure using the screw provided
4. Suspend the fixture using the eye bolt provided and a suitable suspension cable or chain
5. Wire as per diagram ensuring a suitable connection method and or junction box is used
6. Switch on mains power

DISPOSAL

Disassembly instructions for end of life disposal available on website.
Disposal of Electronic Equipment WEEE Directive 2002/96/EC This product falls within the scope of the Waste Electrical & Electronic Equipment Directive (WEEE),  which means the product should not be disposed of as normal household waste. Please recycle where facilities exist or check with your Local Authority. RoHS – All components and materials used in this product are RoHS 2002/95/EC compliant.
Specifications may change from time to time. The information contained in this leaflet is for guidance only and should not be considered as always accurate and should be treated as not representative.

WARRANTY
This luminaire is warranted for a period of 5 years from the date of purchase**. The warranty could be invalidated should the light fitting not be installed according to these
instructions, outside the scope of the specification or the product has been altered or tampered with in any way. Please see website for terms and conditions.

PRODUCT TEMP SPECIFICATION

Standard -30 to +40ºC

Blakeley Retail Pendant

BLAKELEY DIMENSIONS

Munby Business Park, Munby, Lincolnshire, LN11 8UT
Luminex is a B&T Associates Ltd company.

Revision 1.0 – September 2022
** Please see our website for more detailed information on warranty.
Technical Helpline: +44 (0)1507 328031
This product contains a light source of energy efficiency Class D.
