24 129 Pendant Luminaire
Instruction Manual
Technical amendments reserved
Pendant luminaire
24 129 Pendant Luminaire
Application
Pendant luminaire with unshielded light for mounting in arcades, galleries and passageways.
When installed in exterior applications, the luminaire must be protected from constant pendulum movement due to wind.
Lamp
| Module connected wattage | 15.2 W |
| Luminaire connected wattage | 17.6 W |
| Rated temperature | ta = 25 °C |
| Ambient temperature | ta max = 50 °C |
24 129 K3
| Module designation | 4x LED-0490/830 |
| Colour temperature | 3000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 3020 lm |
| Luminaire luminous flux | 2547 lm |
| Luminaire luminous efficiency | 144,7 lm / W |
24 129 K4
| Module designation | 4x LED-0490/840 |
| Colour temperature | 4000 K |
| Colour rendering index | CRI > 80 |
| Module luminous flux | 3120 lm |
| Luminaire luminous flux | 2631 lm |
| Luminaire luminous efficiency | 149,5 lm / W |
Safety
The installation and operation of this luminaire are subject to national safety regulations.
Installation and commissioning may only be carried out by a qualified electrician.
The manufacturer accepts no liability for damage caused by improper use or installation.
If subsequent modifications are made to the luminaire, the person responsible for these modifications shall be considered the manufacturer.
Overvoltage protection
The electronic components installed in the luminaire are protected against overvoltage in accordance with DIN EN 61547.
To achieve an additional protection against e. g. transients, etc. we recommend separate overvoltage protection components.
You can find them on our website at www.bega.com.
Product description
Luminaire made of aluminium alloy, aluminium and stainless steel
BEGA Unidure® coating technology
Colour white

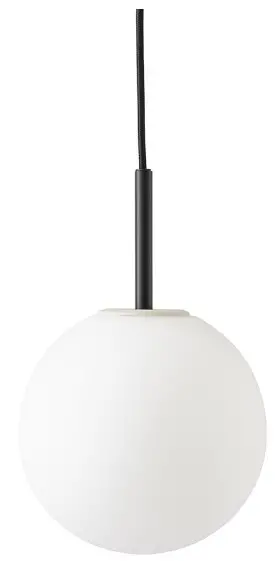

White synthetic sphere
Silicone gasket

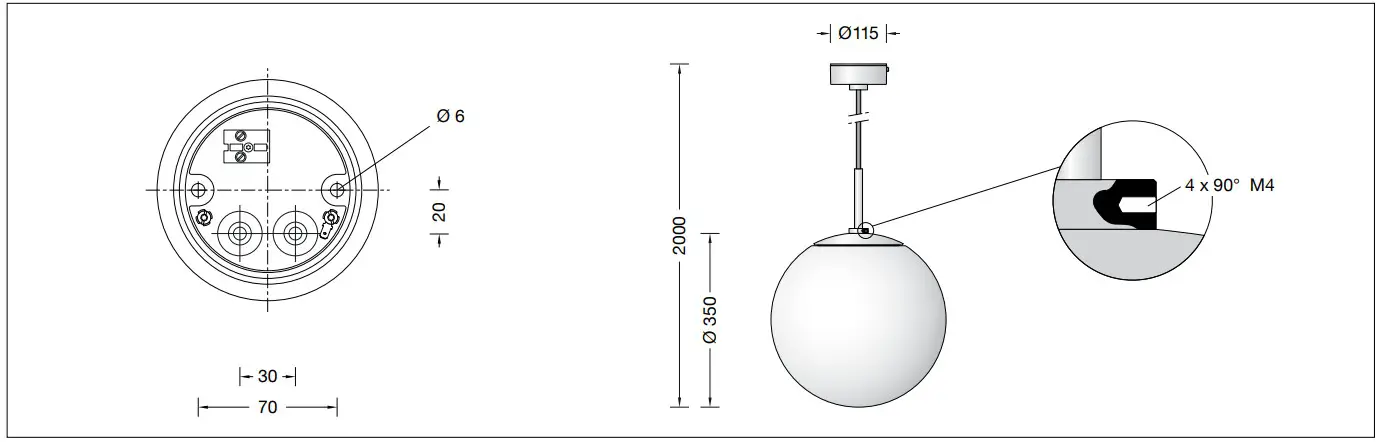

4 drilled holes with thread M4 to which tension cables preventing pendulum movement can be fixed
Cable pendant H05RN-F 5 G 1@ with 2 steel cords · Colour black
Overall length of luminaire approx. 2000 mm
Mounting plate with 2 fixing
holes ø 5.5 mm · 70 mm spacing
2 cable entries for through-wiring of mains supply cable ø 7-10.5 mm, max. 5 G 1.5@
Connecting terminal 2.5@ with plug connection
Earth conductor connection
BEGA Ultimate Driver®
LED power supply unit 220-240 V x 0/50-60 Hz DC 176-276 V
DALI-controllable
Number of DALI addresses: 1
Basic insulation is provided between the mains and control cables
BEGA Thermal Control
Temporary thermal regulation to protect temperature-sensitive components without switching off the luminaire
Safety class I
Protection class IP 64
Dust-tight and protection against splash waterImpact strength IK10
Protection against mechanical impacts < 20 joule
– Safety mark
– Conformity mark
Weight: 3.3 kg
This product contains light sources of energy efficiency class(es) B, C
Installation

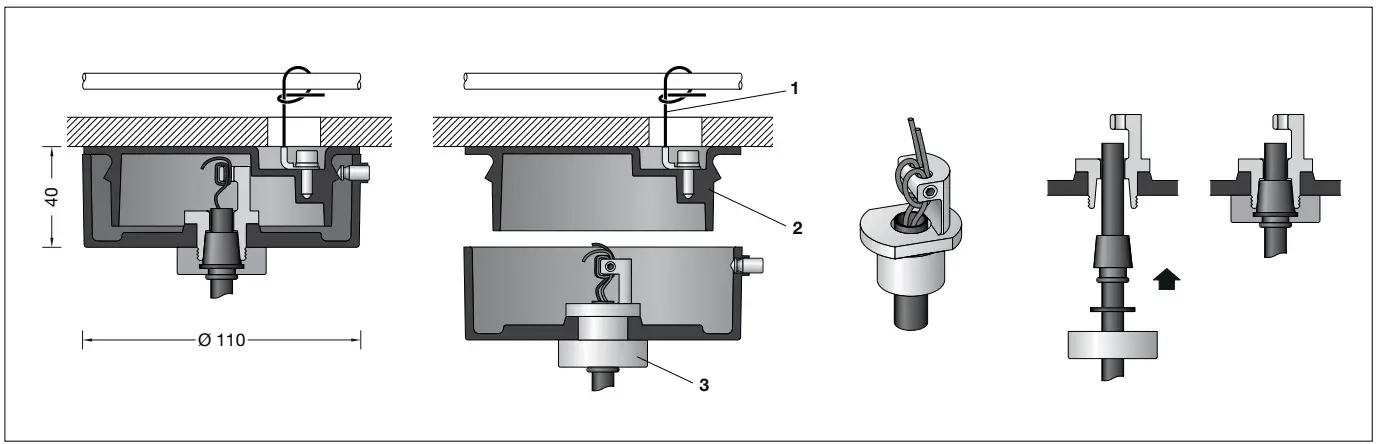

For mains supply connection open the mounting box. When luminaire is mounted in assembly halls please see that steel cord 1 is closely and under tension fixed to a noninflammable building component – please see sketch. Fix end of steel cord on the back of mounting plate 2 with hexagon socket head screw M5. Lead mains supply cable through the cable entry of the mounting plate. Fix mounting plate with enclosed or any other suitable fixing material onto the mounting surface. It is absolutely essential to use the enclosed gaskets. Make earth conductor connection and electrical connection.
Make earth conductor connection between mounting box and mounting plate Plug in plug connection up to the stop. Make sure that the gasket is positiooned correctly. Bolt mounting box firmly together with mounting plate.
To shorten the cable pendant
The cable must only be shortened within the mounting box. Disconnect mains supply cable from plug connection and earth conductor terminal. Loosen locking screws – hexagon socket head screws M4 – for suspension cord. Pull suspension cords out of lock holes. Screw off round nut 3 and pull cable with gasket out of screw connection. Shorten cable to the desired length. Insert pressure pressure disk into the round nut and press gasket into the round nut. Grease connecting cable somewhat and lead it through round nut and gasket. Tighten round nut as far as it will go and screw it together with the mounting box. Strip lines and pull suspension cords thightly into the lock holes at the cord holder.Tighten locking screws M4 firmly. Shorten steel cords with excess length, protect with end sleeves.
Insert sphere into holder plate and adjust centrically. Tighten screws at holder plate evenly.
Make sure that the gasket is positioned correctly.
Replacing the LED module
The designation of the LED module is noted on a label in the luminaire.
The light colour and light output of BEGA replacement modules correspond to those of the modules originally fitted.
The module can be replaced by qualified persons using standard tools.
Disconnect the system and open the luminaire.
Please follow the installation instructions for the LED module.
Inspect and, if necessary, replace the luminaire gaskets.
Defective glass must be replaced.
Close the luminaire.
Cleaning · Maintenance
Clean dirt and debris from the luminaire regularly with a clean, soft, lint-free cloth that is kept damp throughout the cleaning.
If possible, please use water for this, adding a little commercial dishwashing detergent.
For lacquered surfaces we recommend the use of BEGA Lacquer Care Set 71 179.
Cleaning agents containing solvents and high- pressure cleaners are unsuitable for cleaning and maintenance.
Spares
| White synthetic sphere | 15 000 149 .6 |
| LED power supply unit | DEV-0312/350 |
| LED module 3000 K | LED-0490/830 |
| LED module 4000 K | LED-0490/840 |
| Gasket sphere | 83 000 685 |
| Gasket mounting box | 83 001 903 |
