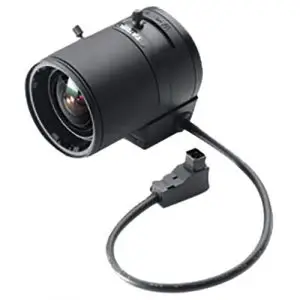

Bosch Varfocal Lens For Cameras User Guide (+ PDF)

As surveillance cameras can now capture even higher picture resolutions through the use of HD sensor technology and advanced processing, the lenses also need to have an optical resolution that allows the camera to work at its optimal point.This lens is designed to provide improved image resolution and sharpness, and better depth of field.

System overview

This lens comes with a standard CS mount for use with a variety of cameras. The P-iris control connection is a four-pin standard plug that fits directly into the camera’s iris output. This lens delivers impressive optical quality due to its megapixel resolution, contrast reproduction, and coating. The mechanical construction is designed to withstand both frequent iris control operations and the environmental stress of security installations. It provides long and reliable operation with no maintenance. For flexible, high-quality, reliable lenses that match an HD camera’s performance, this lens is the ideal solution.

Certifications and approvals

Region	Regulatory compliance/quality marks
Europe	CE BT-VS 2020-E-025

Installation/configuration notes

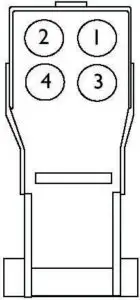

4-pin iris connector

LVF-5003C-P2713 Varifocal lens, 2.7-13mm, 3MP, CS mount

Pin 1: Damping coil –

Pin 2: Damping coil +

Pin 3: Driving coil + (open)

Pin 4: Driving coil –

Parts included

Quantit y	Component
1	Unit

Technical specifications

Technical specifications

LVF-5003C-P2713
Maximum sensor format	1/2.7‑inch
Optical resolution	3 Megapixels
Focal length	2.7 – 13 mm
Iris range	F1.4 to close
Min object distance	0.3 m (1 ft)
Back focus distance (values in air)	8 mm (0.315 in)
Weight	87 g (0.19 lb)
Dimensions	Ø 47 mm (excluding focus and zoom knobs and iris block) x 75.11 mm
Lens mount	CS
Angle of view (HxV)	102 x 74° Wide

LVF-5003C-P2713
Maximum sensor format	1/2.7‑inch
Optical resolution	3 Megapixels
Focal length	2.7 – 13 mm
Iris range	F1.4 to close
Min object distance	0.3 m (1 ft)
Back focus distance (values in air)	8 mm (0.315 in)
Weight	87 g (0.19 lb)
Dimensions	Ø 47 mm (excluding focus and zoom knobs and iris block) x 75.11 mm
Lens mount	CS
Angle of view (HxV)	102 x 74° Wide

Environmental

– Operating Temperature	-10°C to+50°C (+14°F to +122°F)
– Storage Temperature	-40°C to +60°C (-40°F to + 140°F)
– Operating Humidity	Up to 60% RH non-condensing

Ordering information

LVF-5003C-P2713 Varifocal lens, 2.7-13mm, 3MP, CS mount
Varifocal P-iris megapixel IR corrected lens with 1/2.7 inch sensor and CS-mount Order number LVF-5003C-P2713
