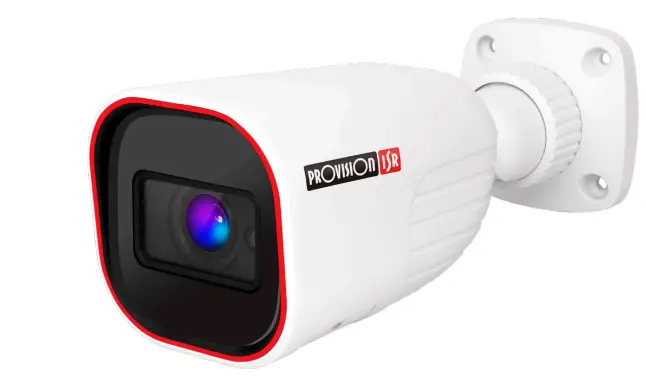

PROVISION I4-340IPSN-MVF-V2 40M IR 4MP Motorized Vari-Focal Lens Bullet Camera
NDAA S-SIGHT
Provision-ISR S-SIGHT series provides you with all you need for a simple installation. S-Sight cameras guarantee superior imagequality, improved night performance and make an outstanding value-for-money solution.
INTRODUCTION
Equipped with a 2.8-12mm motorized lens, this 4MP bullet camera is designed for medium distance surveillance (up to 40m) in indoor and outdoor scenarios. With its outstanding performance, reliability, and affordable price, the I4-340IPSN-MVF-V2 camera is the perfect solution for any basic installation.
MAIN FEATURES
- 4MP
- 2592×1520 Resolution
- 2.8-12mm Motorized Vari-Focal (94°-35.7°)
- 3D-DNR
- IP67
ANALYTICS
- General Analytics: Camera Tampering
- Standard Analytics: Line Crossing, Sterile Area
- www.provision-isr.com
SPECIFICATIONS
| Image Sensor | 1/2.7” CMOS (16:9) |
| Effective Pixels | 2560×1440 |
| Electronic Shutter | 1/25s ~ 1/100000s |
| Frame Rate | 1-25/30FPS |
| Day & Night | ICR |
| Min. Illumination | Day: 0.1lux / Night: 0.03lux (@F2.0, AGC on) 0lux with IR on |
| Audio compression | N/A |
| Communication | N/A |
| Image Settings | AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable |
| Image Enhancement | Digital WDR, BLC, HLC, ROI |
| Noise Reduction | 3D-DNR |
| Image Orientation | Mirror/Flip |
| Privacy Zone | Yes |
| Motion Detection | Yes |
| Analytics | General Analytics: Camera Tampering Standard Analytics: Line Crossing, Sterile Area |
| Video Compression | H.265 / H.264 / MJPEG (Substream only) |
| Resolution | 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1920×1080) / D1 / QVGA /CIF |
| Multi-Stream | Master Stream: 4MP (2560×1440) / 3MP (2304×1296) / 2MP (1~30fps) Substream: 1MP (1~12/15fps) /QVGA/D1/CIF (1~30fps) Third Stream: QVGA/D1/CIF (1~30fps) |
| Bit rate | 64Kbps ~ [email protected] / 64Kbps ~ [email protected] |
| Encode Mode | VBR/CBR |
| Image Quality | Five levels under VBR; Free adjustment under CBR |
| IR Distance | 40m (2 High-Power IR LED) |
| Lens (Field of View) | 2.8-12mm MVF with Auto Focus (94°-35.7°) |
| Iris | Fixed Iris |
| Lens Mount | Ø14 Mount |
| Protection Rate | Water Proof: IP67 |
| Bracket | 3-Axis Bracket |
| Dimensions | 220.8×79.4×81.2mm |
| Weight (gross) | ~650g |
| Network | RJ45 (+PoE) |
| Power | DC Socket |
| Analog Video Output | No |
| Audio Connectivity | No |
| SD Card | Event/Schedule based Main/Substream recording (Up to 128Gb) |
| Hard Reset Button | Yes |
| Alarm | No |
| Remote Monitoring | IE Browsing, Ossia VMS Software, Provision Cam2 Mobile App |
| User Access | Supports simultaneous monitoring of up to 4 users with multi-stream real-time transmission |
| Network Protocol | IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, 802.1X, RTSP, Multicast, UPnP, Email, FTP, HTTPS, QoS |
| ONVIF | Yes |
| Ethernet | 100Mbps |
| PoE | Yes |
| Power Supply | DC12V/~780mA / PoE/~7.4W |
| Work Environment | -30°C~60°C, 10%~90% Humidity |

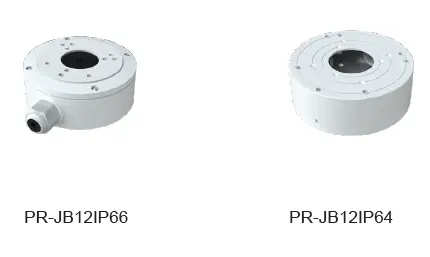

| Junction Box | PR-JB12IP66 – PR-JB12IP64 |
DIMENSIONS
ACCESSORIES
