New U-series compact network camera with enhanced functions and affordability

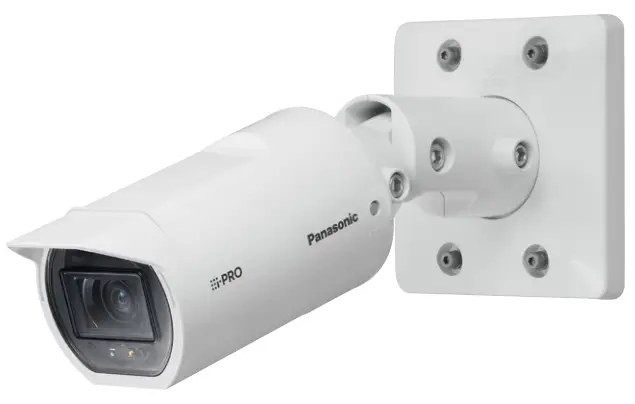

4MP Varifocal Lens Outdoor Bullet Network Camera
WV-U1542LA
WV-U1542LA 4MP Varifocal Lens Outdoor Bullet Network Camera
The new U series is an entry model that achieves high quality and reliability at an affordable price to meet the needs of a wide range of customers. The compact and slim design allows it to be installed in a various locations. It newly supports ONVIF G / S / T profile and H.265 / H.264, and can be widely used for connecting various VMS and recorders. It also comes pre-installed with secure certificates, enabling device authentication and end-to-end communication encryption to counter the threat of advanced cyberattacks.
Key features
- Compact and slim design allows installation in various locations
- Compliant with ONVIF G / S / T profile and H.265 / H.264, and can support a wide range of connections to VMS and recorders
- Uses “Easy Kitting Packing” that allows you to set the camera without removing it from the box
- Strengthen cyber security by pre-installing digital certificates issued by a third party organization (GlobalSign)
Key i-PRO Spec.
- 5MP Sensor
- 2688×1520 pixel image up to 30fps
- 2.5x built-in motorized zoom and motorized focus lens
- iA (intelligent Auto)
- Super Dynamic 102dB
- Color night vision (0.019 to 0.3 lx)
- H.265 Smart Coding
- Corridor mode (90 degrees or 270 degrees in image rotation)
- Built-in IR LED
- ONVIF Profile G / S / T
Industry examples
- Public safety (City / Highway toll / Parking gate)
- Transportation (Airport / Train / Subway)
- Retail / Bank / Logistics / Education / Hospital / Building
Specifications
| Camera | Image Sensor | Approx. 1/2.7 type CMOS image sensor |
| Minimum Illumination | Color : 0.3 lx, BW: 0.12 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) BW : 0 lx {0 footcandle} (50IRE, F2.0, Maximum shutter: OFF (1/30 s), AGC: 11, when the IR LED is lit) Color : 0.019 lx, BW: 0.0075 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) *1 | |
| White Balance | ATW1/ ATW2/ AWC | |
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s | |
| Intelligent Auto | On / Off | |
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. | |
| Dynamic Range | Max.102 dB (Super Dynamic: On, Level: 31) | |
| Adaptive Black Stretch | — | |
| Back light compensation /High light compensation | BLC/ HLC/ Off (only when Super Dynamic/ Intelligent auto: Off) | |
| Fog compensation | On / Off, The level can be set in the range of 0 to 8. (only when Intelligent auto / auto contrast adjust: Off) | |
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. | |
| Color/BW (ICR) | Off/ On (IR Light Off)/ On (IR Light On)/ Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC) | |
| IR LED Light | High/ Middle/ Low/ Off Maximum irradiation distance: 20 m {Approx. 65 ft} | |
| Digital Noise Reduction | The level can be set in the range of 0 to 255. | |
| Video Motion Detection (VMD) | On / Off, 4 areas available | |
| Scene Change Detection(SCD) | On / Off, 1 areas available | |
| Privacy Zone | On / Off, Up to 8 zones available | |
| Image rotation | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° | |
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) | |
| Lens | Focal length | 2.9 mm – 7.3 mm {1/8inches-9/32inches} |
| Optical zoom | 2.5x (Motorized zoom / Motorized focus) | |
| Extra optical zoom | 2.5x – 3.3x (when resolution is 1920×1080) | |
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 | |
| Angular Field of View | [16 : 9 mode] *[4:3 mode] is not supported. Horizontal : 44° (TELE) – 103° (WIDE), Vertical : 25° (TELE) – 57° (WIDE) | |
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0(TELE) | |
| Focusing Range | 1 m {39-3/8 inches} – ∞ | |
| DORI | Detect (25ppm / 8ppf) | Wide: 40.7 m / 133.6 ft, Tele: 126.7 m / 415.8 ft |
| Observe (62.5ppm / 19ppf) | Wide: 16.3 m / 53.4 ft, Tele: 50.7 m / 166.3 ft | |
| Recognize (125ppm / 38ppf) | Wide: 8.1 m / 26.7 ft, Tele: 25.3 m / 83.2 ft | |
| Identify (250ppm / 76ppf) | Wide: 4.1 m / 13.4 ft, Tele: 12.7 m / 41.6 ft | |
| Adjusting Angle | Ceiling mounting | Horizontal: ±180 ° (Adjust by horizontal (PAN) angle) Vertical : 0 ° to 100 ° (Adjust by vertical (TILT) angle) Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) |
| Wall mounting | Horizontal: ±100 ° (Adjust by vertical (TILT) angle)* Vertical : ±100 ° (Adjust by vertical (TILT) angle)* Yaw : –190 ° to +100 ° (Adjust by azimuth (YAW) angle) *You can change between horizontal and vertical angels by adjusting the horizontal (PAN) angle. | |
| Browser GUI | Camera Control | Brightness |
| GUI /Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese |
*1 Converted value
*2 Smart Coding(GOP and AUTO VIQS) is not available when setting 30fps.
*3 Only when installation work is properly performed according to the Installation Guide and appropriate waterproof treatment is performed.
| Network | Network IF | 10Base-T / 100Base-TX, RJ45 connector | ||||||
| Resolution H.265/H.264 | [16:9 mode(2688×1520 30fps mode)], [16:9 mode(2688×1520 25fps mode)] 2688×1520, 1920×1080, 640×360, 320×180 [16:9 mode(30fps mode)], [16:9 mode(25fps mode)] 2560×1440, 1920×1080, 640×360, 320×180 *[4:3 mode] is not supported. | |||||||
| H.265/ H.264 | Transmission Mode | Constant bit rate / VBR / Frame rate / Best effort | ||||||
| Transmission Type | Unicast / Multicast | |||||||
| Max. frame rate for each stream*2 | Stream(1) 2688×1520(30fps) | Stream(2) Off | Stream(3) Off | JPEG(1) 2560×1440(1fps) | JPEG(2) 1920×1080(1fps) | |||
| 2560×1440(30fps) | 640×360(30fps) | Off | 2560×1440(1fps) | 1920×1080(1fps) | ||||
| 1920×1080(30fps) | 1920×1080(30fps) | 640×360(10fps) | 2560×1440(1fps) | 1920×1080(1fps) | ||||
| JPEG | Image Quality | 10 steps | ||||||
| Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off *Frame rate control and Advanced are only available with H.265. AUTO VIQS: On/ Off | |||||||
| Audio Compression | — | |||||||
| Audio transmission mode | — | |||||||
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ | |||||||
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) | |||||||
| SDXC/SDHC/SD Memory Card (Option) | H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC Available SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB | |||||||
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals | |||||||
| ONVIF Profile | G / S / T | |||||||
| Alarm | Alarm Source | VMD alarm, SCD alarm, Command alarm | ||||||
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output | |||||||
| Input/ Output | Monitor Output(for adjustment) | — | ||||||
| Audio input | — | |||||||
| Audio Output | — | |||||||
| External I/O Terminals | — | |||||||
| General | Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 | ||||||
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 | |||||||
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 150 mA, Approx. 7.2 W (Class 0 device) | |||||||
| Ambient Operating Temperature | -30 °C to +50 °C (-22 °F to +122 °F) {Power On range: -20 °C to +50 °C (-4°F to +122 °F)} | |||||||
| Ambient Operating Humidity | 10 to 100 % (no condensation) | |||||||
| Anti-Condensation Systeme | Temish element | |||||||
| Water and Dust Resistance*3 | IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant | |||||||
| Shock Resistance | IK10 (IEC 62262) | |||||||
| Dimensions | 112.5 mm (W) x 112.5 mm (H) x 262 mm (D) {4-7/16 inches(W) x 4-7/16 inches(H) x 10-5/16 inches(D)} | |||||||
| Mass (approx.) | 860 g {1.90 lbs.} | |||||||
| Finish | Main body: Aluminum die cast/ PC resin, i-PRO white Outer fixing screws: Stainless steel (Corrosion-resistant treatment) Front cover: Polycarbonate resin, Clear | |||||||

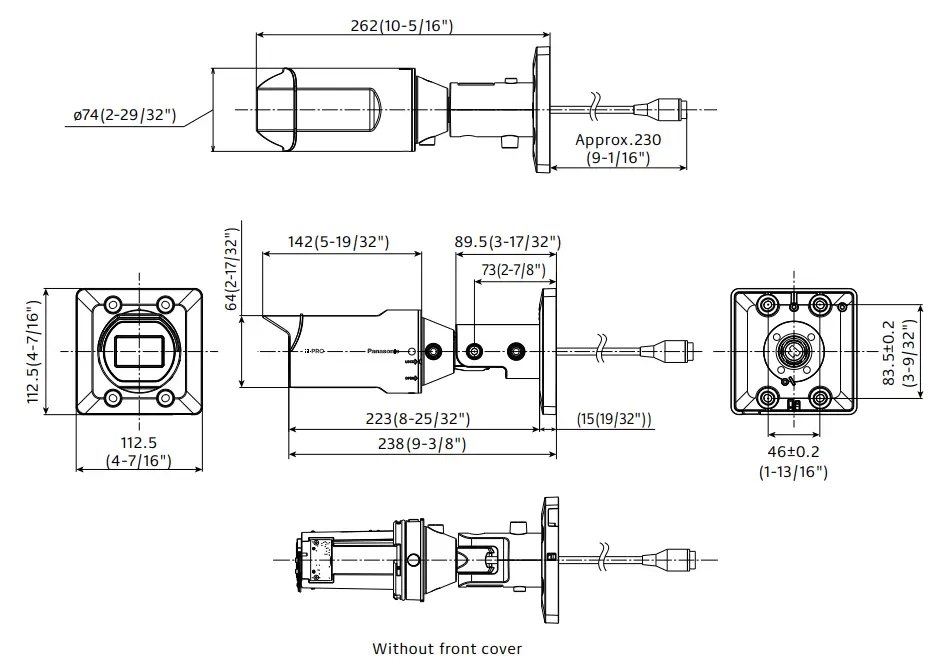

Appearance

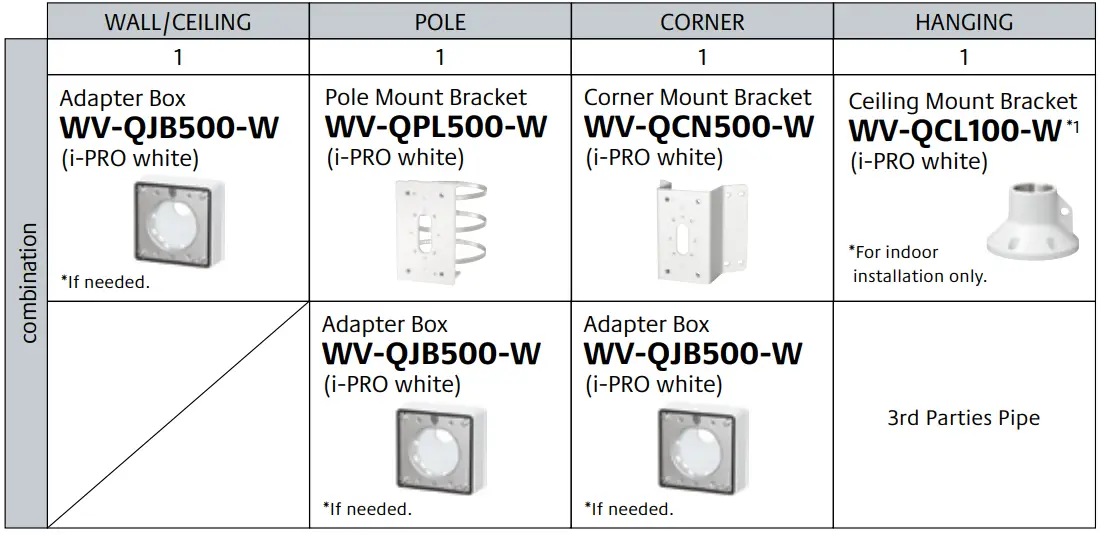

Optional Accessories
Mount Bracket / Other
Trademarks and registered trademarks
– iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
– Android is a trademark of Google LLC.
– ONVIF is trademarks or registered trademarks of Onvif Inc.
– All other trademarks identified herein are the property of their respective owners.
Important
– Safety Precautions : Carefully read the Basic Information, Installation Guide and Operating Instructions before using this product.
– Panasonic i-PRO Sensing Solutions Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers’ products used on the network.
• Masses and dimensions are approximate.
• Specifications are subject to change without notice.
Panasonic i-PRO Sensing Solutions Co., Ltd.
https://ipro.panasonic.com
https://security.panasonic.com
https://www.linkedin.com/company/i-pro-sensing-solutions-co-ltd/
(2A-291A)
