New U-series compact network camera with enhanced functions and affordability
Full HD Varifocal Lens Indoor Box Network Camera
WV-U1132A

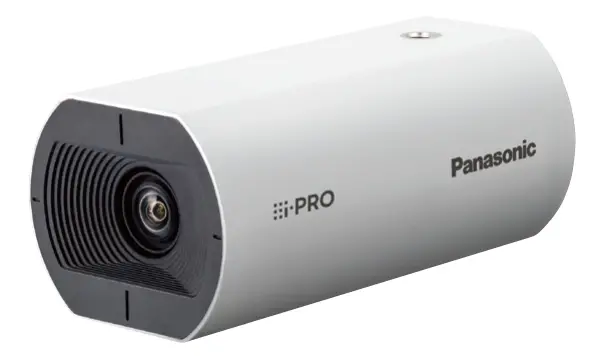

WV-U1132A Full HD Varifocal Lens Indoor Box Network Camera
The new U series is an entry model that achieves high quality and reliability at an affordable price to meet the needs of a wide range of customers. The compact and slim design allows it to be installed in a various locations. It newly supports ONVIF G / S / T profile and H.265 / H.264, and can be widely used for connecting various VMS and recorders. It also comes pre-installed with secure certificates, enabling device authentication and end-to-end communication encryption to counter the threat of advanced cyberattacks.
Key features
- Compact and slim design allows installation in various locations
- Compliant with ONVIF G / S / T profile and H.265 / H.264, and can support a wide range of connections to VMS and recorders
- Uses “Easy Kitting Packing” that allows you to set the camera without removing it from the box
- Strengthen cyber security by pre-installing digital certificates issued by a third party organization (GlobalSign)
Key i-PRO Spec.
- Full HD 1080p up to 30fps
- 2.5x built-in motorized zoom and motorized focus lens
- iA (intelligent Auto)
- Super Dynamic 120dB
- Color night vision (0.006 to 0.1 lx)
- H.265 Smart Coding
- Corridor mode (90 degrees or 270 degrees in image rotation)
- ONVIF Profile G / S / T
Industry examples
- Retail
- Education
- Public safety
- Bank / Hospital / Building
Specifications
| Camera | Image Sensor | Approx. 1/3 type CMOS image sensor | |||||
| Minimum Illumination | Color : 0.1 lx, BW: 0.04 lx (50IRE, F2.0, Maximum shutter: Off (1/30s), AGC: 11) Color : 0.006 lx, BW: 0.0025 lx (50IRE, F2.0, Maximum shutter: max. 16/30s, AGC: 11) *1 | ||||||
| White Balance | ATW1/ ATW2/ AWC | ||||||
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s | ||||||
| Intelligent Auto | On / Off | ||||||
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. | ||||||
| Dynamic Range | Max.120 dB (Super Dynamic: On, Level: 31) | ||||||
| Adaptive Black Stretch | — | ||||||
| Back light compensation / High light compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto: Off) | ||||||
| Fog compensation | On / Off (only when Intelligent auto / auto contrast adjust: Off) | ||||||
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. | ||||||
| Color/BW (ICR) | Off / On / Auto1 (Normal) / Auto2 (IR Light) / Auto3 (SCC) | ||||||
| Digital Noise Reduction | The level can be set in the range of 0 to 255. | ||||||
| Video Motion Detection (VMD) | On / Off, 4 areas available | ||||||
| Scene Change Detection(SCD) | On / Off, 1 areas available | ||||||
| Privacy Zone | On / Off, Up to 8 zones available | ||||||
| Image rotation*2 | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° | ||||||
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) | ||||||
| Lens | Focal length | 2.9 mm – 7.3 mm{1/8inches-9/32inches} | |||||
| Optical zoom | 2.5x (Motorized zoom / Motorized focus) | ||||||
| Extra optical zoom | 2.5x – 3.8x (when resolution is 1280×720) | ||||||
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 | ||||||
| Angular Field of View | [16 : 9 mode] Horizontal : 44° (TELE) – 102° (WIDE), Vertical : 24° (TELE) – 56° (WIDE) [ 4 : 3 mode] Horizontal : 36° (TELE) – 84° (WIDE), Vertical : 27° (TELE) – 63° (WIDE) | ||||||
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0(TELE) | ||||||
| Focusing Range | 1 m {39-3/8 inches} – ∞ | ||||||
| DORI | Detect (25ppm / 8ppf) | Wide: 35.5 m /116.6 ft, Tele: 98.5 m / 323.1 ft | |||||
| Observe (62.5ppm / 19ppf) | Wide: 14.2 m / 46.6 ft, Tele: 39.4 m / 129.2 ft | ||||||
| Recognize (125ppm / 38ppf) | Wide: 7.1 m / 23.3 ft, Tele: 19.7 m / 64.6 ft | ||||||
| Identify (250ppm / 76ppf) | Wide: 3.6 m / 11.7 ft, Tele: 9.8 m / 32.3 ft | ||||||
| Browser GUI | Camera Control | Brightness | |||||
| GUI /Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | ||||||
| Network | Network IF | 10Base-T / 100Base-TX, RJ45 connector | |||||
| Resolution H.265/H.264 | [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA | ||||||
| H.265/ H.264 | Transmission Mode | Constant bit rate / VBR / Frame rate / Best effort | |||||
| Transmission Type | Unicast / Multicast | ||||||
| Max. frame rate for each stream*3 | Stream(1) | Stream(2) | Stream(3) | JPEG(1) | JPEG(2) | ||
| 1920×1080(30fps) | 640×360(30fps) | Off | 1920×1080(1fps) | 1280×720(1fps) | |||
| 1280×720(30fps) | 1280×720(30fps) | Off | 1920×1080(1fps) | 1280×720(1fps) | |||
| 1600×1200(30fps) | 640×480(30fps) | Off | 1600×1200(1fps) | 1280×960(1fps) | |||
| JPEG | Image Quality | 10 steps | |||||
| Network | Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid.)/On(Low)/ Off * Frame rate control and Advanced are only available with H.265. AUTO VIQS: On/ Off |
| Audio Compression | — | |
| Audio transmission mode | — | |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ | |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) | |
| SDXC/SDHC/SD Memory Card (Option) | H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC Available SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB | |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals | |
| ONVIF Profile | G / S / T | |
| Alarm | Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, Panasonic alarm protocol output | |
| Input/ Output | Monitor Output(for adjustment) | — |
| Audio input | — | |
| Audio Output | — | |
| External I/O Terminals | — | |
| General | Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 | |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device: DC48 V 90 mA, Approx. 4.3 W (Class 2 device) | |
| Ambient Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) {Power On range: 0 °C to +50 °C (+32°F to +122 °F)} | |
| Ambient Operating Humidity | 10 to 90 % (no condensation) | |
| Dimensions *Installing using the base bracket | 59 mm (W) x 49 mm (H) x 116 mm (D) {2-5/16 inches (W) x 1-15/16 inches (H) x 4-9/16 inches (D)} (excluding side cover) | |
| Mass (approx.) | 155 g { 0.34 lbs.} | |
| Finish | Main body: PC / ABS resin, i-PRO white |
*1 Converted value
*2 When “4:3(30fps mode)” or “4:3(25fps mode)” is selected for “Image capture mode”,
“90 °” and “270 °” cannot be selected.
*3 Smart Coding(GOP and AUTO VIQS) is not available when setting 30fps.

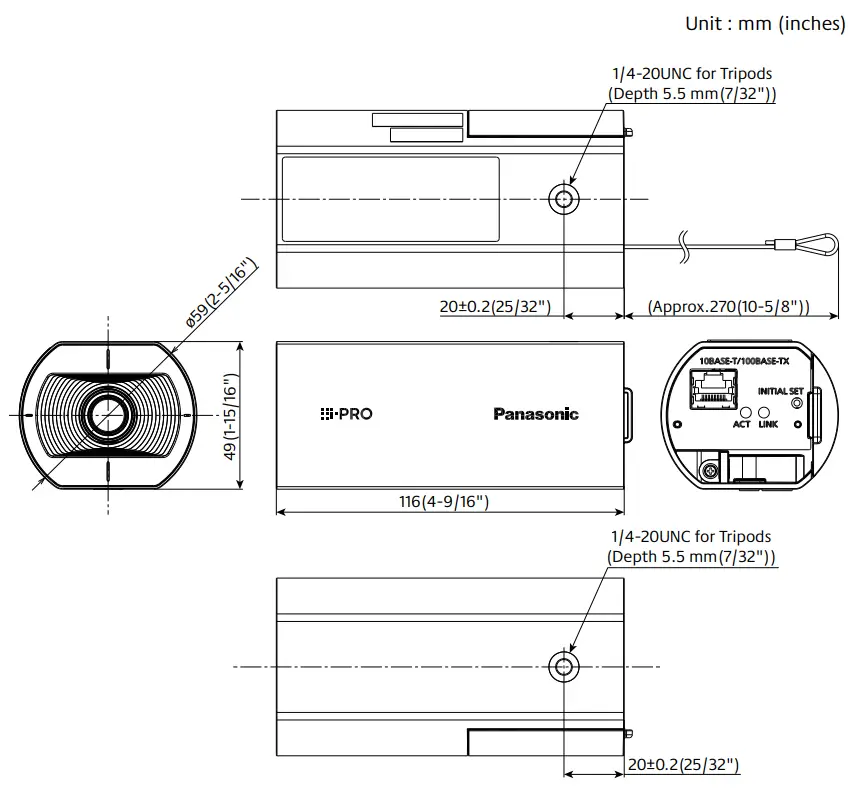

Appearance
Trademarks and registered trademarks
– iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
– Android is a trademark of Google LLC.
– ONVIF is trademarks or registered trademarks of Onvif Inc.
– All other trademarks identified herein are the property of their respective owners.
Important
– Safety Precautions : Carefully read the Basic Information, Installation Guide and Operating Instructions before using this product.
– Panasonic i-PRO Sensing Solutions Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers’ products used on the network.
• Masses and dimensions are approximate. • Specifications are subject to change without notice.
