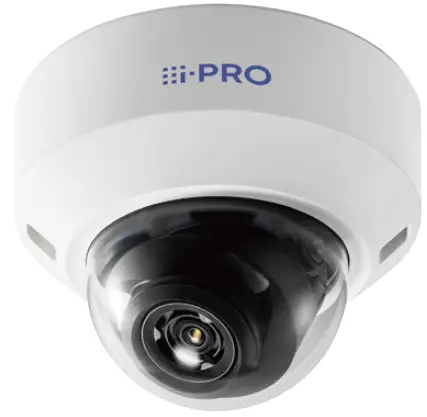

i-PRO WV-U2132LA Varifocal Lens Indoor Dome Network Camera
New U-series compact network camera with enhanced functions and affordability
2MP (1080p) Varifocal Lens Indoor Dome Network Camera
The new U series is an entry model that achieves high quality and reliability at an affordable price to meet the needs of a wide
range of customers. The compact and slim design allows it to be installed in a various locations.
It newly supports ONVIF G / S / T profile and H.265 / H.264, and can be widely used for connecting various VMS and recorders.
It also comes pre-installed with secure certificates, enabling device authentication and end-to-end communication encryption to counter the threat of advanced cyberattacks.
Key features
- Compact and slim design allows installation in various locations
- Compliant with ONVIF G / S / T profile and H.265 / H.264, and can support a wide range of connections to VMS and recorders
- Uses “Easy Kitting Packing” that allows you to set the camera without removing it from the box
- Strengthen cyber security by pre-installing digital certificates issued by a third party organization (GlobalSign)
Key i-PRO Spec.
- 2MP (1080p) up to 30fps
- 2.5x built-in motorized zoom and motorized focus lens
- iA (intelligent Auto)
- Super Dynamic 120dB
- Color night vision (0.006 to 0.1 lx)
- H.265 Smart Coding
- Corridor mode
(90 degrees or 270 degrees in image rotation) - Built-in IR LED
- ONVIF® Profile G / S / T
ONVIF is a trademark of ONVIF, Inc. - Genetec Stratocast compatible
Industry examples
- Retail
- Education
- Public safety
- Bank / Hospital / Building
Specifications
| Camera | Image Sensor | Approx. 1/3 type CMOS image sensor | ||||||
| Minimum Illumination | Color : 0.1 lx, BW : 0.04 lx (50IRE, F2.0, Maximum shutter : Off (1/30s), AGC : 11) BW : 0 lx (50IRE, F2.0, Maximum shutter : Off (1/30 s), AGC : 11, when the IR LED is lit) Color : 0.006 lx, BW : 0.0025 lx (50IRE, F2.0, Maximum shutter : max. 16/30s, AGC : 11) *1 | |||||||
| White Balance | ATW1/ ATW2/ AWC | |||||||
| Maximum shutter | [30fps mode] Max. 1/10000 s to Max. 16/30 s [25fps mode] Max. 1/10000 s to Max. 16/25 s | |||||||
| Intelligent Auto | On / Off | |||||||
| Super Dynamic | On / Off, The level can be set in the range of 0 to 31. | |||||||
| Dynamic Range | Max.120 dB (Super Dynamic : On, Level: 31) | |||||||
| Adaptive Black Stretch | — | |||||||
| Back light compensation / High light compensation | BLC (Back light compensation) / HLC (High light compensation) / Off (only when Super dynamic / Intelligent Auto : Off) | |||||||
| Fog compensation | On/ Off, The level can be set in the range of 0 to 8. (only when Intelligent auto / auto contrast adjust: Off) | |||||||
| Maximum gain (AGC) | The level can be set in the range of 0 to 11. | |||||||
| Color/BW (ICR) | Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) / Auto2 (IR Light On) / Auto3 (SCC) | |||||||
| IR LED Light | High / Middle / Low / Off, Maximum irradiation distance : 30 m {Approx. 100 ft} | |||||||
| Digital Noise Reduction | The level can be set in the range of 0 to 255. | |||||||
| Video Motion Detection (VMD) | On / Off, 4 areas available | |||||||
| Scene Change Detection(SCD) | On / Off, 1 areas available | |||||||
| Privacy Zone | On / Off, Up to 8 zones available | |||||||
| Image rotation*2 | 0° (Off)/ 90°/ 180° (Upside-down)/ 270° | |||||||
| Camera Title (OSD) | On / Off, Up to 20 characters (alphanumeric characters, marks) | |||||||
| Lens | Focal length | 2.9 mm – 7.3 mm{1/8inches-9/32inches} | ||||||
| Optical zoom | 2.5x (Motorized zoom / Motorized focus) | |||||||
| Extra optical zoom | 2.5x – 3.8x (when resolution is 1280×720) | |||||||
| Digital (electronic) zoom | Choose from 3 levels of x1, x2, x4 | |||||||
| Angular Field of View | [16 : 9 mode] Horizontal : 43° (TELE) – 100° (WIDE) Vertical : 24° (TELE) – 56° (WIDE) [ 4 : 3 mode] Horizontal : 36° (TELE) – 83° (WIDE) Vertical : 27° (TELE) – 62° (WIDE) | |||||||
| Maximum Aperture Ratio | 1 : 2.0 (WIDE) – 1 : 3.0 (TELE) | |||||||
| Focus range | 1 m {39-3/8 inches} – ∞ | |||||||
| DORI | Detect (25ppm / 8ppf) | Wide: 36.2 m /118.7 ft, Tele: 98.5 m / 323.1 ft | ||||||
| Observe (62.5ppm / 19ppf) | Wide: 14.5 m / 47.5 ft, Tele: 39.4 m / 129.2 ft | |||||||
| Recognize (125ppm / 38ppf) | Wide: 7.2 m / 23.7 ft, Tele: 19.7 m / 64.6 ft | |||||||
| Identify (250ppm / 76ppf) | Wide: 3.6 m / 11.9 ft, Tele: 9.8 m / 32.3 ft | |||||||
| Adjusting | Angle | Horizontal (PAN) angle: ±180°, Vertical (TILT) angle: -30 °– +85 ° Azimuth (YAW) angle: ±100° | ||||||
| Browser GUI | Camera Control | Brightness | ||||||
| GUI / Setup Menu Language | English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese | |||||||
| Network | Network IF | 10Base-T / 100Base-TX, RJ45 connector | ||||||
| Resolution H.265/H.264 | [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180 [ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA | |||||||
| H.265/ H.264 | Transmission Mode | Constant bit rate / VBR / Frame rate / Best effort | ||||||
| Transmission Type | Unicast / Multicast | |||||||
| Max. frame rate for each stream*3 | Stream(1) | Stream(2) | Stream(3) | JPEG(1) | JPEG(2) | |||
| 1920×1080(30fps) | 640×360(30fps) | Off | 1920×1080(1fps) | 1280×720(1fps) | ||||
| 1280×720(30fps) | 1280×720(30fps) | Off | 1920×1080(1fps) | 1280×720(1fps) | ||||
| 1600×1200(30fps) | 640×480(30fps) | Off | 1600×1200(1fps) | 1280×960(1fps) | ||||
| JPEG | Image Quality | 10 steps | ||||||
| Network | Smart Coding | GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off *Frame rate control and Advanced are only available with H.265. AUTO VIQS: On/ Off |
| Audio Compression | — | |
| Audio transmission mode | — | |
| Supported Protocol | IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT*4, LLDP*4 IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP,DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT*4, LLDP*4 | |
| No. of Simultaneous Users | Up to 14 users (Depends on network conditions) | |
| SDXC/SDHC/SD Memory Card | H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC Compatible SDXC/SDHC/SD Memory Card : microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB microSD memory card: 2 GB | |
| Mobile Terminal Compatibility | iPad, iPhone, AndroidTM terminals | |
| ONVIF® Profile | G / S / T | |
| Alarm | Alarm Source | VMD alarm, SCD alarm, Command alarm |
| Alarm Actions | SDXC/SDHC/SD memory recording, E-mail notification, HTTP alarm notification Indication on browser, TCP alarm notification output | |
| Input/ Output | Monitor Output (for adjustment) | — |
| Audio input | — | |
| Audio Output | — | |
| External I/O Terminals | — | |
| General | Safety | UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1 |
| EMC | FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55024 | |
| Power Source and Power Consumption | PoE (IEEE802.3af compliant) Device : DC48 V 120 mA, Approx. 5.8 W (Class 2 device) | |
| Ambient Operating Temperature | -10 °C to +50 °C (+14 °F to +122 °F) {Power On range: 0 °C to +50 °C (+32°F to +122 °F)} | |
| Ambient Operating Humidity | 10 to 90 % (no condensation) | |
| Dimensions | ø129.5 mm x 101 mm (H) {ø5-3/32 inches x 3-31/32 inches (H)} Dome radius 40 mm {1-9/16 inches} | |
| Mass (approx.) | Approx. 350 g {0.77 lbs} | |
| Finish | Main body : ABS resin, i-PRO white Dome cover : acrylic resin, Clear |
- Converted value
- When “4:3(30fps mode)” or “4:3(25fps mode)” is selected for “Image capture mode”, “90 °” and “270 °” cannot be selected.
- Smart Coding(GOP and AUTO VIQS) is not available when setting 30fps.
- It may be necessary to upgrade the firmware to use these protocols.

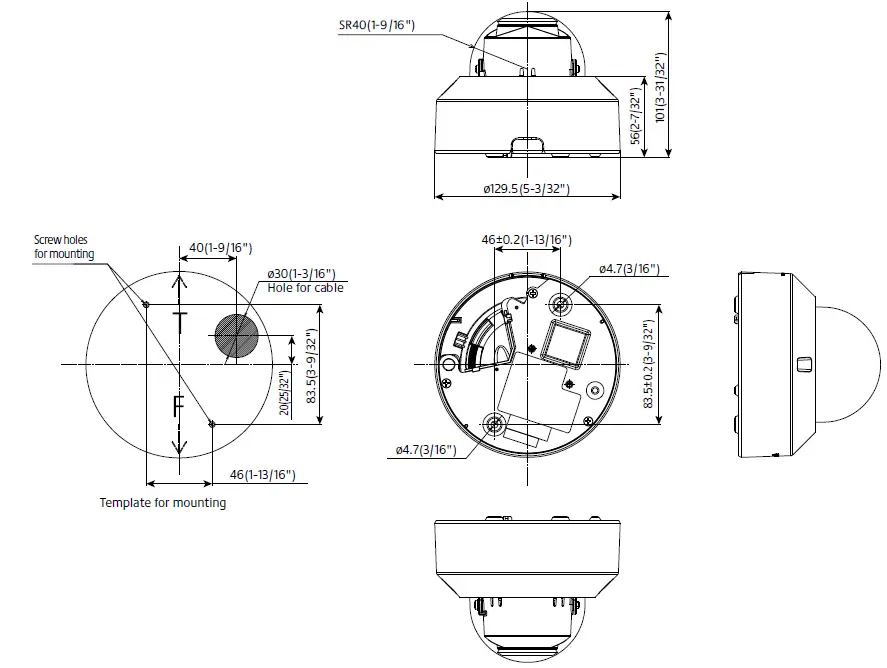

Appearance
Optional Accessories
| WALL | POLE | CORNER | HANGING | |||
| combination | 1 | 2 | 1 | 1 | 1 | 2 |
| Wall Mount Bracket WV-QWL501-W (i-PRO white) | Wall Mount Bracket WV-QWL500-W (i-PRO white)
| Pole Mount Bracket WV-QPL500-W (i-PRO white) | Corner Mount Bracket WV-QCN500-W (i-PRO white) | Ceiling Mount Bracket WV-QCL501-W (i-PRO white)
| Ceiling Mount Bracket WV-QCL100-W *1 (i-PRO white)
| |
| Mount Bracket WV-QSR501-W

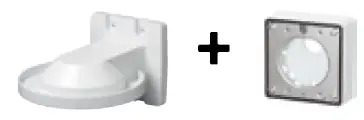

| Adapter Box WV-QJB500-W | Wall Mount Bracket WV-QWL500-W(i-PRO white) (+ WV-QJB500-W)
| Wall Mount Bracket WV-QWL500-W(i-PRO white) (+ WV-QJB500-W) | Mount Bracket WV-QSR501-W (i-PRO white)
|
3rd.parties pipe | |
| CEILING | OTHER | ||
| combination | 1 | 2 | 1 |
| Ceiling Mount Bracket (Embedded) WV-QEM100-W (i-PRO white)
| Ceiling Mount Bracket WV-Q105A
| Attachment pipe (For 3rd party bracket) WV-QAT500-W (i-PRO white)
| |
| Mount Bracket WV-QSR501-W (i-PRO white)
| |||
| 3rd.parties pipe | |||
Dome Cover
Dome Cover (Smoke type)
WV-CF5SA
Trademarks and registered trademarks
- iPad and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
- Android is a trademark of Google LLC.
- ONVIF is a trademark of ONVIF, Inc.
- All other trademarks identified herein are the property of their respective owners.
Important
- Safety Precautions : Carefully read the Basic Information, Installation Guide and Operating Instructions before using this product.
- i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers’ products used on the network.
Masses and dimensions are approximate. • Specifications are subject to change without notice.
