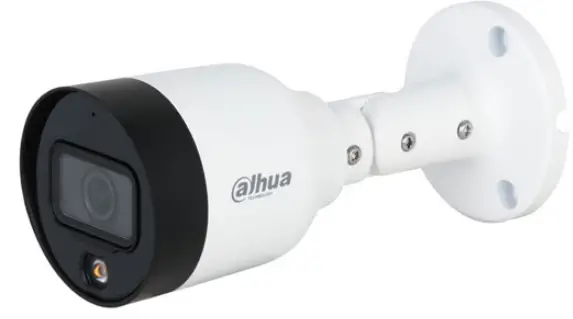

dahua DH-IPC-HFW1239S-A-LED-S5 2MP Entry Full-Color Fixed-Focal Bullet Netwok Camera
System Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/ residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Smart H.265+ & Smart H.264+
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Full-color
With high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful image in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.
- 2-MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 2 MP (1920 × 1080)@25 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light, and the max. illumination distance is 30 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Illumination overexposure remover (face priority), rotation mode, DWDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Abnormality detection: Motion detection, video tampering, audio detection, network disconnection, IP conflict, and illegal access.
- Built in MIC.
- 12 VDC/PoE power supply, easy for installation.
- IP67
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from compromising the device.
Protection (IP67, Wide Voltage)
- IP67: The camera passes a series of strict test on dust and soak. It has dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes.
- Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environment with instable voltage.
Technical Specification
| Technical Specification | Day/Night | Color/B/W | |||||||
| Camera | BLC | Yes | |||||||
| Image Sensor | 1/2.8″ CMOS | HLC | Yes | ||||||
| Max. Resolution | 1920 (H) × 1080 (V) | WDR | DWDR | ||||||
| ROM | 16 MB | White Balance | Auto; natural; street lamp; outdoor; manual; regional custom | ||||||
| RAM | 128 MB | ||||||||
| Gain Control | Auto;Manual | ||||||||
| Scanning System | Progressive | ||||||||
| Noise Reduction | 3D NR | ||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||
| Min. Illumination | 0.0017 [email protected] | ||||||||
| Region of Interest (RoI) | Yes (4 areas) | ||||||||
| S/N Ratio | >56 dB | ||||||||
| Smart Illumination | Yes | ||||||||
| Illumination Distance | 30 m (98.43 ft) (warm light) | ||||||||
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower) | ||||||||
| Illuminator On/Off Control | Auto;Manual | ||||||||
| Mirror | Yes | ||||||||
| Illuminator Number | 1 (warm light) | ||||||||
| Privacy Masking | 4 areas | ||||||||
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° | ||||||||
| Audio | |||||||||
| Lens | Built-in MIC | Yes | |||||||
| Lens Type | Fixed-focal | Audio Compression | G.711a; G.711Mu; G.726; PCM | ||||||
| Lens Mount | M12 | Alarm | |||||||
| Focal Length | 2.8 mm;3.6 mm | Alarm Event | Network disconnection; IP conflict; illegal access; motion detection; video tampering; audio exception; security exception | ||||||
| Max. Aperture | F1.0 | ||||||||
| Field of View | 2.8 mm: H: 107°; V: 58°; D: 130° 3.6 mm: H: 87°; V: 48°; D: 104° | Network | |||||||
| Network Port | RJ-45 (10/100 Base-T) | ||||||||
| Iris Control | Fixed | ||||||||
| SDK and API | Yes | ||||||||
| Close Focus Distance | 2.8 mm: 1 m (3.28 ft) 3.6 mm: 1.7 m (5.58 ft) | ||||||||
| Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP | ||||||||
|
DORI Distance | Lens | Detect | Observe | Recognize | Identify | ||||
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; | ||||||||
| 2.8 mm | 45.5 m (149.28 ft) | 18.2 m (59.70 ft) | 9.1 m (29.86 ft) | 4.6 m (15.09 ft) | |||||
| User/Host | 6 (Total bandwidth: 36 M) | ||||||||
| 3.6 mm | 53.8 m (176.51 ft) | 51.5 m (70.54 ft) | 10.8 m (35.43 ft) | 5.4 m (17.72 ft) | |||||
| Storage | FTP | ||||||||
| Video | Browser | IE Chrome Firefox | |||||||
| Video Compression | H.265; H.264; H.264B; MJPEG (Only supported by the sub stream) | ||||||||
| Management Software | DSS; DMSS | ||||||||
| Smart Codec | Smart H.265+; Smart H.264+ | ||||||||
| Mobile Client | iOS;Android | ||||||||
|
Video Frame Rate | Main stream: 1920 × 1080@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. | ||||||||
|
Cyber Security | Configuration encryption;trusted execution; Digest; security logs;WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; Generation and importing of X.509 certification | ||||||||
| Stream Capability | 2 streams | Certification | |||||||
| Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B | ||||||
| Bit Rate Control | CBR/VBR | ||||||||
| Power | |||||||||
| Video Bit Rate | H.264: 32 kbps–6144 kbps; H.265: 12 kbps–6144 kbps | ||||||||
| Power Supply | 12 VDC/PoE (802.3af) | ||||||||
| Power Consumption | Basic: 1.6 W (12 VDC); 2.4 W (PoE) Max. (WDR+H.265+ max. Illumination): 2.6 W (12 VDC); 3.5 W (PoE) |
| Environment | |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Protection | IP67 |
| Structure | |
| Casing Material | Metal |
| Product Dimensions | 162.1 mm × Φ70.1 mm (6.38″ × Φ2.76″) |
| Net Weight | 0.31 kg (0.68 lb) |
| Gross Weight | 0.44 kg (0.97 lb) |
Ordering Information
| Type | Model | Description |
| 2MP Camera | DH-IPC-HFW1239S-A-LED-S5 | 2MP Entry Full-color Fixed-focal Bullet Netwok Camera |
|
Accessories (Optional) | PFA134 | Junction Box |
| PFA130-E | Junction Box | |
| PFA152-E | Pole Mount Bracket | |
| PFM321D | 12 VDC 1 A Power Adapter | |
| PFM900-E | Integrated Mount Tester |

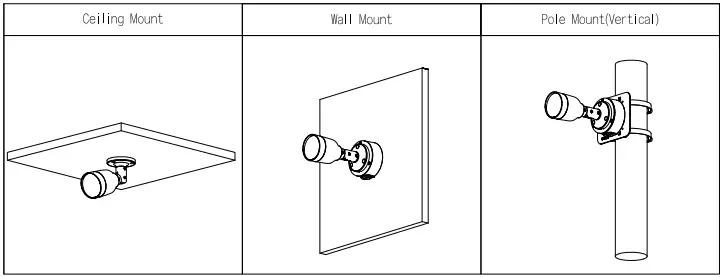

Accessories
Optional
mounting
Dimensions (mm[inch])
