Lite Series
DH-IPC-HDW1220S
DH-IPC-HDW1220S

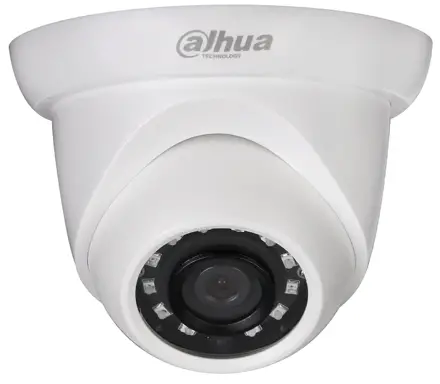

2MP IR Eyeball Network Camera
Owner’s Manual

Contents hide

1 System Overview

2 Functions

3 Technical Speciﬁcation

4 Ordering Information

5 Accessories

6 Documents / Resources

6.1 References

7 Related Posts

System Overview

The IR Megapixel Fixed Eyeball camera delivers 2MP resolution with a choice of 2.8mm or 3.6mm lens options. The camera’s elegant blend of aesthetics combined with its compact form factor provides an excellent choice for a variety of small to mid-size, indoor/outdoor applications at an affordable price

Functions

True Day/Night
A day/night mechanical IR cut filter makes this camera ideal for applications with fluctuating lighting conditions, delivering color images during the day and automatically switching to monochrome as the scene darkens
Regions of interest
Regions of Interest (ROI) is a user defined feature that allows the operator to monitor specific areas of a scene while still maintaining overall situational awareness of less important areas
Smart IR
With IR illumination, detailed images can be captured in low light or total darkness. The camera’s Smart IR technology adjusts to the intensity of camera’s infrared LEDs to compensate for the distance of an object. Smart IR technology prevents IR LEDS from whiting out images as they come closer to the camera. The camera’s integrated infrared illumination provides high performance in extreme low-light environments up to 30m (98ft).
Image flip
Capturing unnecessary data such as surrounding hallway walls can increase storage requirements without any added value. The image flip feature allows the camera’s image to be rotated in 90° increments for better video optimization.

1/2.9” 2Megapixel progressive CMOS
H.264+ & H.264 dual-stream encoding
25/30fps@2M(1920×1080)
DWDR, Day/Night(ICR), 3DNR, AWB, AGC, BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
2.8 mm fixed lens (3.6mm optional)
Max IR LEDs Length 30m
IP67, PoE

Protection
Supporting ±10% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 6KV lightning rating provides protectection against the camera and its structure from the effects of lightning.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer
Smart H.264+
Delivering high quality video without straining the network, Smart H.264+ is the optimized implementation of H.264. The Smart H.264+ encoding platform includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing a savings of up to 70% of bandwidth and storage when compared with standard H.264.

Technical Speciﬁcation

Camera
Image Sensor	1/2.9” 2Megapixel progresive CMOS
Effective Pixels	1920(H) x1080(V)
RAM/ROM	256MB/16MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3(4)~1/100000s
Minimum Illumination	0.1Lux/F2.0(Color), 0Lux/F2.0(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 30m(98ft)
IR On/Off Control	Auto/ Manual
IR LEDs	18

Lens
Lens Type		Fixed
Mount Type		Board-in
Focal Length		2.8 mm (3.6 mm optional)
Max. Aperture		F2.0/F2.0
Angle of View		H:110°/83°,V:57°/44°
Focus Control		Fixed
Close Focus Distance		N/A
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	2.8 mm	45m(147ft)	18m(59ft)	9m(30ft)	5m(16ft)
	3.6 mm	57m(187ft)	23m(75ft)	11m(33ft)	6m(20ft)

PTZ
Pan/Tilt Range	Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°
Video
Compression	H.264+/H.264
Streaming Capability	2 Streams
Resolution	1080P(1920×1080)/720P(1280×720)/ D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate	2M (1 ~ 25/30fps)
Frame Rate	D1/CIF(1 ~ 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H264:24K ~ 8192Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR

White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image	Support
Smart IR	Support
Digital Zoom	16x
Flip	0°/90°/180°/270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	N/A
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	HTTP;HTTPs;TCP; ARP;RTSP;RTP;UDP;SMTP;FTP; DHCP;DNS;DDNS; PPPOE;IPv4/v6; QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS(Network Attached Storage),Local PC for instant recording
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS,Easy4ip
Smart Phone	iPhone, iPad, Android Phone
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	N/A
Audio Interface	N/A
RS485	N/A
Alarm	N/A
Electrical
Power Supply	DC12V PoE (802.3af)(Class 0)
Power Consumption	<5.4W

Environmental
Operating Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	-30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Metal+Plastic

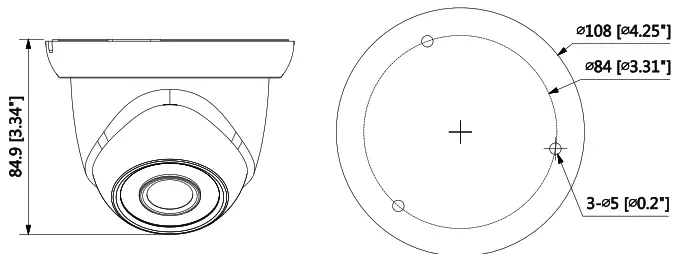

Dimensions	Φ108mm×84.9mm(4.25”x3.15”)
Net Weight	0.23Kg(0.51lb)
Gross Weight	0.387Kg(0.85lb)

Ordering Information

Type	Part Number	Description
2MP camera	DH-IPC-HDW1220SP -02808	2MP IR Eyeball Network Camera, 2.8mm,PAL
	DH-IPC-11DW1220SN -02808	2MP IR Eyeball Network Camera, 2.8mm,NTSC
	IPC-1-IDW1220SP -02808	2MP IR Eyeball Network Camera, 2.8mm,PAL
	IPC-I-IDW1220SN -02808	2MP IR Eyeball Network Camera, 2.8mm,NTSC
	DI-I-IPC-HDW1220SP -03608	2MP IR Eyeball Network Camera, 3.6mm,PAL
	DH-IPC-11DW1220SN -03608	2MP IR Eyeball Network Camera, 3.6mm,NTSC
	IPC-HDW1220SP -03608	2MP IR Eyeball Network Camera, 3.6mm,PAL
	IPC-HDW1220SN -03608	2MP IR Eyeball Network Camera, 3.6mm,NTSC

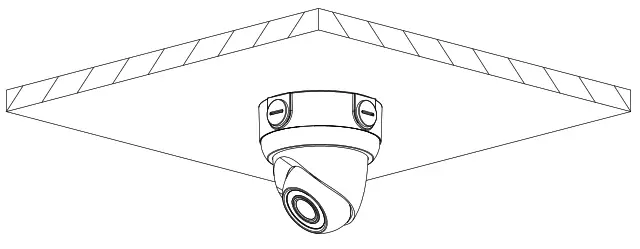

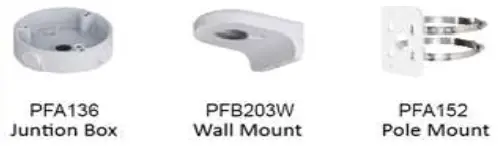

Accessories (optional)	PFA136	Junction box

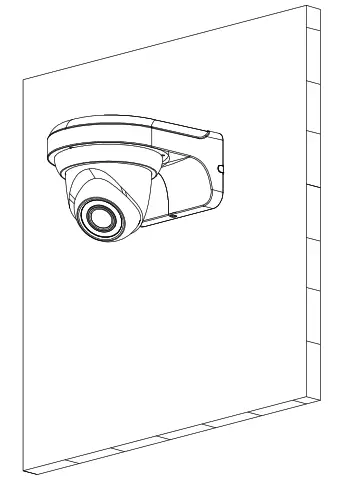

	PF13203W	Wall mount

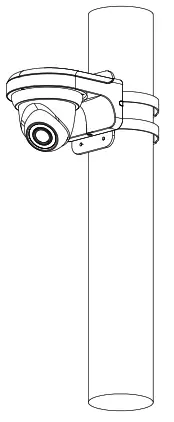

	PFA152	Pole mount
