Entry Series |DH-IPC-HDW1330T1-S4
DH-IPC-HDW1330T1-S4

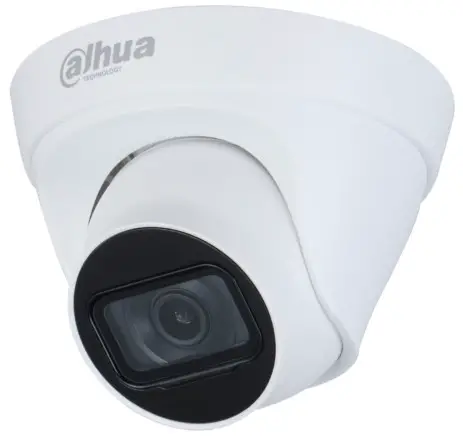

3MP Entry IR Fixed Focal Eyeball Netwok Camera
- 3MP, 1/2.7″ CMOS image sensor, low illuminance, high image definition
- Outputs max. 3MP (2304 × 1296) @20 fps, 2MP (1920 × 1080) @25/30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 30 m
- ROI, SMART H.264/H.265, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, DWDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Abnormality detection: Motion detection, video tampering, network disconnection, IP conflict, illegal access
- 12V DC/PoE power support
- IP67 protection
System Overview
With features of simple installation, easy operation, and high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
Functions
Smart (H.265+ & H.264+)
With advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes a higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarm or records.
Smart IR
Dahua Smart IR technology can display images in an environment of low illuminance or a completely dark environment. According to the distance of the targets, the camera adjusts IR LEDs intensity automatically to display the details of the moving target.
Image Flip
For narrow and long scenes, Dahua image flip technology flips the image by 90°/270° to realize better surveillance in rotation mode.
Protection (IP67,wide voltage)
IP67: The camera passes a series of strict test on dust and soak. It has the dust-proof function, and the enclosure can works normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.
Technical Specification
Camera
| Image Sensor | 1/2.7″ 3Megapixel progressive CMOS |
| Effective Pixels | 2304 (H) × 1296 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.01 Lux @F2.0 |
| IR Distance | 30 m (98.4 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs Number | 1 |
| Pan/Tilt/Rotation Range | Horizontal: 0°–355° Vertical: 0°–78° Rotation: 0°–360° |
Lens
| Lens Type | Fixed | ||||
| Mount Type | M12 | ||||
| Focal Length | 2.8 mm 3.6 mm | ||||
| Max. Aperture | F2.0 F2.0 | ||||
| Field of View | 2.8 mm: Horizontal: 105° Vertical: 57° Diagonal: 125° 3.6 mm: Horizontal: 87° Vertical: 47° Diagonal: 104° | ||||
| Iris Type | Fixed aperture | ||||
| Close Focus Distance | 0.6 m (1.9 ft) 1.1 m (3.6 ft) | ||||
| Lens | Detect | Observe | Recognize | Identify | |
| DORI Distance | 2.8 mm | 37.3m (122.4 ft) | 14.9m (48.9 ft) | 7.5m ( 24.6 ft) | 3.7m (12.1 ft) |
| 3.6 mm | 64m (209.9 ft) | 25m (82.0 ft) | 12.8m (41.9 ft) | 6.4m (20.9 ft) | |
Video
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | Yes |
| Video Frame Rate | Main Stream: 2304 × 1296 (1 fps–20 fps) 1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
| Stream Capability | 2 streams |
| Resolution | 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3m (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 Kbps–6144 Kbps H.265: 12 Kbps–6912 Kbps |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Manual/Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart IR | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2304 × 1296 resolution.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Network
| Network | RJ-45 (10/100 Base-T) |
| Protocol | IPv4; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast |
| Interoperability | ONVIF (Profile S); CGI; P2P; Genetec |
| User/Host | 6 |
| Edge Storage | FTP; Dahua Cloud |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
Certification
| Certifications | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Power
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | <4.3 W |
Environment
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Ingress Protection | IP67 |
Structure
| Casing | Metal + plastic |
| Dimensions | 85.5 mm × Φ109 mm (3.4″ × Φ4.3″) |
| Net Weight | 0.24 kg (0.5 lb) |
| Gross Weight | 0.37 kg (0.8 lb) |
Ordering Information
| Type | Part Number | Description |
| 3MP Camera | DH-IPC-HDW1330T1P-S4 | 3MP Entry IR Fixed Focal Eyeball Netwok Camera,PAL |
| DH-IPC-HDW1330T1N-S4 | 3MP Entry IR Fixed Focal Eyeball Netwok Camera,NTSC | |
| Accessories (optional) | PFA136 | Junction Box |
| PFA130-E | Junction Box | |
| PFB203W | Wall Mount | |
| PFA106 | Mount Adapter | |
| PFB220C | Celling Mount | |
| PFA152-E | Pole Mount | |
| PFM321D | DC12V1A Power Adapter | |
| LR1002-1ET/1EC | Single-port Long Reach Ethernet over Coax Extender | |
| PFM900-E | Integrated Mount Tester |

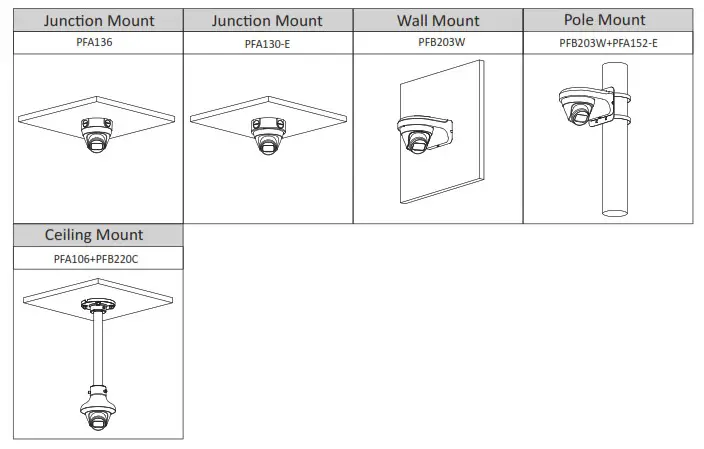

Optional:

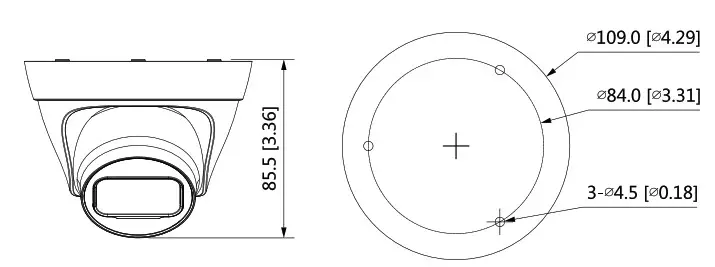

Dimensions (mm[inch])
© 2019 Dahua . All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
Rev 001.001
