Lenses:

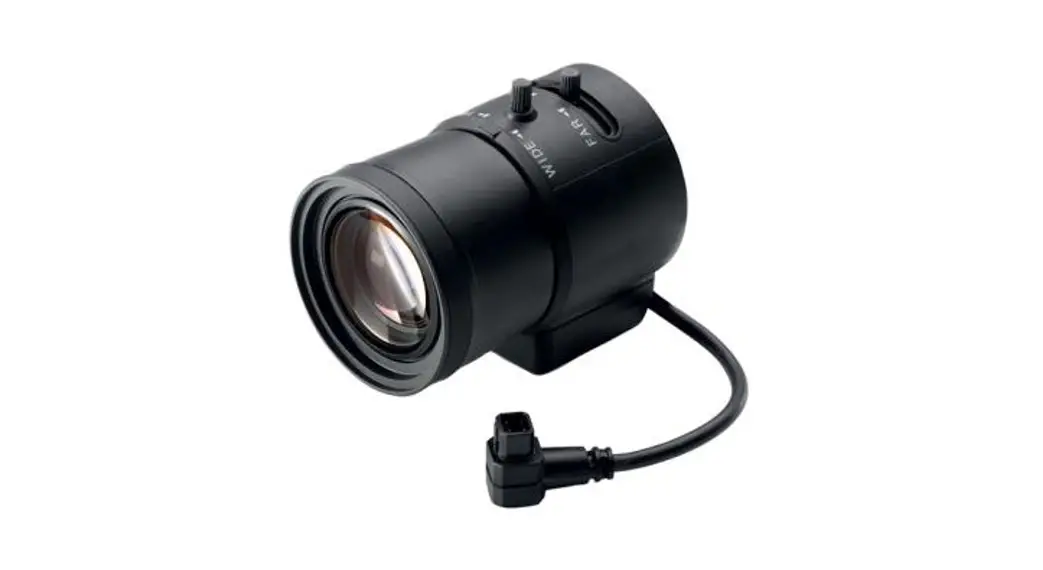

Megapixel Varifocal Quick Selection Guide

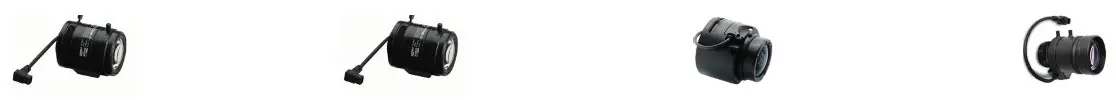

| Commercial type number | LV F -5005C -51803 | LVF-5005C -S0940 | LVF•5005C -54109 | LVF-5005N -51250 |
| Image format | 1/2.5-inch (Sensor diagonal 7.2 mm) | 1/2.5-inch (Sensor diagonal 7.2 mm) | 1/1.8-inch | 1/1.8-inch |
| Optical resolution | 5 Megapixets | 5 Megapixets | 5 Megapixels | 5 Megapixets |
| Zoom | ||||
| Focal length | 1.8 – 3 mm | 9 – 40 mm | 4.1 – 9 mm | 12 – 50 mm |
| Iris range (visible) | F1.8 to F7.4 | F1.5 to F7.4 | F1.6 to F8 | F1.8 to 1360 |
| IR iris range | same as visible | same as visible | same as visible | |
| Minimal object distance | 0.5 m (1.64 ft) | 2.5 m (8.2 ft) | 0.3 m (1 ft) | 0.8 m (2.63 ft) |
| Back focus length (values in air) | 8.3 mm (0.33 in) | 8.6 mm (wide): 13.19 mm (tele) | 12.72 mm (wide). 19.94 mm (tele) | 10.19 mm (wide). 10.12 mm (tele) |
| Flange back distance (values in air) | 12.5 mm | 12.5 mm | 12.5 mm | 17.526 mm |
| Lens mount | CS mount | CS mount | CS mount | C mount |
| Dimensions | ø 50 mm x 49.3 mm | ø 55 mm x 49.3 mm | ø 62.9 mm (excl. focus and zoom knobs) x 66.6 mm (excluding flange) | ø 52.4 mm x 89.3 mm |
| Weight | 63 g (0.134 lb) | 88 g (0.19 lb) | 130 g (0.29 lb) | 175 g (0.3861b) |
| Temperature range | -10° C to•50° C (+14° F to +122° F) | -10° C to+50° C (*14° F to *122° F) | -10° C to+50° C (+14° F to +122° F) | -10° C to•50° C (+14° F to +122° F) |
| IR corrected | yes | yes | yes | yes |
| Iris control | 4-pin SR-Iris | 4-pin SR-Iris | 4-pin SR-Iris | 4-pin. DC control |
| Zoom control | manual | manual | manual | manual |
| Focus control | manual | manual | manual | manual |
| Angle of view (HxV) | 4:3 mode: 115° x 99° Wide: 88° x 71° Tele 1/3-inch sensor 16:9: 109 x 82° Wide: 82° x 54° Tele 1/2.7-inch sensor 16:9: 116° x 84° Wide: 89° x 57° Tele | 4:3 mode: 36° x 27° Wide: 8.5° x 6.3° Tele 1/3-inch sensor 16:9: 33° x 17° Wide: 7.7° x 4.4° Tele 1/2.7-inch sensor 16:9: 37° x 20° Wide: 8.6° x 4.8° Tele | 4:3 mode: 100° x 74° Wide: 45° x 33° Tele 1/3-inch sensor 16:9: 73° x 41° Wide: 33° x 19° Tele 1/2.7-inch sensor 16:9: 80° x 44° Wide: 37° x 21° Tele 1/1.8-inch sensor 16:9: 101° x 56° Wide: 46° x 26° Tele | 4:3 mode: 133° x 25° Wide: 8° x 6° Tele 1/3-inch sensor 16:9: 24° x 14° Wide: 6° x 3° Tele 1/2.7-inch sensor 16:9: 27° x 16° Wide: 6.7° x 3.8° Tele 1/1.8-inch sensor 16:9: 33° x 19° Wide: 8.3° x 4.7° Tete |
| MTF on-axis (lp/mm) | NA | NA | NA | NA |
| MTF off-axis (Ip/mm) | NA | NA | NA | NA |
| Compatible cameras | DINION IP starlight 7000 HD DINION IP starlight 6000 HD DINION IP 5000 HD DINION IP 5000 MP DINION IP 4000 HD | DINION IP starlight 7000 HD DINION IP starlight 6000 HD DINION IP 5000 HD DINION IP 5000 MP DINION IP 4000 HD | DINION IP starlight 8000 MP DINION IP starlight 7000 HD DINION IP starlight 6000 HD DINION IP 5000 HD DINION IP 5000 MP DINION IP 4000 HD | DINION IP starlight 8000 MP DINION IP starlight 7000 HD DINION IP starlight 6000 HD DINION IP 5000 HD DINION IP 5000 MP DINION IP 4000 HD |

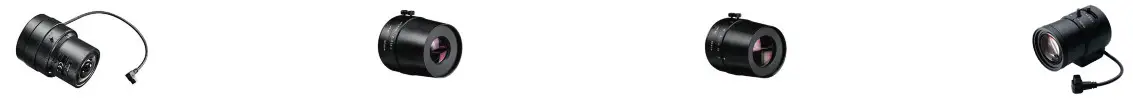

| Commercial type number | LVF•8008C•PO413 | LFF-8012C-D35 | LFF-8012C•1350 | LVF-5003C•P2713 |
| Image format | 1/1.8-inch | 2/3-inch | 2/3-inch | 1/2.7′ |
| Optical resolution | ||||
| Zoom | N.A | |||
| Focal length | 4 – 13 mm | 35 mm | 50 mm | 2.7-13 mm |
| Iris range (visible) | F1.5 to close | F1.8. F2.8. F4. F8. F16 | F2. F2.8. F4. F8. F16 | F1.4 to close |
| IR iris range | same as visible | same as visible | same as visible | |
| Minimal object distance | 0.3 m (1 ft) | 1 m (3.3 ft) | 2 m (6.56 ft) | 0.3 m (1 ft) |
| Back focus Length (values in air) | 10.209 mm | 14.3 mm (0.56 in) | ||
| Flange back distance (values in air) | 12.5 mm | 17.526 mm | 14.8 mm (0.58 in) | |
| Lens mount | CS-mount | C-mount | C-mount | CS-mount |
| Dimensions | ∅ 65 x 93 mm | ∅ 53 x 47 mm | ∅ 54 x 47 mm | ∅ 47 mm (excluding focus and zoom knobs and iris block) x 75.11 mm |
| Weight | 172 g (0.38 lb) | 149 g (0.33 Ib) | 155 g (0.34 Ib) | 87 g (0.19 lb) |
| Temperature range | -10° C to•50° C (•14° F to •122° F) | -10° C to•50° C (•14° F to •122° F) | -10° C to•50° C (•14° F to •122° F) | -10° C to•50° C (•14° F to •122° F) |
| IR corrected | yes | yes | yes | yes |
| Iris control | P-iris stepping motor (120 steps) | manual | manual | P-iris stepping motor |
| Zoom control | manual | Rotational ring and locking screw | ||
| Focus control | manual | manual | manual | Rotational ring and locking screw |
| Angle of view (HxV) | 12MP mode (4:3): Wide: 90° x 67°: Tete: 29° x 21° 4K UHD mode (16:9): Wide: 86° x 48°: Tete: 27° x 15° | 12MP mode (4:3): 9.8° x 7.4° 4K UHD mode (16:9): 9.4° x 5.3° | 12MP mode (4:3): 6.8° x 5.1° 4K UHD mode (16:9): 6.6° x 3.7° | 113-inch sensor (16:9) – Wide: 113 x 60° Tele: 24.3 x 13.8° 1/2.7-inch sensor (16:9) – Wide: 126 x 66° Tele: 26.7 x 15.2° 1/2.8 inch sensor (16:9) Wide: 122 x 64° Tele: 25.9 x 14.7° |
| MTF on-axis (Ip/rnm) | NA | NA | NA | NA |
| MTF off-axis (lp/mm) | NA | NA | NA | NA |
| Compatible cameras | DINION IP ultra 8000 MP DINION IP starlight 8000 MP | DINION IP ultra 8000 MP DINION IP starlight 8000 MP DINION IP starlight 7000 HD DINION IP starlight 6000 HD DINION IP 5000 HD DINION IP 5000 MP DINION IP 4000 HD | DINION IP ultra 8000 MP DINION IP starlight 8000 MP DINION IP starlight 7000 HD DINION IP starlight 6000 HD DINION IP 5000 HD DINION IP 5000 MP DINION IP 4000 HD | DINION IP starlight 6000 HD (1/2.8-inch) DINION IP starlight 7000 HD (1/2.8-inch) |
BT-VS/MKC version 03_EN July 2020
