Art.no. 11083-539
EAN 7320048150905

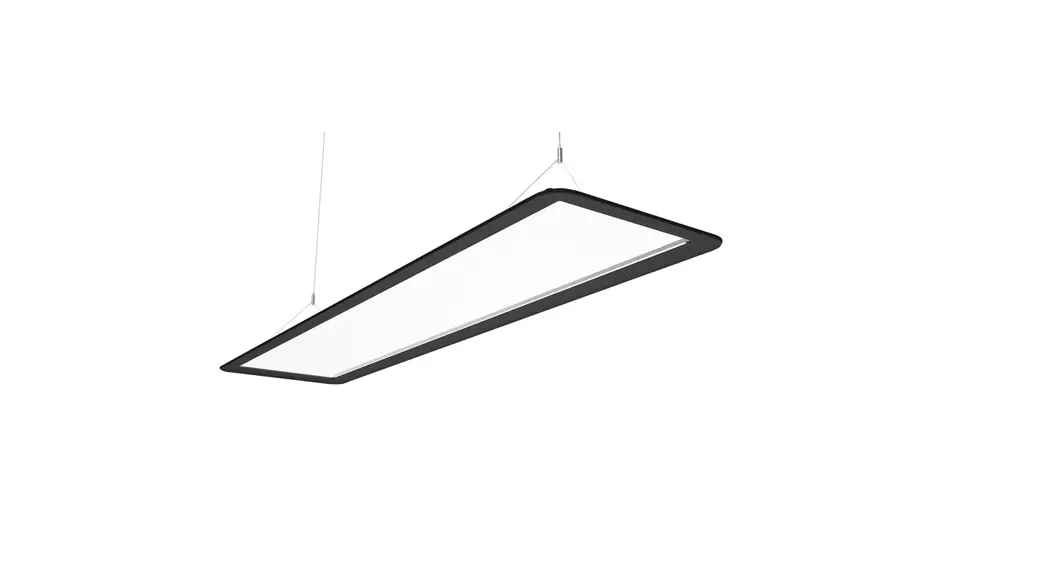

11083-539 Suspended Workplace Luminaire
A suspended workplace luminaire with side-emitting LEDs that produce direct/indirect light. Appareo combines uncompromising design w ith good ergonomics.
Installation
Two-point wire pendant. Wire suspension and friction lock included with luminaire. Balanced. External ballast box is mounted directly to ceiling or placed loosely above ceiling.
Connection
Luminaire is connected via remote LED driver, 230 V. Cable entry on top or through the knock-out in the side. Snap-in terminal block 5×2.5 mm2, 1 -phase throughwiring possible. The luminaire isequipped with a 1.5 m mains cable 3×0.75 mm2 between the luminaire and the external ballast box.
Design
Body in extruded aluminium and ends in cast metal. The luminaire is enamelled in black (RAL 9005) structured or white (RAL 9016) structured.
Louvre
Delta — microprism louvre in acrylic (PMMA) with good optical characteristics.
Dimming
DALI or e-Sense Active as standard. Luminaires with DALI/phase pulse control have CLO (Constant Light Output) as standard. e-Sense Active — PIR sensor with presence and daylight control via DALI.
Designed by Howl Design Studio
Miscellaneous Appareo has side-emitting LEDs, as a result the luminaire’s acrylic diffuser is completely transparent when switched off and provides an evenly luminated surface when lit. The distance between the luminaire and the ballast can be increased to 7 metres if required.Luminaires with Tunable White (2700-6500 K) are equipped with DALI device Type 8 driver. CLO (Constant Light Output) maintains the correct light from the luminaire for the duration of its rated life. Ra (CRI) 90 on request.
Appareo
40/60, e-Sen se Active

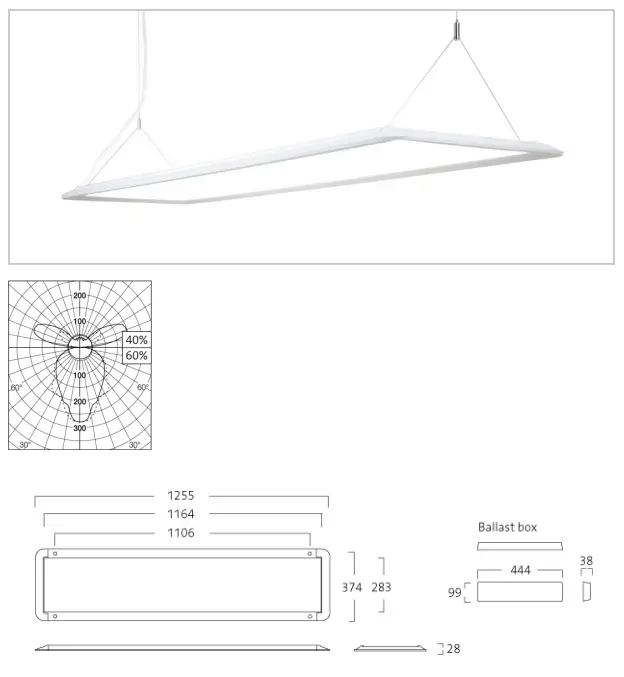

DESIGN
| Louvre Delta | Colour White |
| Weight, kg 4.7 | Length, mm 1255 |
| Width, mm 374 | Height, mm 28 |
TECHNICAL DATA
| Protective class 1 | IP rating 20 |
| M in. ambient temperature, °C -25 | M ax. ambient temperature, °C 25 |
| Light control e-Sen se Active | Brand of driver Ph ilip s |
LECTRICAL DATA
| M CB B10A 18 | M CB B16A 29 |
| M CB C10A 30 | M CB C16A 49 |
| Sw itch control, max no. 30 | A M Tru e |
| Pow er on last level Tru e | Corridor function Tru e |
| Stand by W 0.25 | Rated supply voltage, V 220-240 |
| M ains frequency, Hz 0, 50, 60 | Start W 38 |
| Average W 39.5 | End W 41 |
| Pow er factor, 100 % 0.99 | Surge protection CM , kV/kA 2 |
| Surge protection DM , kV/kA 1 | THD, % 8 |
| No of Dali Addresses 1 |
LIGHTING DATA
| Energy class C | Light distribution 40/60 |
| Lumen output 5336 | m/W 141 |
| Lumen maintenance L100 B50,h 50 000 | Lumen maintenance 50 000 h L100 |
| Lumen maintenance 75 000 h L89 | Lumen maintenance 100 000 h L86 |
| Lumen maintencance at 50 000 h 1 | LED driver, h/max failure % 100000/10 |
| CLO function on Tru e | CLO time, h 50 000 |
| SDCM 3 | CRI 80 |
| CCT, K 3000 |
