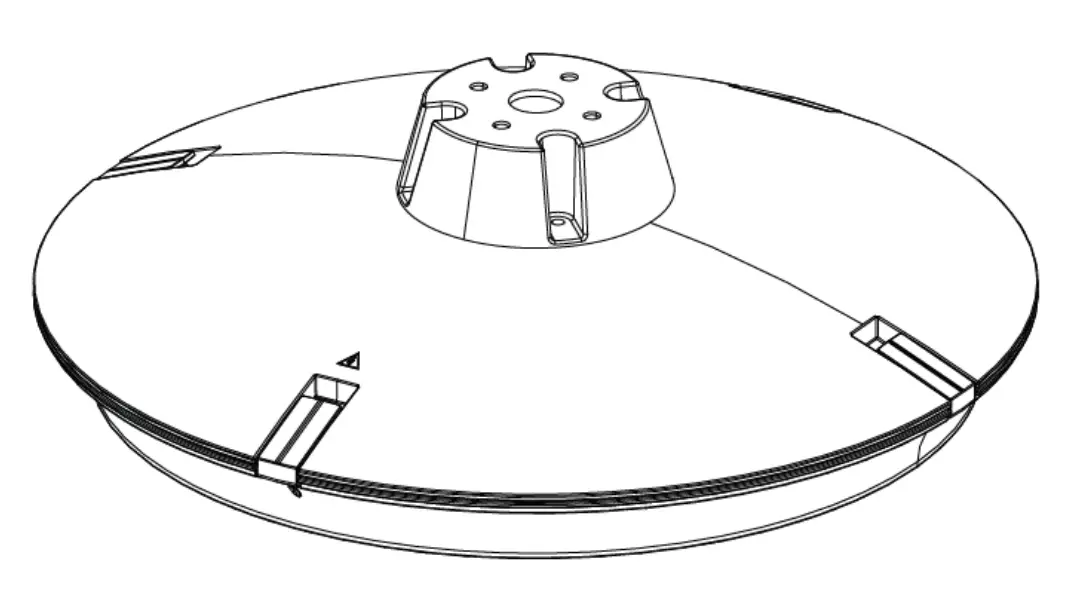

Schreder FLEXIA FG Maxi Suspended
| LED colour code | 722 | 727 | 730 | 830 | 740 | 840 | 757 | 957 |
| Light source energy efficiency class – High power | E | D | C | D | C | D | C | E |
| Light source energy efficiency class – Mid power | A | A |
Road side indicator label

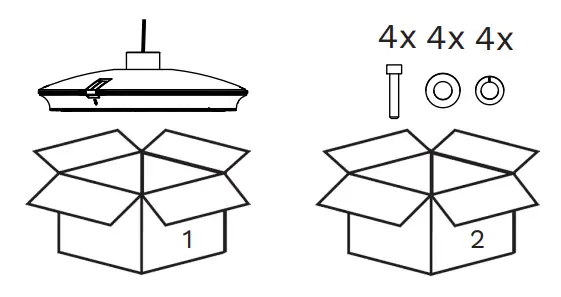

INSTALLATION INSTRUCTIONS

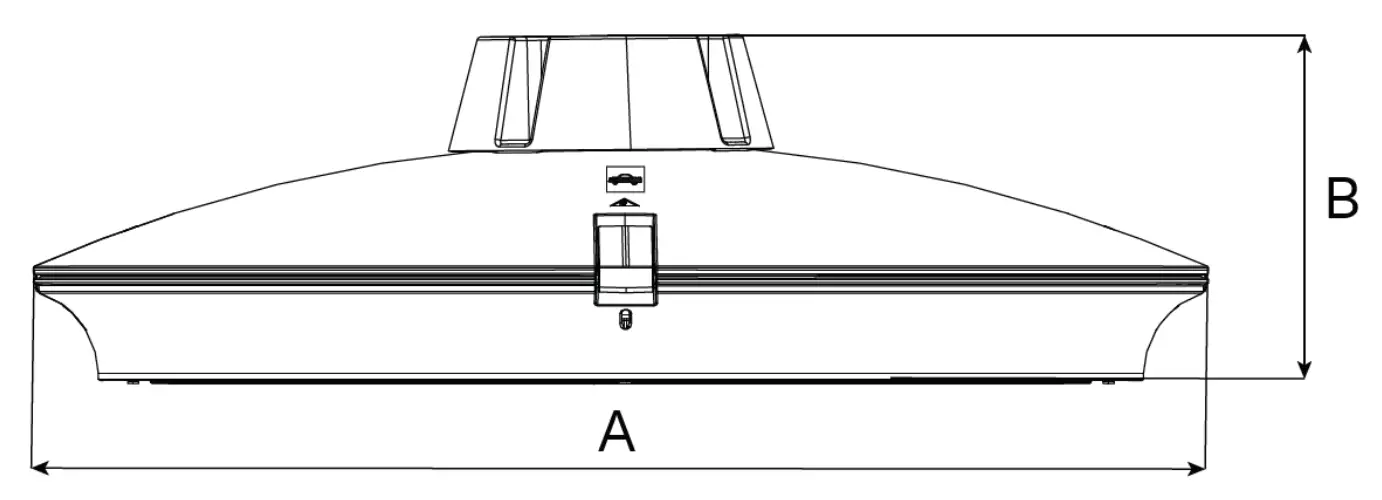

| A | Ø610 |
| B | 175 |
| Kg | 13,13 |
| Cd.S | 0,102 m² |
| Cs.S | 0,004 m² |
| Cl.S | 0,102 m² |

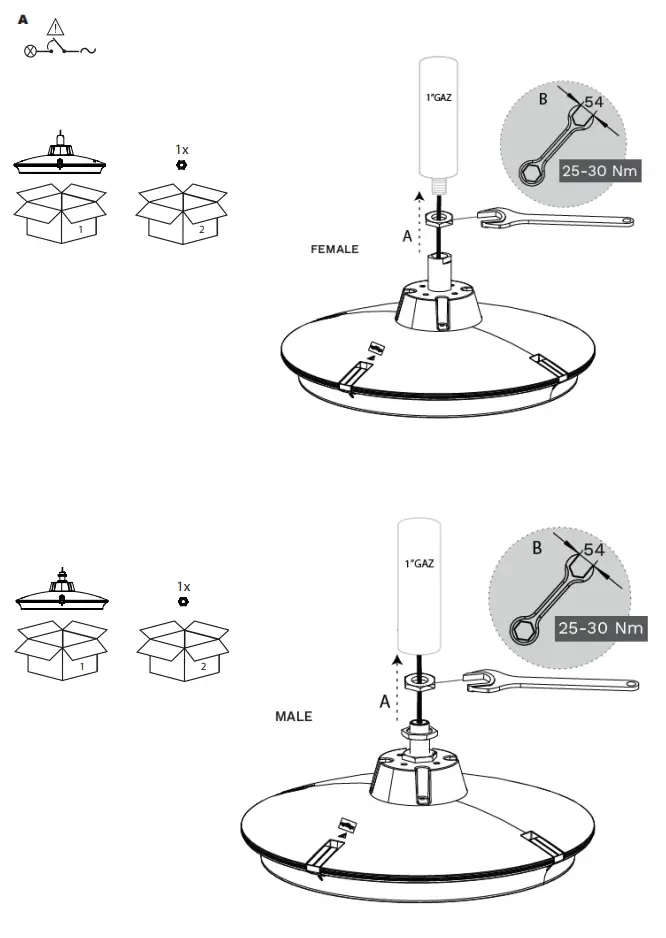

ON TUBE 1’’ GAZ

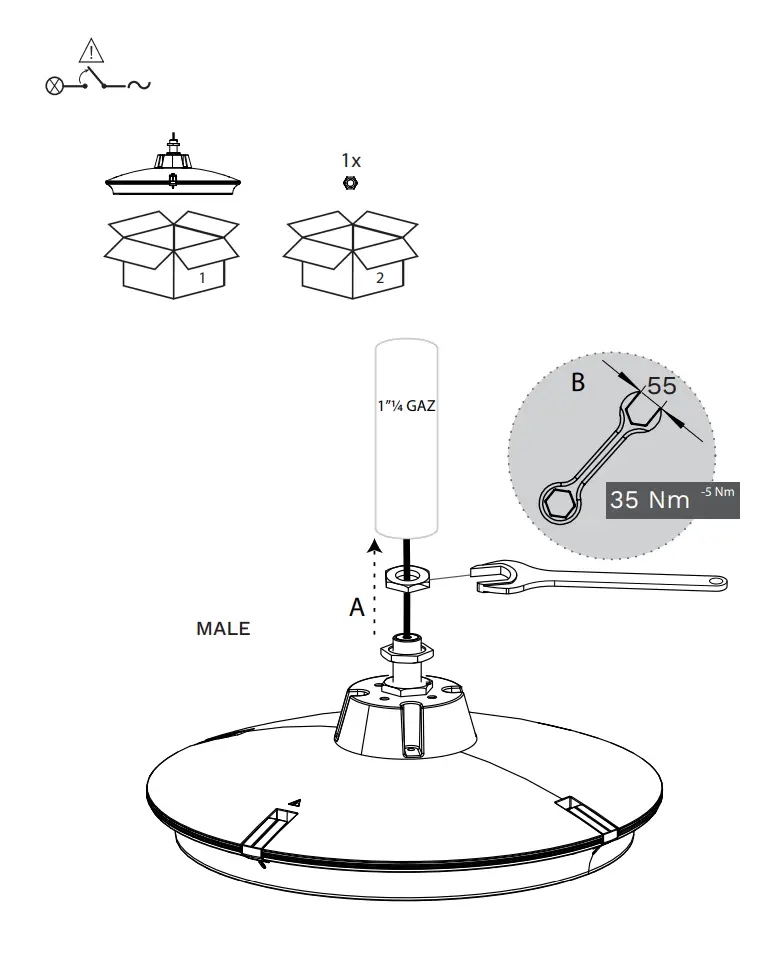

ON TUBE 1’’ ¼ GAZ

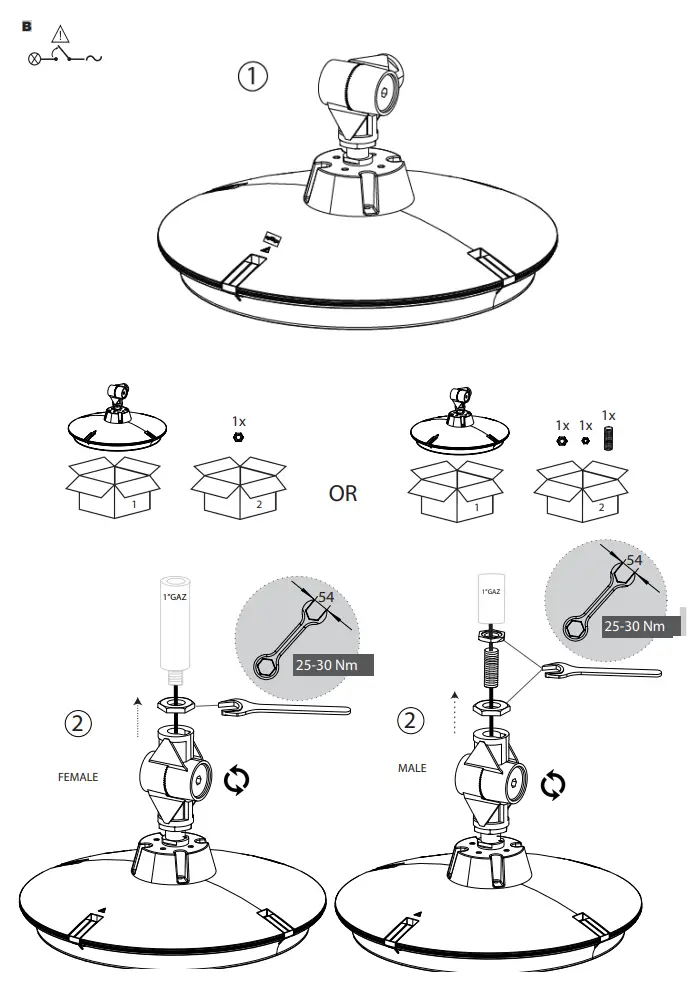

ON TUBE 1’’ ADJUSTABLE

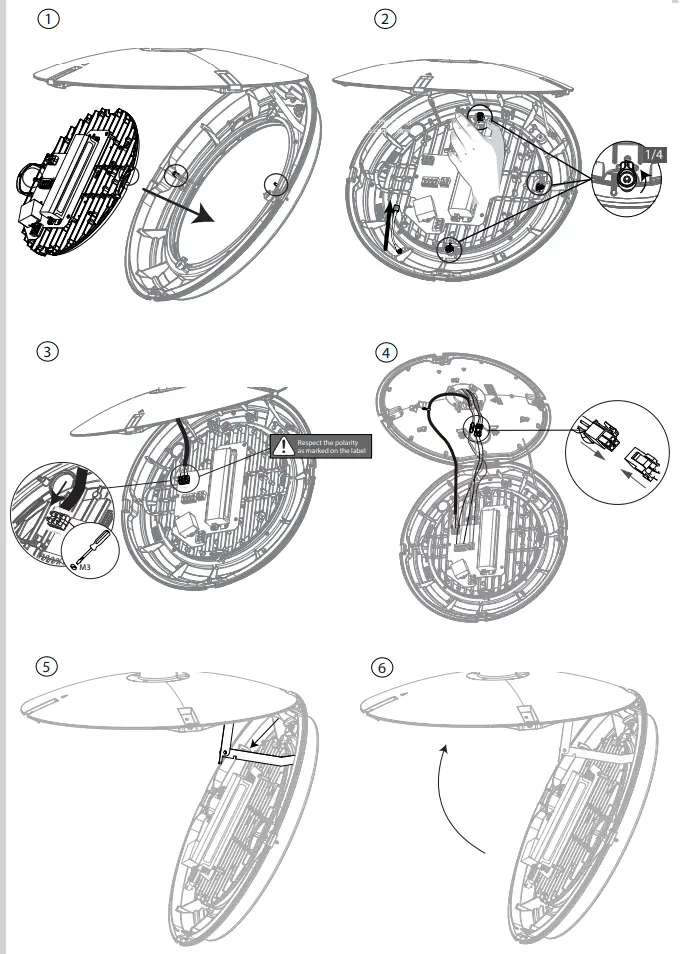

MAINTENANCE (CR-KIT EU)

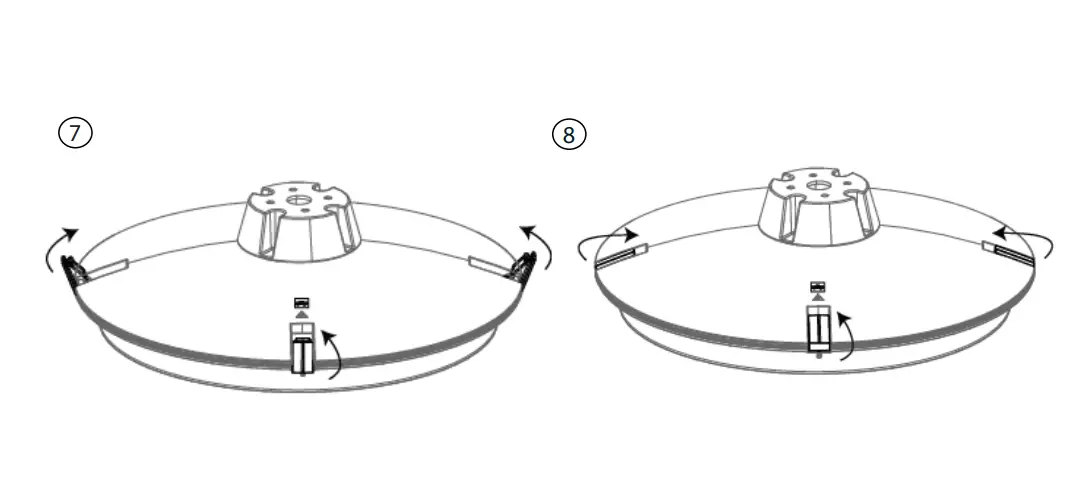

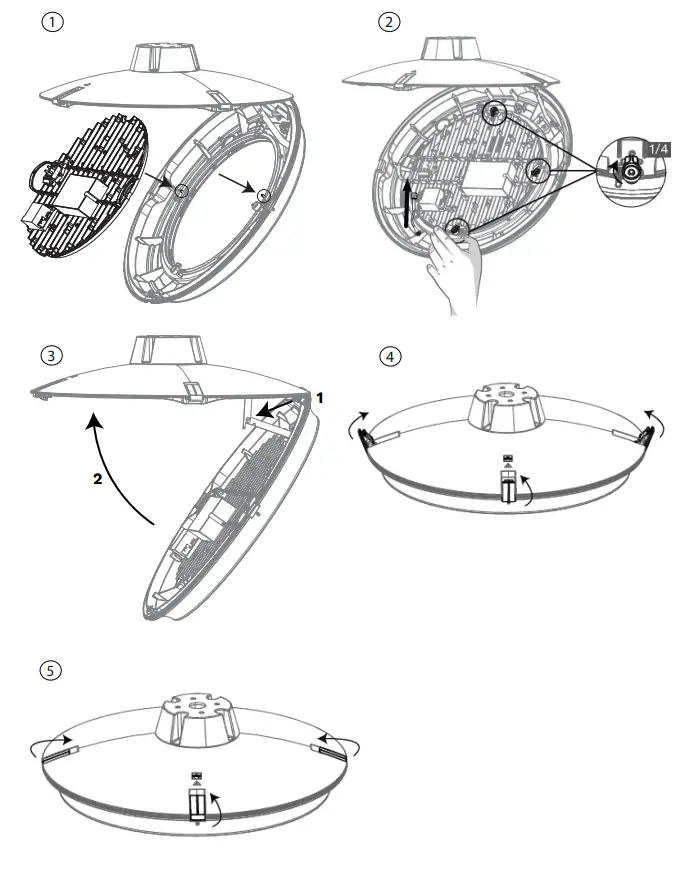

REASSEMBLING

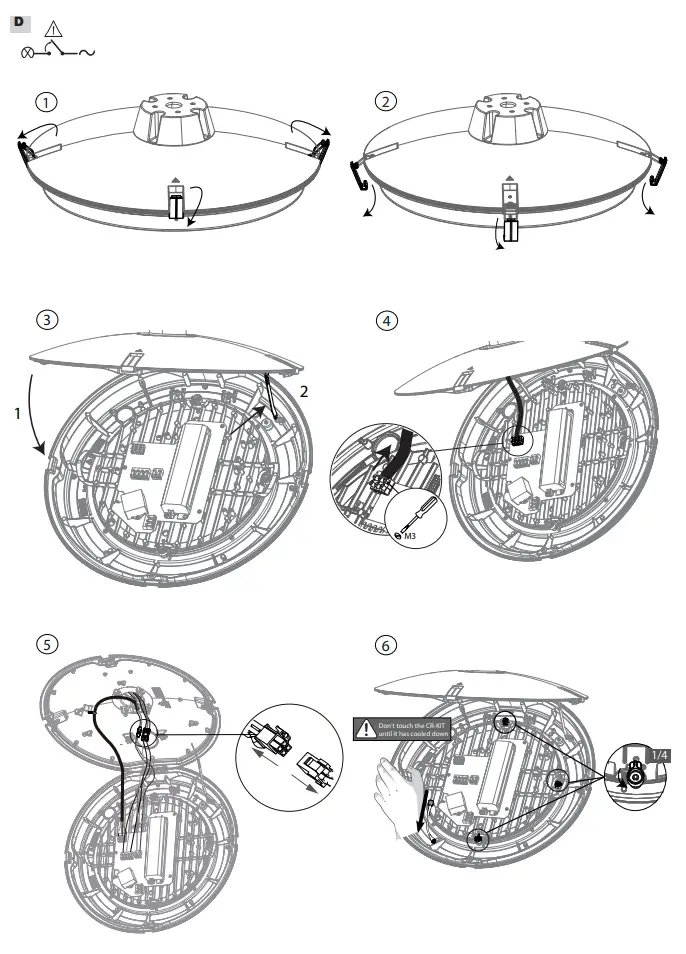

MAINTENANCE (CR-KIT CSA/UL)
REASSEMBLING

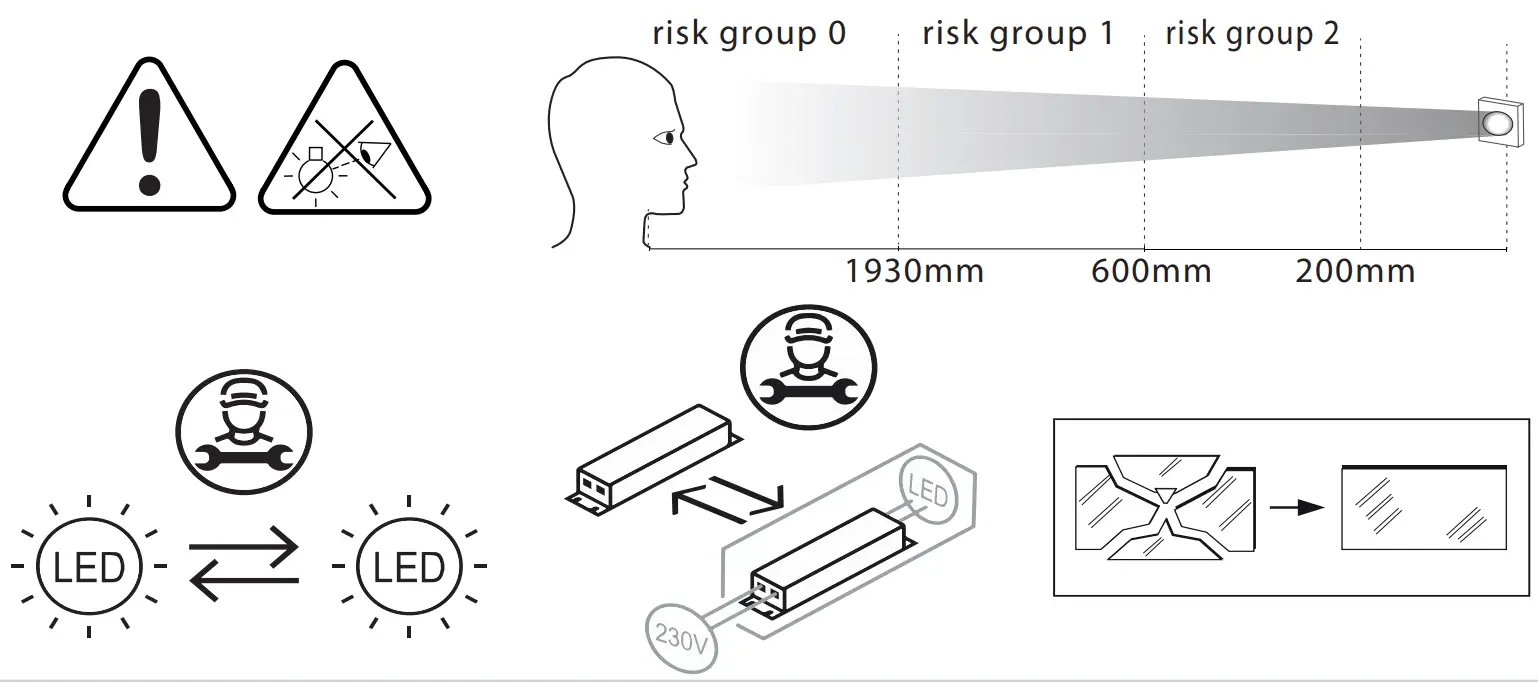

SAFETY INSTRUCTIONS
The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person. Always switch off the power prior to installation, maintenance or repair activities
RISK GROUP 2 – CAUTION! Hazardous optical radiation may be emitted from this product. Do not stare at the luminaire when operating as it may be harmful to the eyes. The luminaire should be positioned so that prolonged staring at the luminaire at a distance of less than 0.94m is not expected.
This product contains a light source of an energy efficiency class … – see table.
In case of PVC insulated mains cable, the ins- taller MUST ensure that the WHOLE cable is protected against climatic conditions, especially UV rays and rain, by making sure that the cable is contained inside the luminaire and pole
Y-connection: In case of damage to the wire, it has to be replaced only by the manufacturer, distributor or by an expert, to avoid risks.
Customer Support
01-80-792 | DOC-0018511 rev E | 02-2022 www.schreder.com
Copyright © Schréder S.A. 2022 – Executive Publisher: Stéphane Halleux – Schréder International Services S.A. – B-4000 Liége, Rue de Mons 3 (Belgium) – The information, descriptions and illustrations herein are only of an indicative nature and subject to changes without notice.
